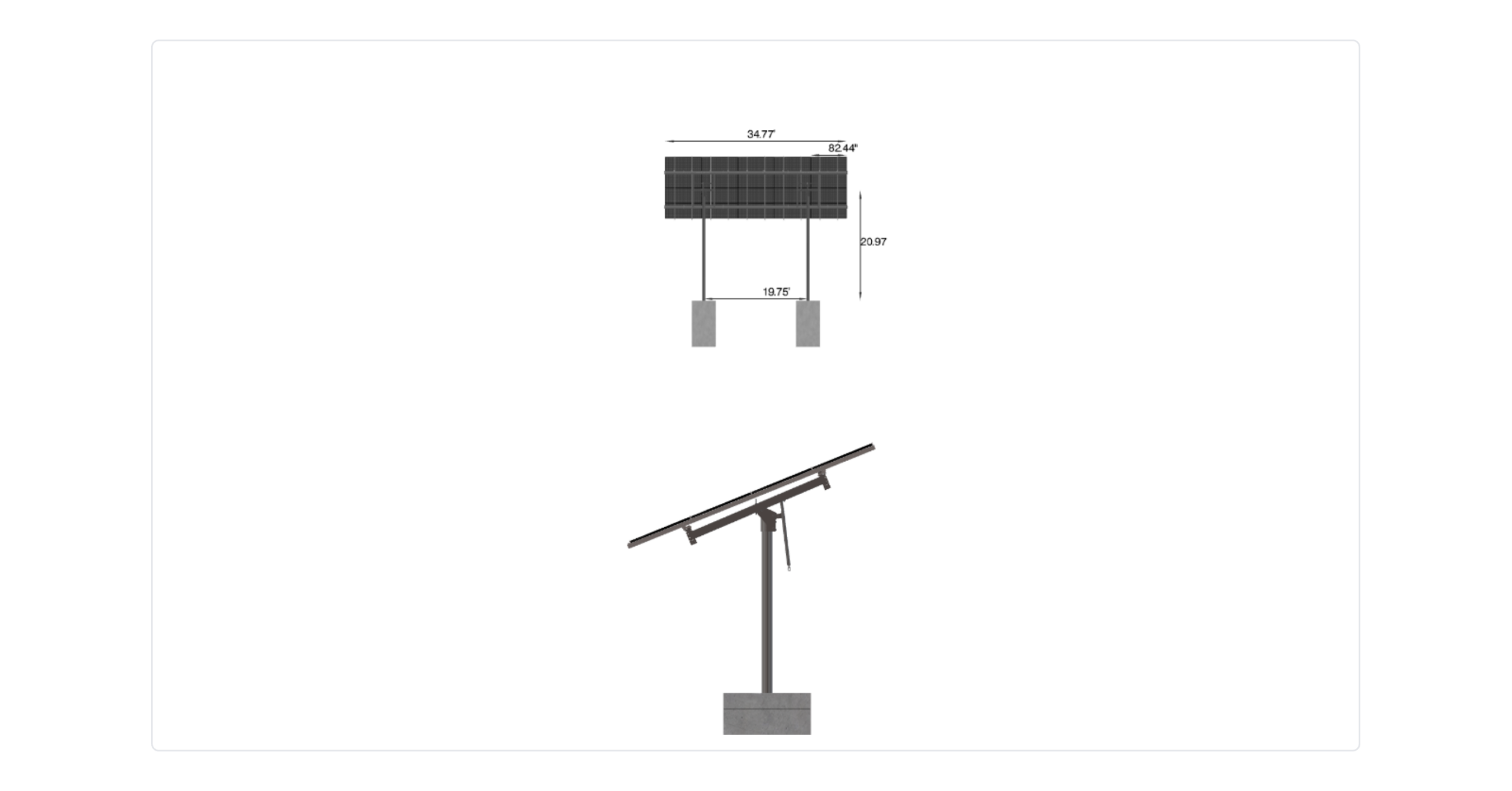

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.86 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 2P-19.75-10TOP-HD-45-L-4Hx5W-K9EG Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.86 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1705.3 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-19.75-10TOP-HD-45-L-4HX5W-K9EG

DUTY SIZE

HD

POLE SIZE

10IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

19.75

POLE HEIGHT

20.97

WING SPAN

45.00

MAX FOUNDATION DEPTH

8.75

TILT ANGLE

60.00

CANTILEVER

417.00

GROUND CLEARANCE

15.00

NO POLES

2.00

MODULE AREA

479.32

ARRAY WIDTH

34.77

ARRAY HEIGHT

13.79

RAIL LENGTH

165.44

MODULE LENGTH

82.44

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.75

GROUND TO TOP

26.94

PROJECTED PANEL HEIGHT

11.94

WIND SPEED OVERRIDE

135.00

SNOW LOAD OVERRIDE

390.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

DESIGNER NAME
DESIGNER EMAIL

CHRISTINA@MTSOLAR.US

DESIGNER PHONE
PROJECT ID

BEAR, VALLEY, WATER, -09042024-1CU

SITE ADDRESS

CXX9+XXX, BEAR, VALLEY, CA, 95223, USA

MODULE WIDTH

40.86

NUMBER ROWS

4.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SANDY, GRAVEL

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

TOTAL PRICE

9211.33

TOTAL WEIGHT

1705.30

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/e254dd02-d8b9-4729-997f-357bf85b4618.pdf

ID

8379.00
