Canadian Solar 395 6×4

$8,106.53

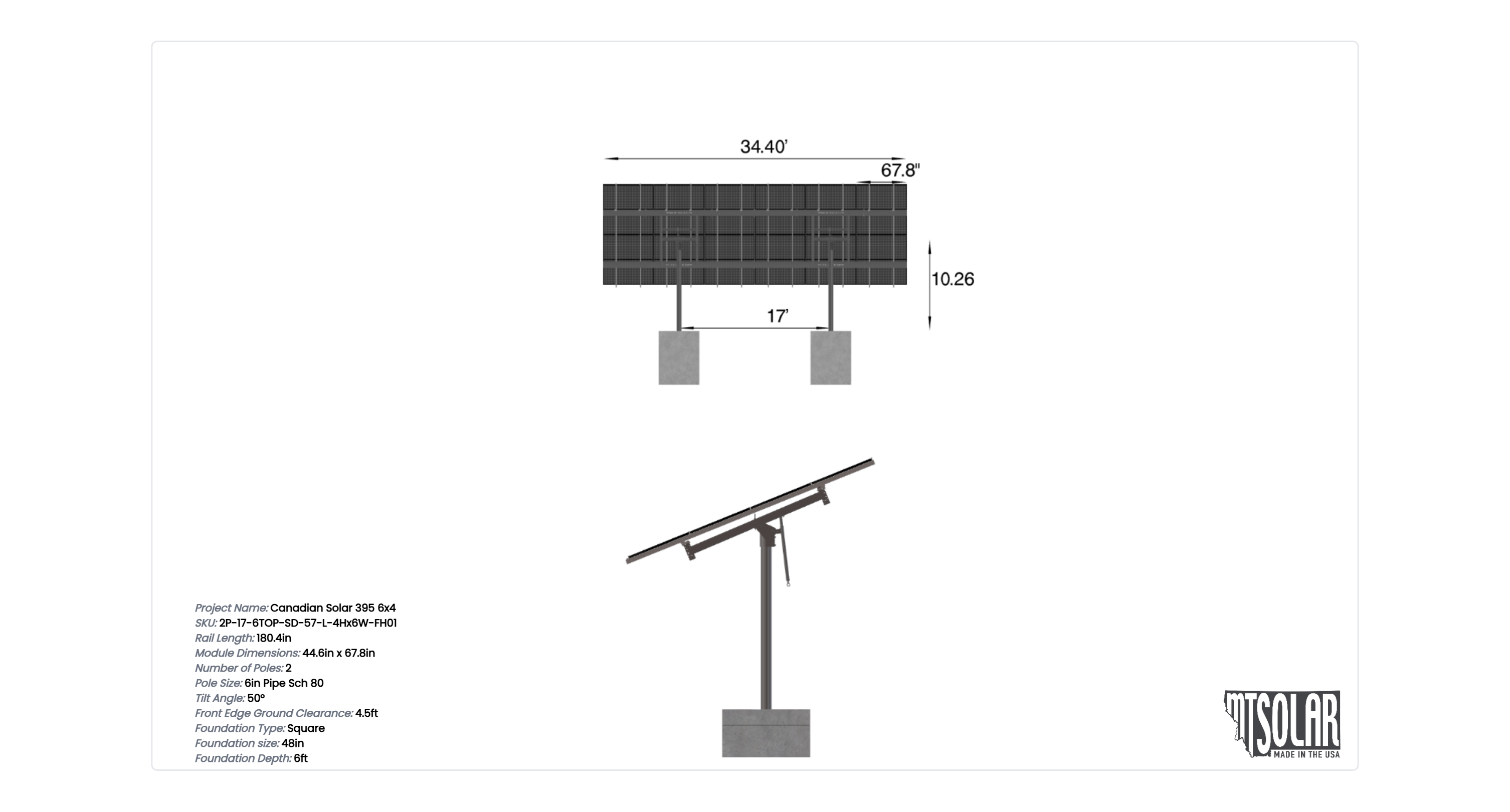

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 2P-17-6TOP-SD-57-L-4Hx6W-FH01 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1423.32 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-6TOP-SD-57-L-4HX6W-FH01

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

10.26

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

50.00

CANTILEVER

408.00

GROUND CLEARANCE

4.50

NO POLES

2.00

MODULE AREA

517.15

ARRAY WIDTH

34.40

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.00

GROUND TO TOP

16.02

PROJECTED PANEL HEIGHT

11.52

DESIGNER NAME

JACK, MCFARLAND

DESIGNER EMAIL

JACK@CFOCONSULTING.COM

DESIGNER PHONE

5034535172.00

PROJECT ID

CANADIAN, SOLAR, 395, 6X4

SITE ADDRESS

11012, INSIDE, NORTH, FORK, RD, POLEBRIDGE, MT, 59928, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

D

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

90.00

SNOW LOAD OVERRIDE

20.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

8106.53

TOTAL WEIGHT

1423.32

TOTAL PALLETS

2.00
