Carlton Neel

$10,374.08

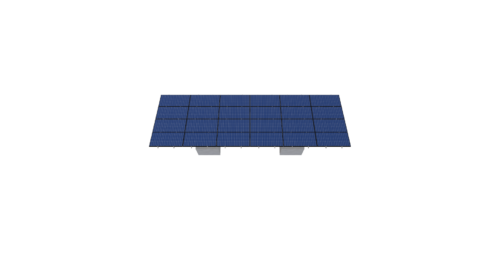

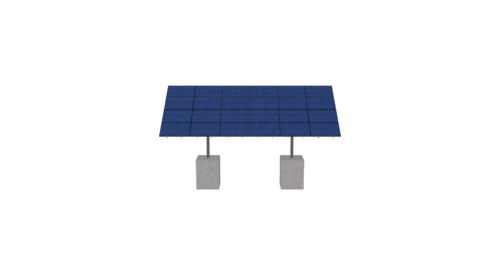

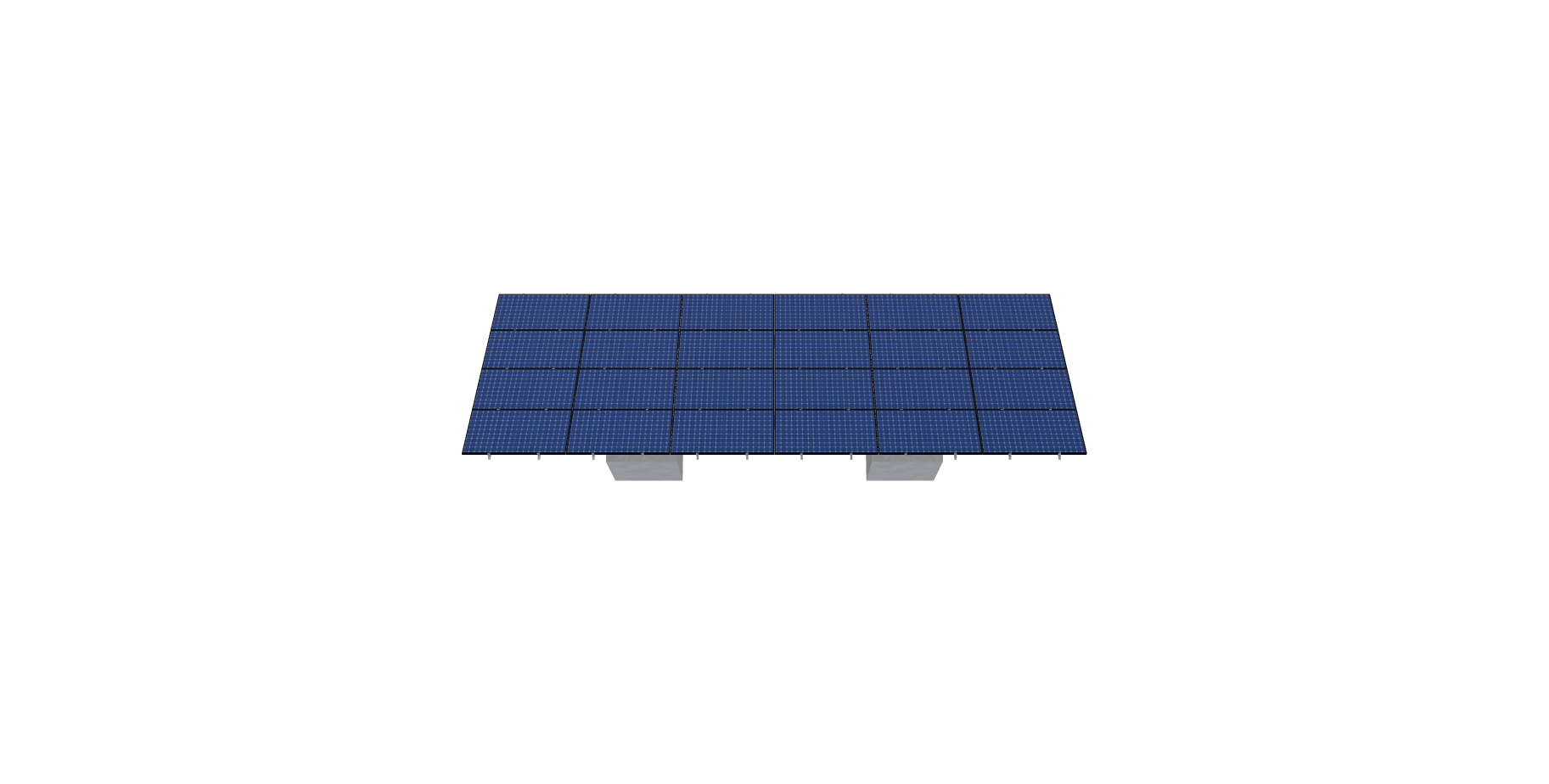

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 2P-17-8TOP-XD-57-L-4Hx6W-STRUTS-I9LF Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1916.0199999999998 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-8TOP-XD-57-L-4HX6W-STRUTS-I9LF

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

9.31

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

35.00

CANTILEVER

408.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

517.15

ARRAY WIDTH

34.40

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.00

GROUND TO TOP

13.57

PROJECTED PANEL HEIGHT

8.53

PROJECT ID

CARLTON, NEEL

SITE ADDRESS

256, WILSON, RD, SARANAC, NY, 12981, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

85.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

TOTAL PRICE

10374.08

TOTAL WEIGHT

1916.02

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/8ab26ec5-4576-42a2-bc7b-ba84da774950.pdf

ID

7335.00
