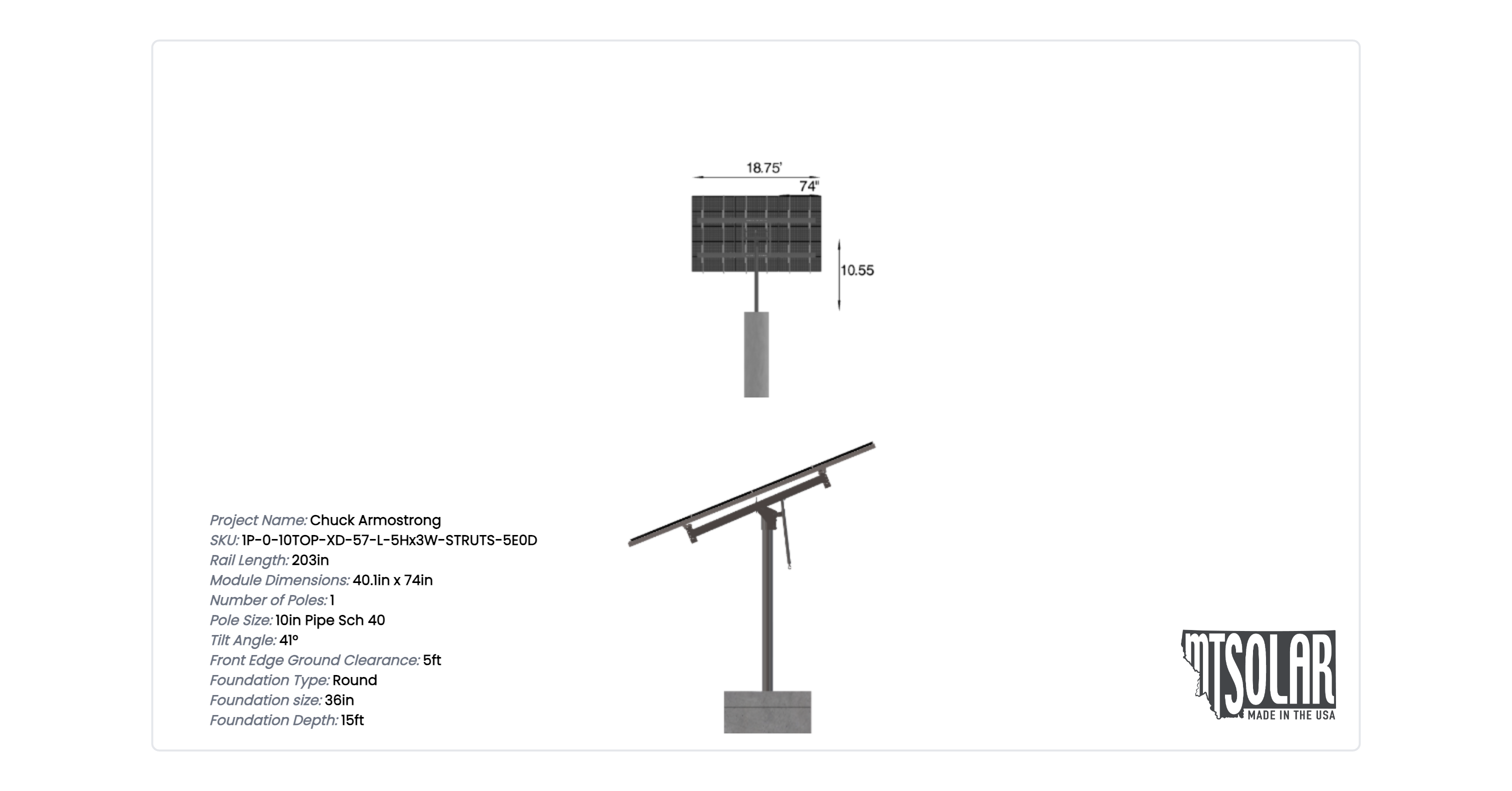

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 40.1 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

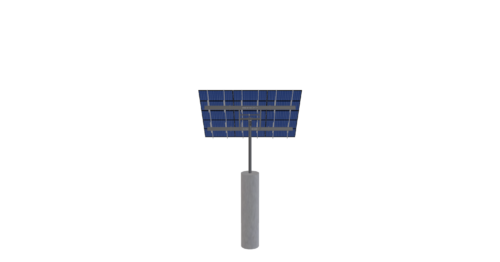

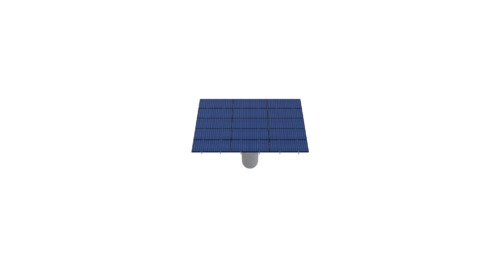

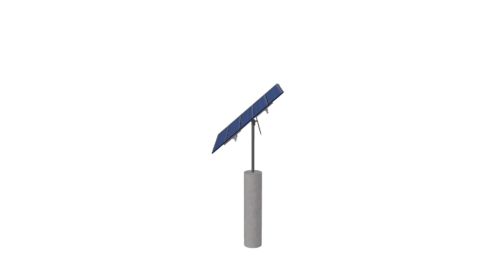

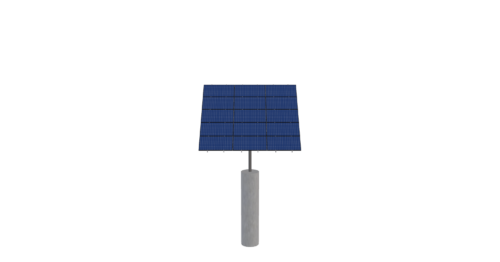

See 3D Model Here
Chuck Armostrong
$5,746.39
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 40.1 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1148.8700000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-XD-57-L-5HX3W-STRUTS-5E0D |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.55 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 15.00 |
| TILT ANGLE | 41.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 317.19 |
| ARRAY WIDTH | 18.75 |
| ARRAY HEIGHT | 16.92 |
| RAIL LENGTH | 203.00 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 16.03 |
| PROJECTED PANEL HEIGHT | 10.96 |
| PROJECT ID | CHUCK, ARMOSTRONG |
| SITE ADDRESS | 3950, POMPEY, CENTER, RD, MANLIUS, NY, 13104, USA |
| MODULE WIDTH | 40.10 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 135.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 5746.39 |
| TOTAL WEIGHT | 1148.87 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/cfdcacfe-6954-4c0d-868f-b880d0aeaeff.pdf |
|
| ID | 3617.00 |
| 3D Solar link |
