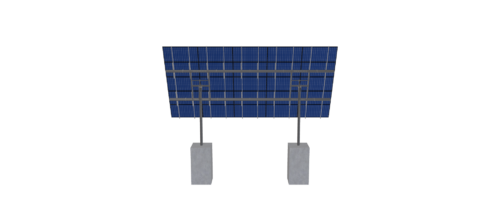

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91 inches by 46 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Chuck Olson
$10,343.63
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91 inches by 46 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2081.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-10TOP-HD-45-L-5HX5W-43AF |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 13.78 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 742.71 |
| ARRAY WIDTH | 38.33 |
| ARRAY HEIGHT | 19.38 |
| RAIL LENGTH | 232.50 |
| MODULE LENGTH | 91.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 22.56 |
| PROJECTED PANEL HEIGHT | 17.56 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | TYLER, STEPHENSON |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7156851144.00 |
| PROJECT ID | CHUCK, OLSON |
| SITE ADDRESS | IRON, RIVER, WI, 54847, USA |
| MODULE WIDTH | 46.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10343.63 |
| TOTAL WEIGHT | 2081.38 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/56bd04d3-04be-4c0d-9d4d-c5c3d54ab592.pdf |
|
| ID | 8398.00 |
| 3D Solar link |
