This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.4 inches by 44.6 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

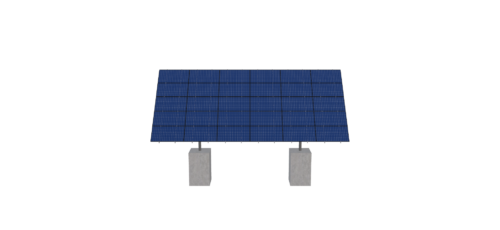

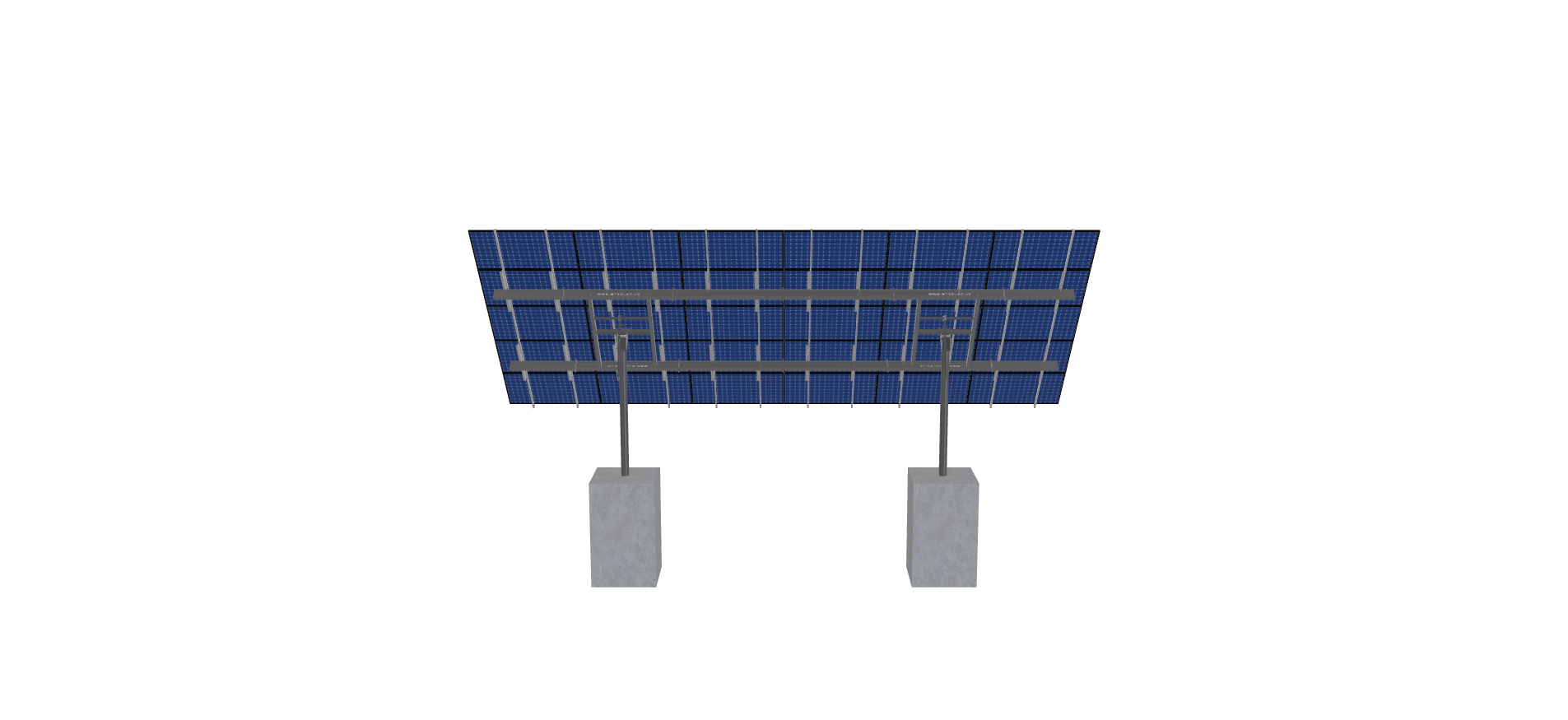

See 3D Model Here
Church of the Cross
$10,837.35
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.4 inches by 44.6 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 2192.82 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-8TOP-HD-57-L-5HX6W-07JH |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 10.20 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 7.50 |
TILT ANGLE | 50.00 |
CANTILEVER | 474.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 2.00 |
MODULE AREA | 783.61 |
ARRAY WIDTH | 41.70 |
ARRAY HEIGHT | 18.79 |
RAIL LENGTH | 225.50 |
MODULE LENGTH | 82.40 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 39.50 |
GROUND TO TOP | 17.32 |
PROJECTED PANEL HEIGHT | 14.24 |
DESIGNER NAME | SIMON, EDDY |
DESIGNER EMAIL | |
DESIGNER PHONE | |
PROJECT ID | CHURCH, OF, THE, CROSS |
SITE ADDRESS | 5064, CO, RD, 13, NISSWA, MN, 56468, USA |
MODULE WIDTH | 44.60 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 115.00 |
SNOW LOAD OVERRIDE | 60.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 10837.35 |
TOTAL WEIGHT | 2192.82 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/389cf6b7-e9a1-4c78-b01c-db2b7a744482.pdf |
|
ID | 7744.00 |
3D Solar link |
