CIBSCD Operations Facility-v1

$8,164.82

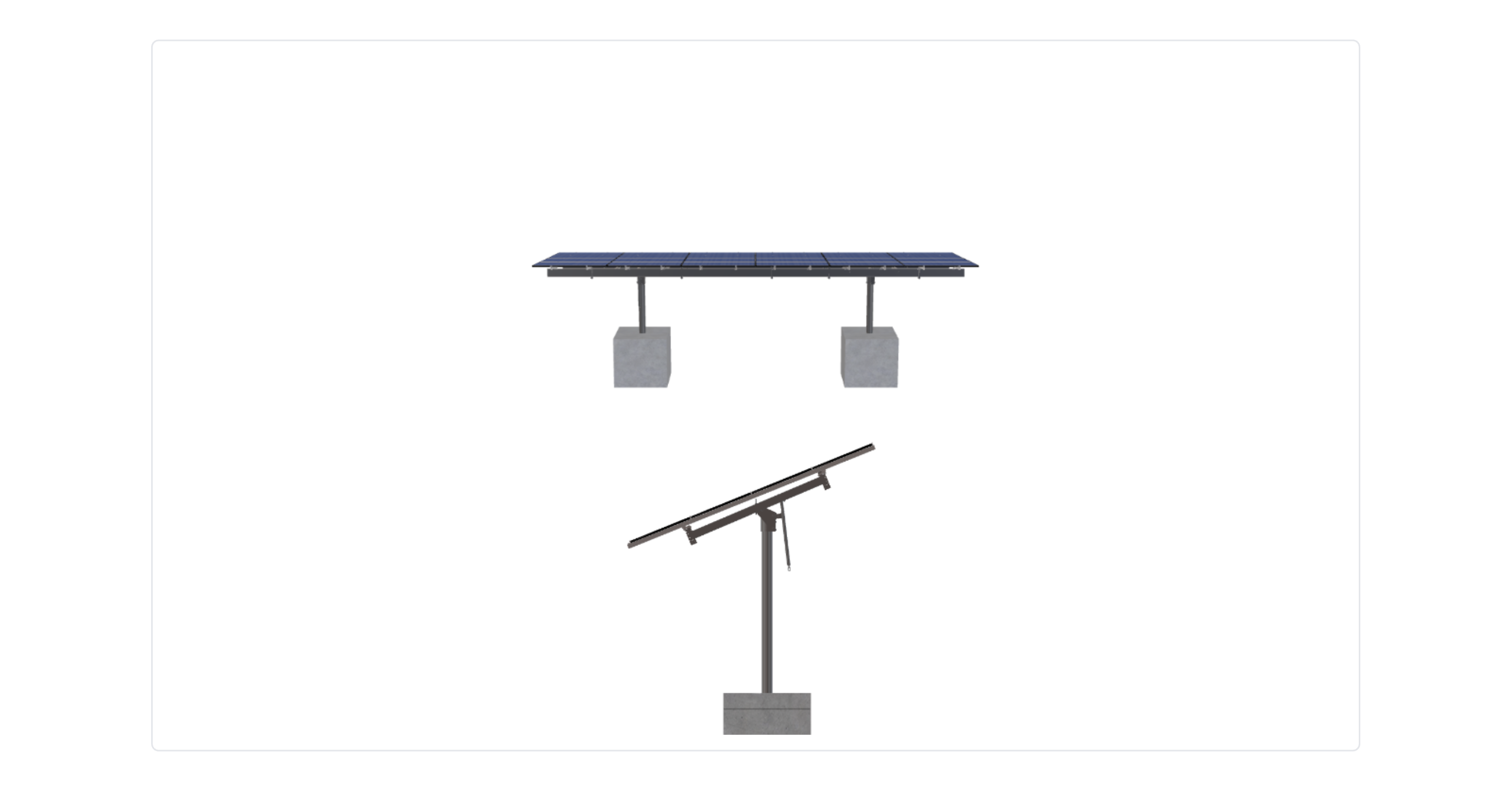

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 39 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-19.75-6TOP-SD-45-L-4Hx6W-L270 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 39 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1436.82 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-19.75-6TOP-SD-45-L-4HX6W-L270

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

19.75

POLE HEIGHT

5.57

WING SPAN

45.00

MAX FOUNDATION DEPTH

4.25

TILT ANGLE

5.00

CANTILEVER

417.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

480.58

ARRAY WIDTH

36.50

ARRAY HEIGHT

13.17

RAIL LENGTH

158.00

MODULE LENGTH

72.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.75

GROUND TO TOP

6.14

PROJECTED PANEL HEIGHT

1.13

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

CIBSCD, OPERATIONS, FACILITY-V1

SITE ADDRESS

353, SANTA, MONICA, DR, OXNARD, CA, 93035, USA

MODULE WIDTH

39.00

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

D

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

8164.82

TOTAL WEIGHT

1436.82

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/2d53b073-09c3-4e86-9c12-b55830ce92fa.pdf

ID

7016.00
