Crooks-5×6-CU-A

$9,410.21

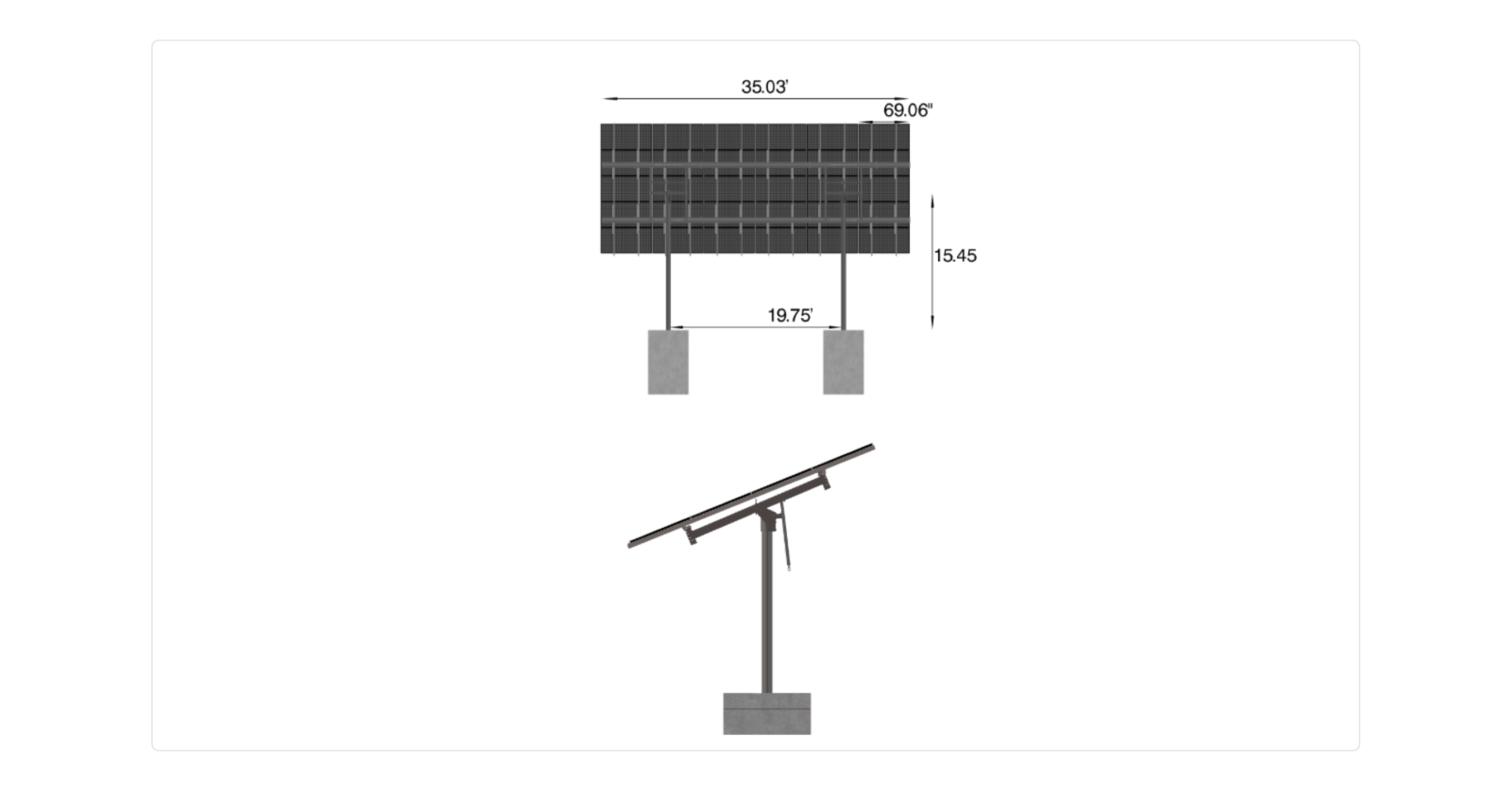

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.06 inches by 43.15 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

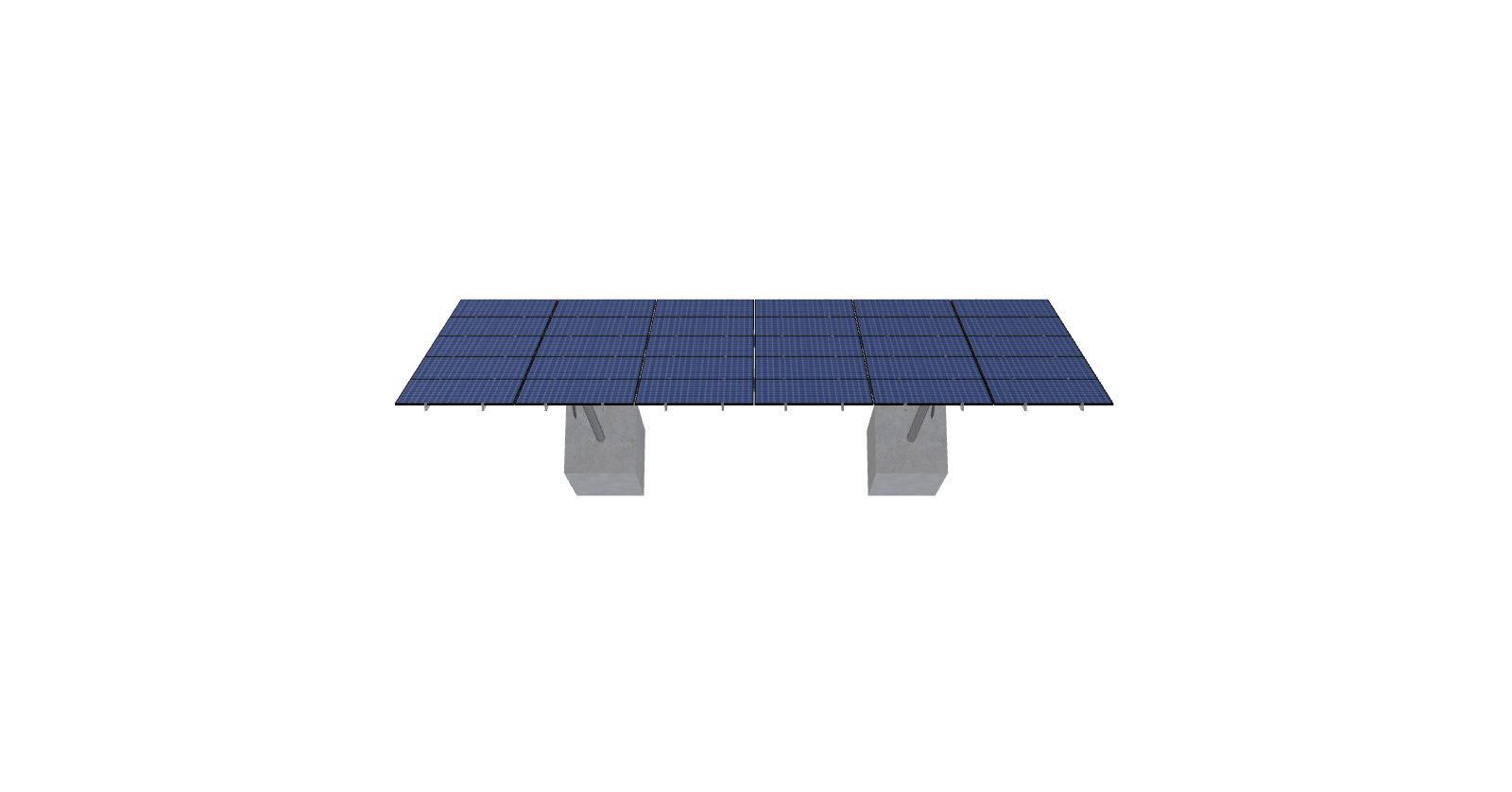

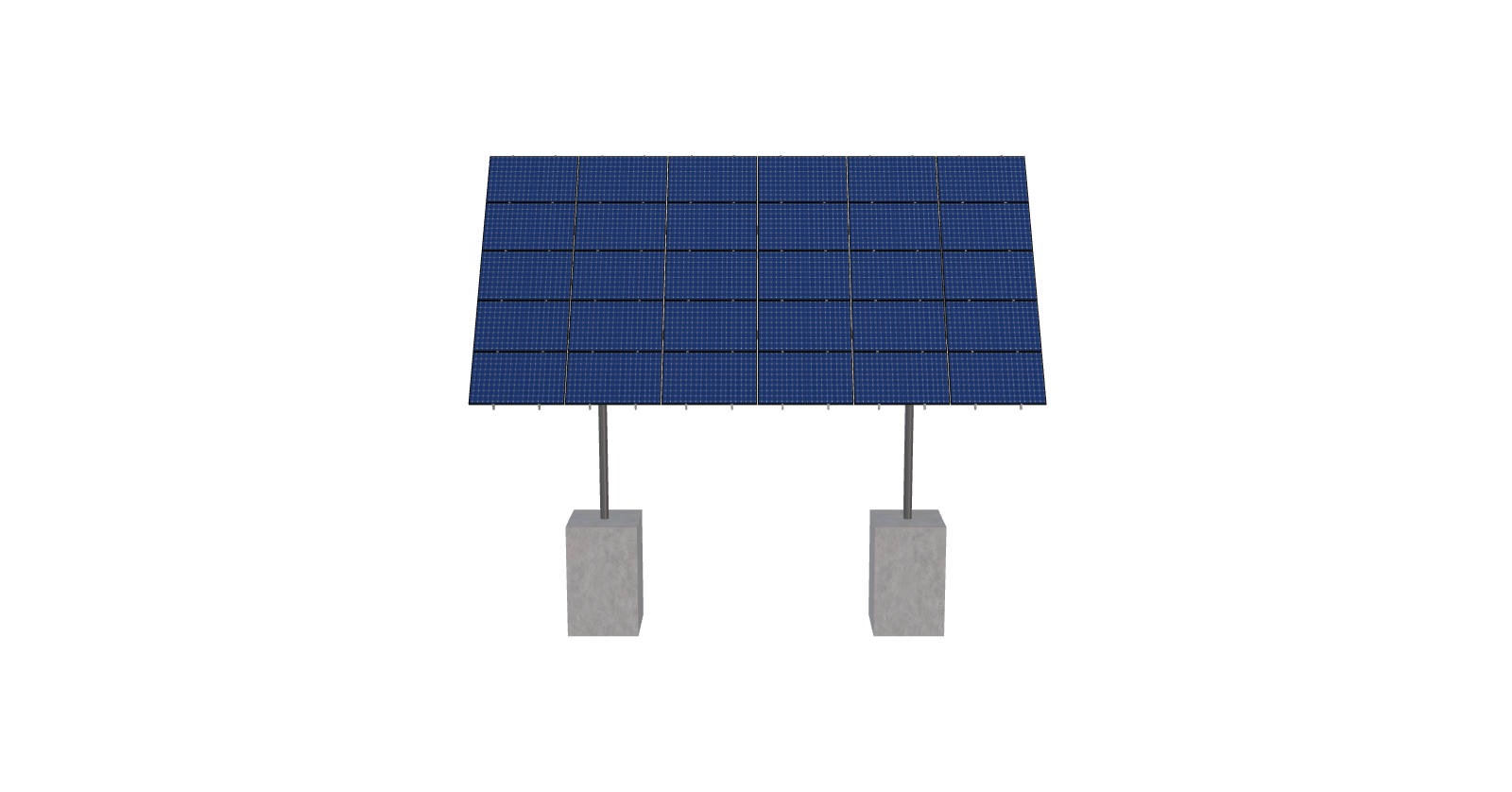

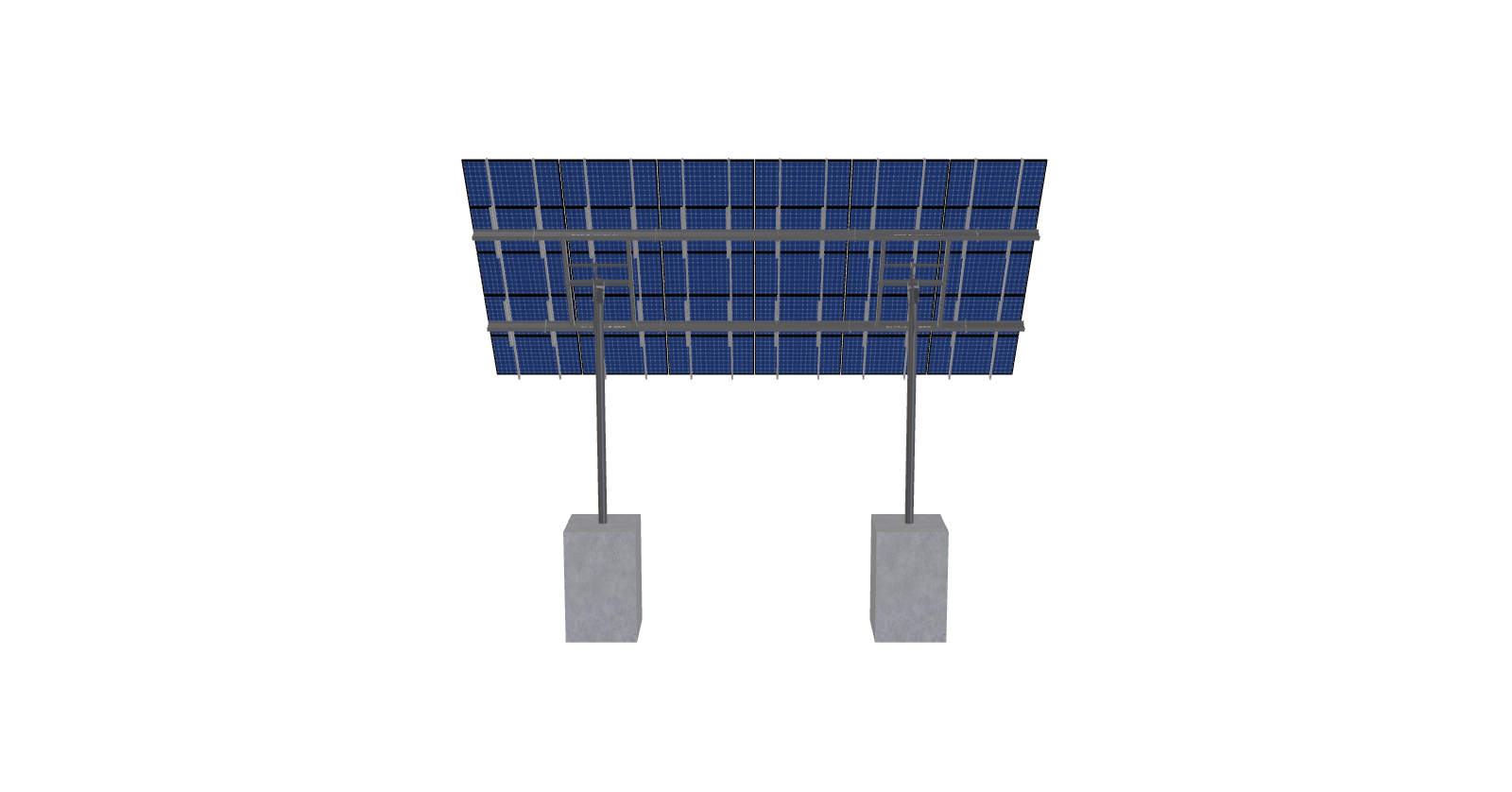

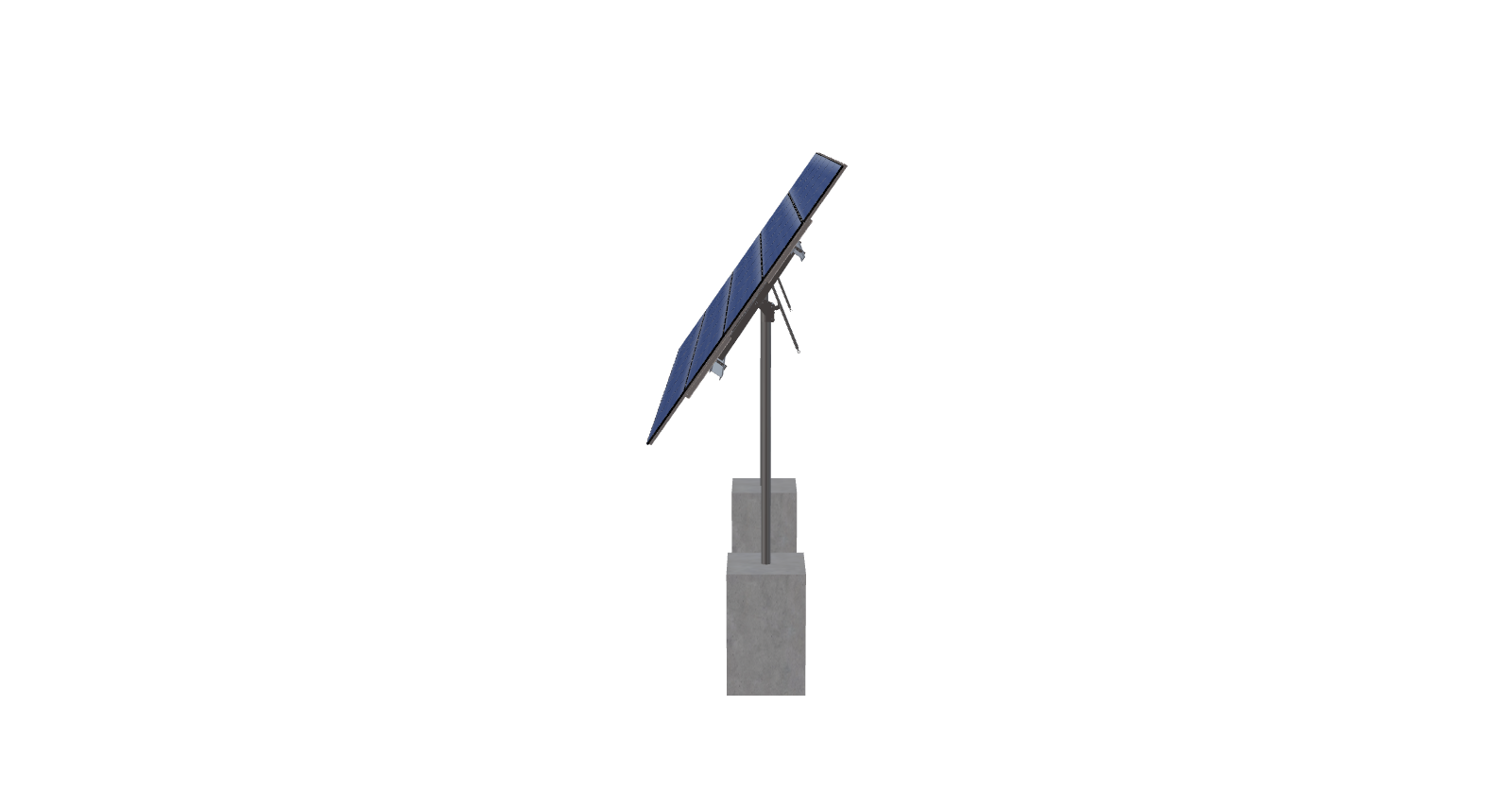

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-19.75-8TOP-SD-45-L-5Hx6W-3HE4 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.06 inches by 43.15 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1852.1399999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-19.75-8TOP-SD-45-L-5HX6W-3HE4

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

19.75

POLE HEIGHT

15.45

WING SPAN

45.00

MAX FOUNDATION DEPTH

7.25

TILT ANGLE

55.00

CANTILEVER

417.00

GROUND CLEARANCE

8.00

NO POLES

2.00

MODULE AREA

637.11

ARRAY WIDTH

35.03

ARRAY HEIGHT

18.19

RAIL LENGTH

218.25

MODULE LENGTH

69.06

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.75

GROUND TO TOP

22.81

PROJECTED PANEL HEIGHT

14.73

PROJECT ID

CROOKS-5X6-CU-A

SITE ADDRESS

62728, LEAPING, HORSE, LN, ST, IGNATIUS, MT, 59865, USA

MODULE WIDTH

43.15

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

100.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

9410.21

TOTAL WEIGHT

1852.14

TOTAL PALLETS

2.00
