Curvin Martin 5×7 – V1Jb

$15,557.28

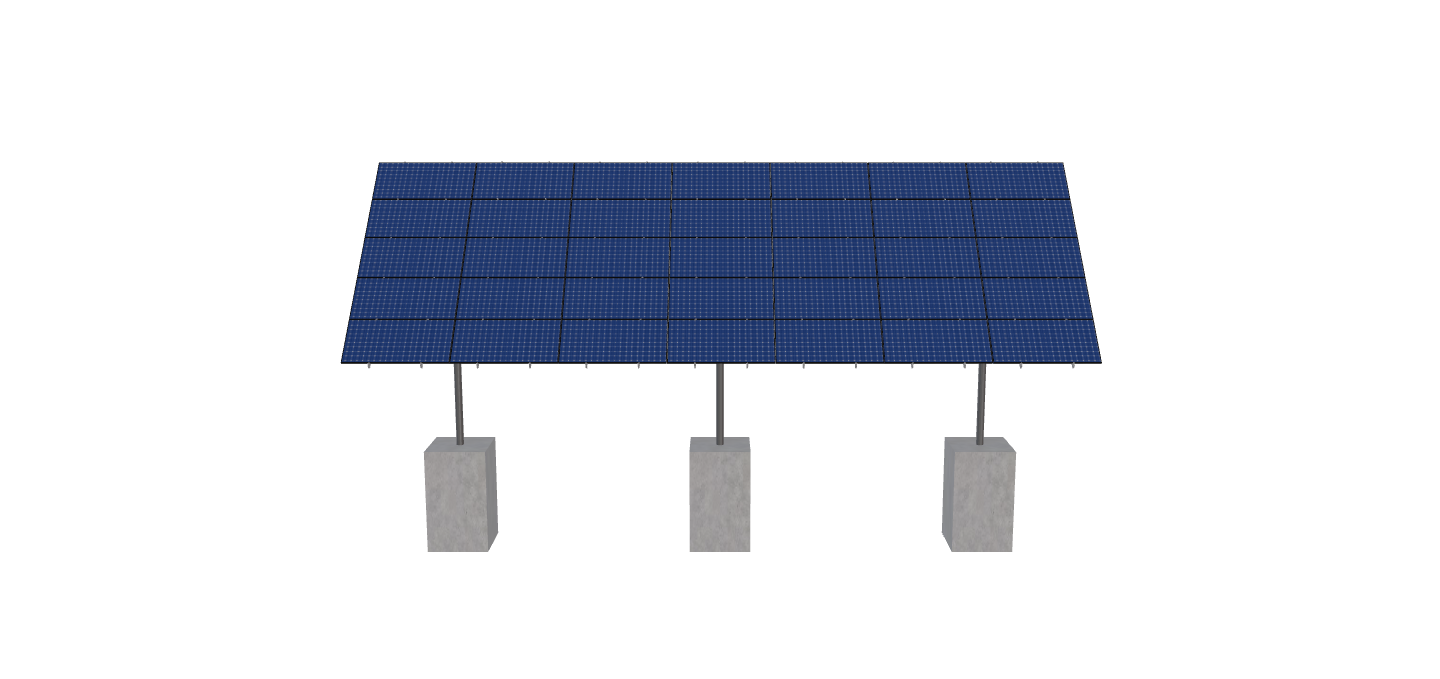

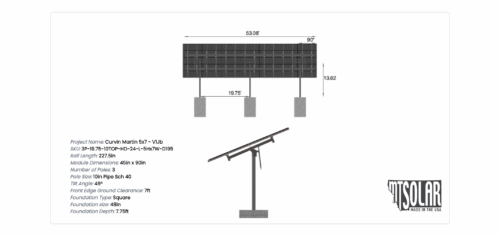

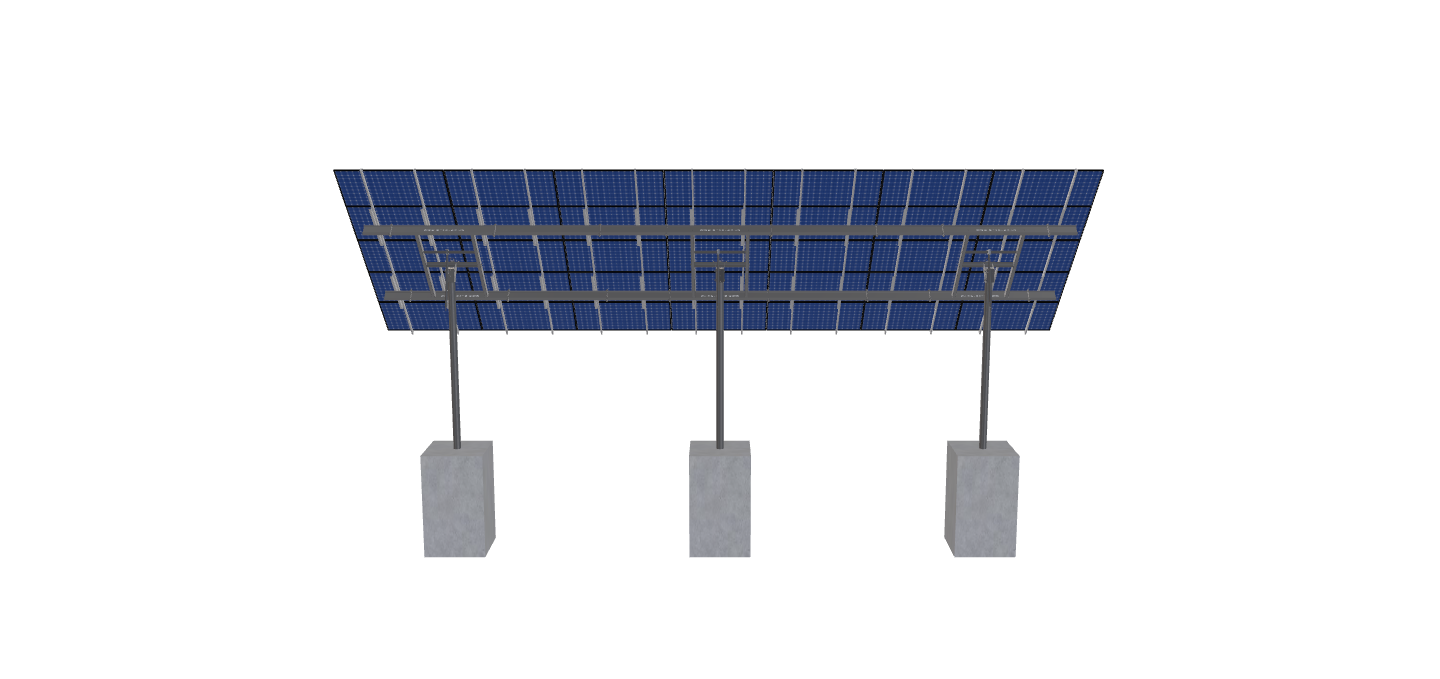

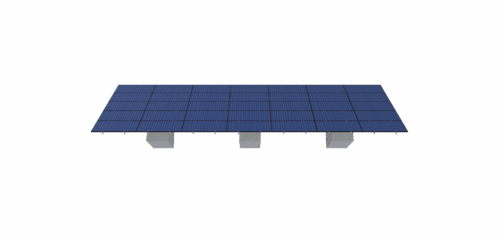

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 3P-19.75-10TOP-HD-24-L-5Hx7W-D195 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2980.81 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-10TOP-HD-24-L-5HX7W-D195

DUTY SIZE

HD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

13.82

WING SPAN

24.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

46.00

CANTILEVER

612.00

GROUND CLEARANCE

7.00

NO POLES

3.00

MODULE AREA

1006.37

ARRAY WIDTH

53.08

ARRAY HEIGHT

18.96

RAIL LENGTH

227.50

MODULE LENGTH

90.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

51.00

GROUND TO TOP

20.64

PROJECTED PANEL HEIGHT

13.64

WIND SPEED OVERRIDE

120.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

DESIGNER NAME
DESIGNER EMAIL
DESIGNER PHONE
PROJECT ID

CURVIN, MARTIN, 5X7, -, V1JB

SITE ADDRESS

501, SHADE, MOUNTAIN, RD, MIDDLEBURG, PA, 17842, USA

MODULE INFO

SILFAB, 580, WAT

MODULE WIDTH

45.00

NUMBER ROWS

5.00

NUMBER COLUMNS

7.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

HD

POLE OVERRIDE

10, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

TOTAL PRICE

15557.28

TOTAL WEIGHT

2980.81

TOTAL PALLETS

3.00
