Derek Monner

$11,519.15

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

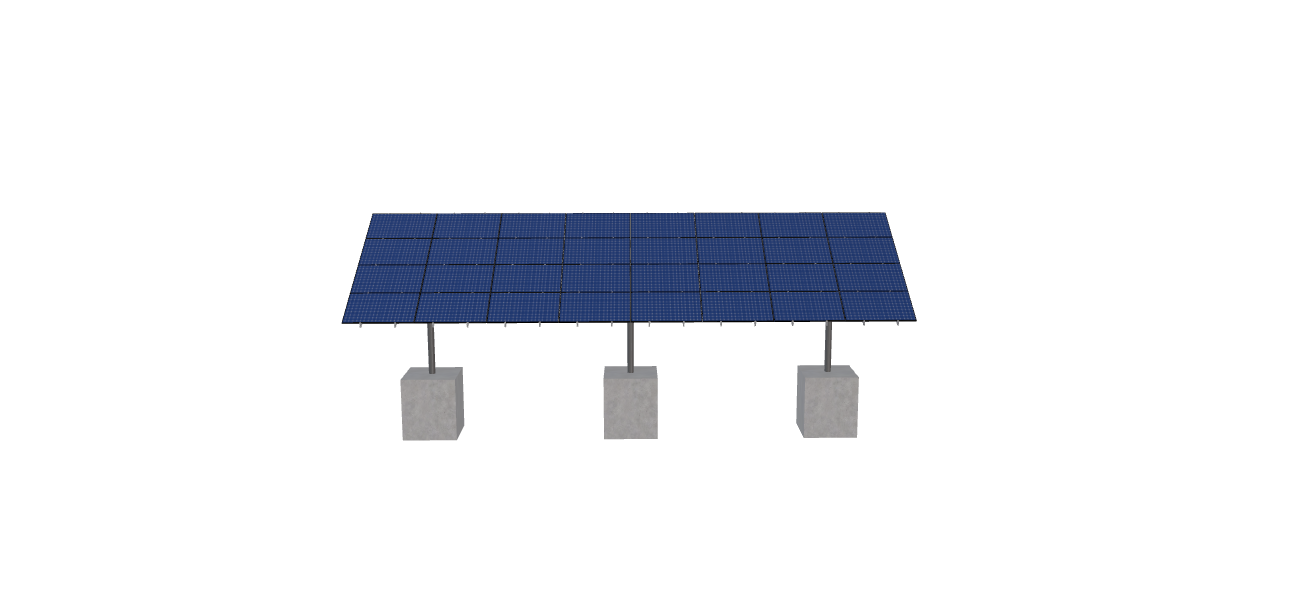

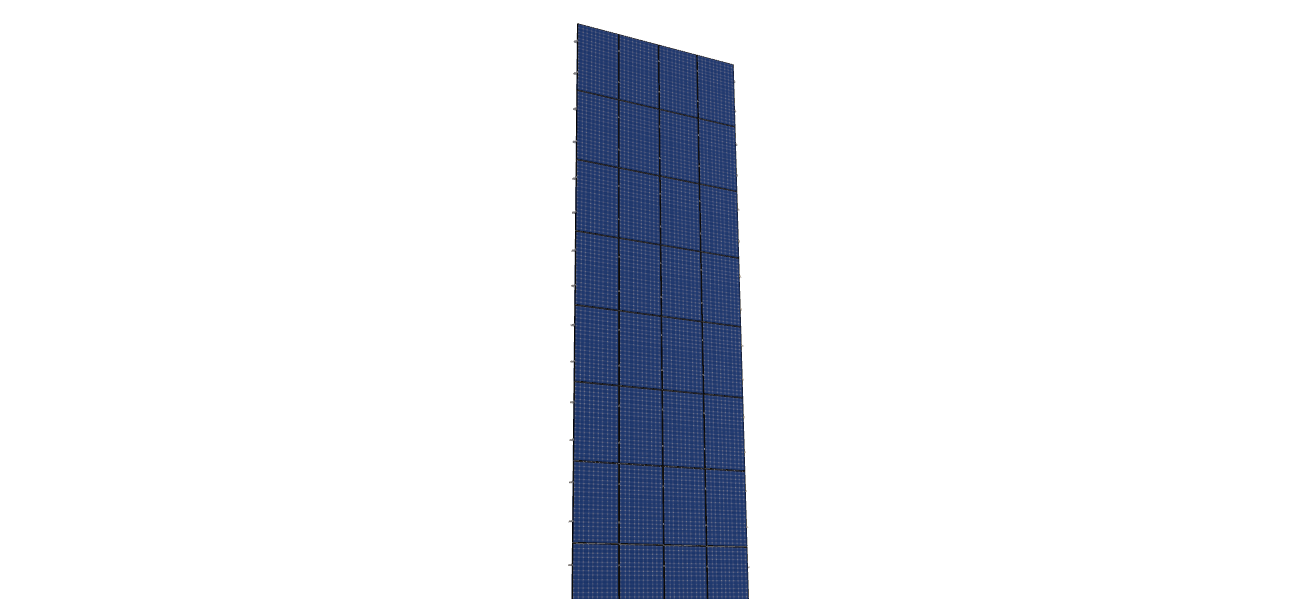

See 3D Model Here

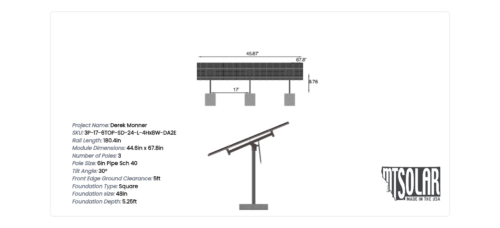

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-17-6TOP-SD-24-L-4Hx8W-DA2E Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2010.76 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-6TOP-SD-24-L-4HX8W-DA2E

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

8.76

WING SPAN

24.00

MAX FOUNDATION DEPTH

5.25

TILT ANGLE

30.00

CANTILEVER

546.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

689.53

ARRAY WIDTH

45.87

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

45.50

GROUND TO TOP

12.47

PROJECTED PANEL HEIGHT

7.43

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

DEREK, MONNER

SITE ADDRESS

14805, MINK, RD, NE, WOODINVILLE, WA, 98077, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

8.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

11519.15

TOTAL WEIGHT

2010.76

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/180d36a0-69ed-4203-b286-d177db3012c5.pdf

ID

6567.00
