Dolan Springs Residence-V1cu

$17,236.23

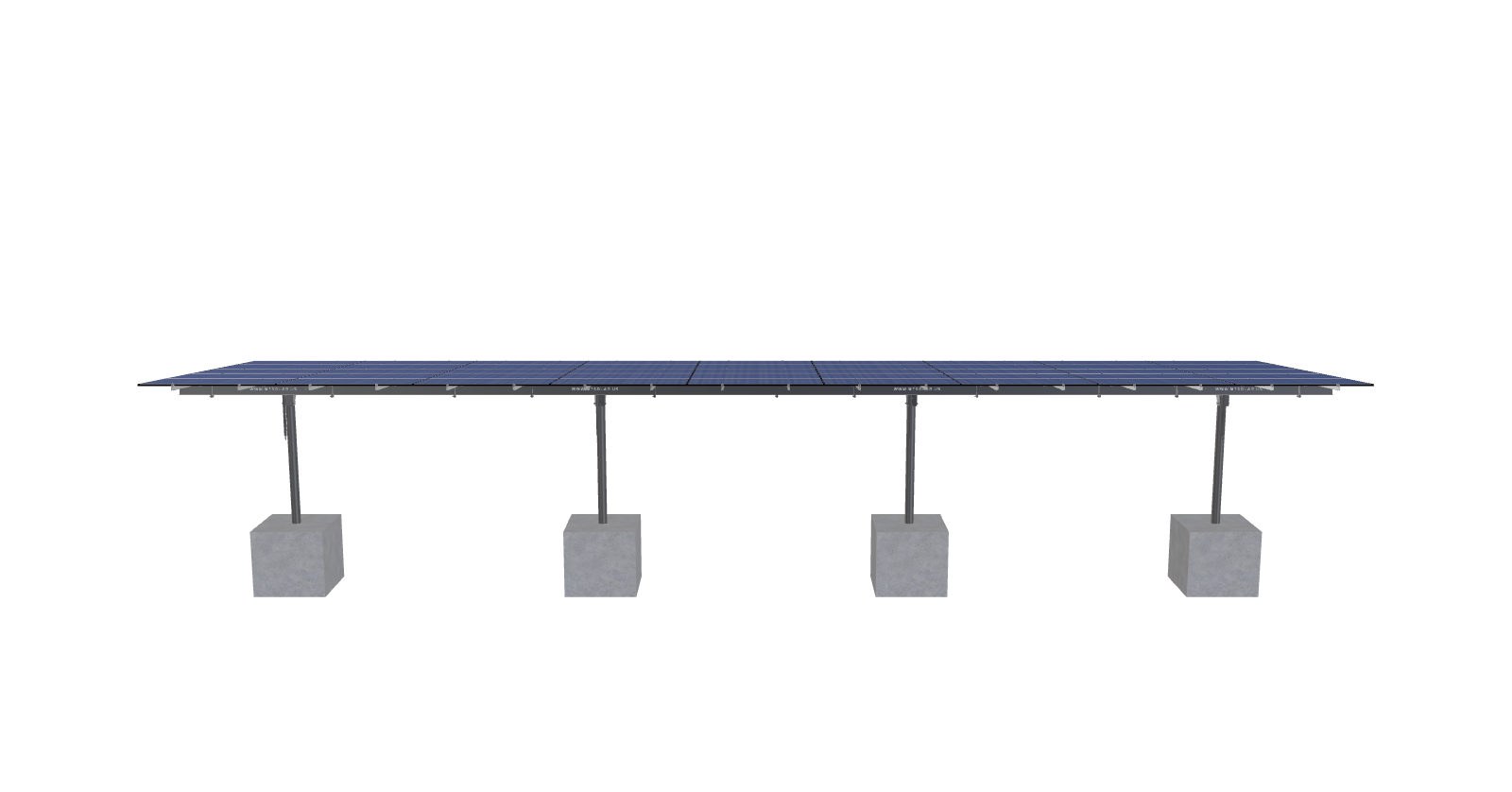

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.81 inches by 50.43 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $17,236.23
Total options:
Order total:
SKU: 4P-19.75-6TOP-SD-24-L-5Hx9W-9E1F Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.81 inches by 50.43 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3386.46 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-6TOP-SD-24-L-5HX9W-9E1F

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

8.92

WING SPAN

24.00

MAX FOUNDATION DEPTH

4.25

TILT ANGLE

5.00

CANTILEVER

849.00

GROUND CLEARANCE

8.00

NO POLES

4.00

MODULE AREA

1508.96

ARRAY WIDTH

71.11

ARRAY HEIGHT

21.22

RAIL LENGTH

254.65

MODULE LENGTH

93.81

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

70.75

GROUND TO TOP

9.84

PROJECTED PANEL HEIGHT

1.83

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

DOLAN, SPRINGS, RESIDENCE-V1CU

SITE ADDRESS

17533, KINGMAN, DR, DOLAN, SPRINGS, AZ, 86441, USA

MODULE WIDTH

50.43

NUMBER ROWS

5.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

17236.23

TOTAL WEIGHT

3386.46

TOTAL PALLETS

4.00
