EBS-PV4

$4,171.28

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78 inches by 39 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

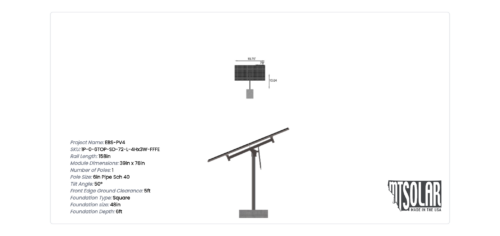

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-72-L-4Hx3W-FFFE Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78 inches by 39 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 744.66 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-72-L-4HX3W-FFFE

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.04

WING SPAN

72.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

50.00

CANTILEVER

234.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

260.04

ARRAY WIDTH

19.75

ARRAY HEIGHT

13.17

RAIL LENGTH

158.00

MODULE LENGTH

78.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

15.02

PROJECTED PANEL HEIGHT

9.96

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

EBS-PV4

SITE ADDRESS

W14068, SELWOOD, RD, PRAIRIE, DU, SAC, WI, 53578, USA

MODULE WIDTH

39.00

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

4171.28

TOTAL WEIGHT

744.66

TOTAL PALLETS

1.00
