Falcon Ridge – V1Jb

$4,000.30

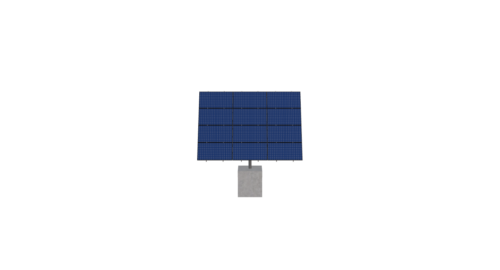

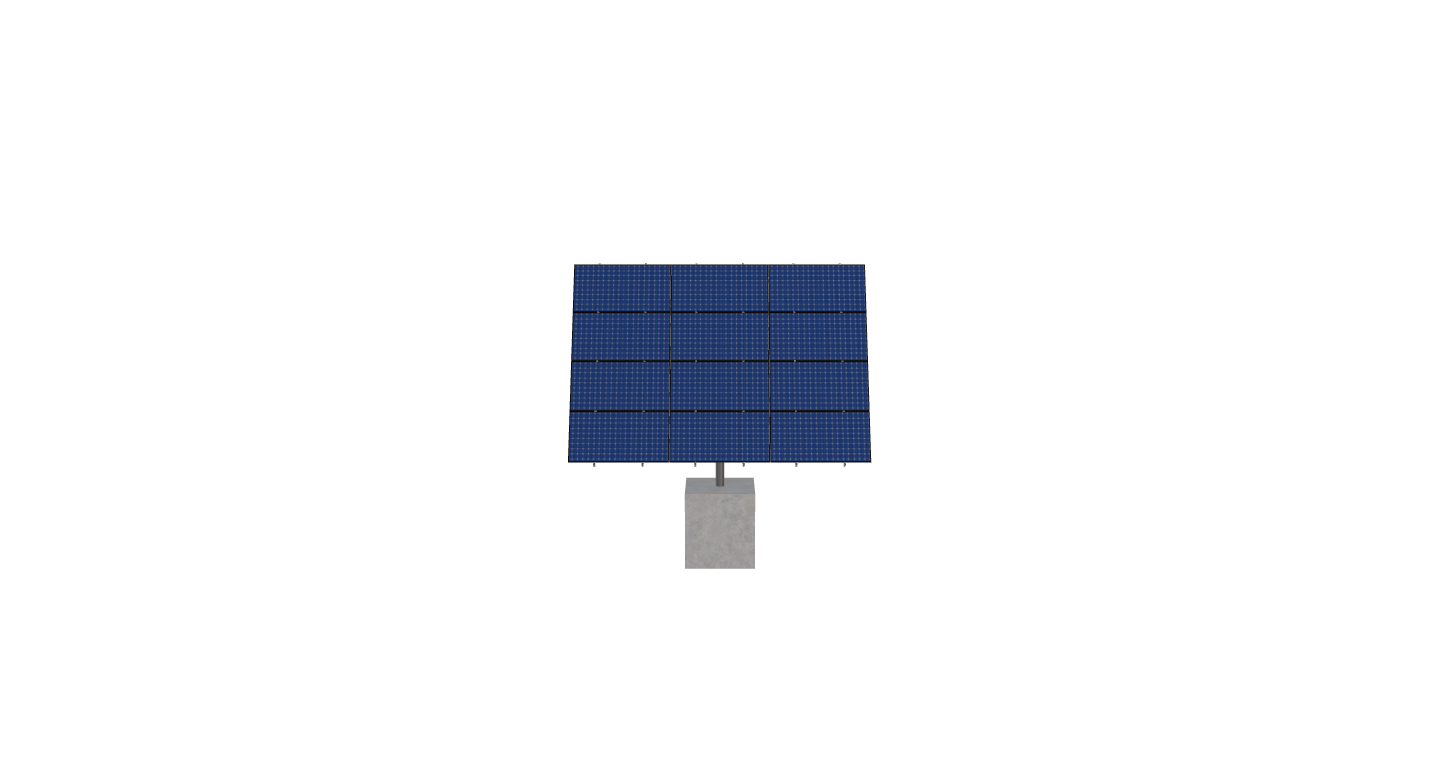

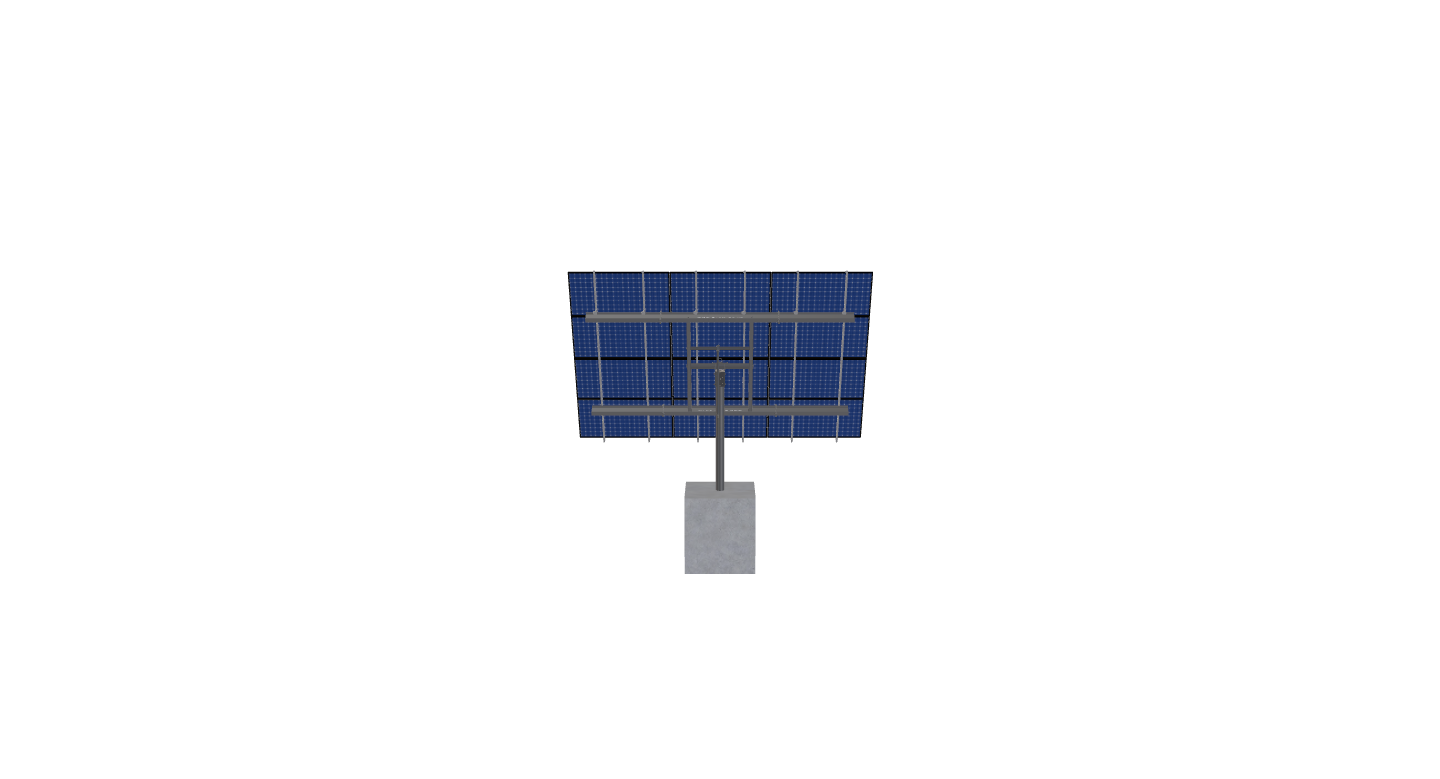

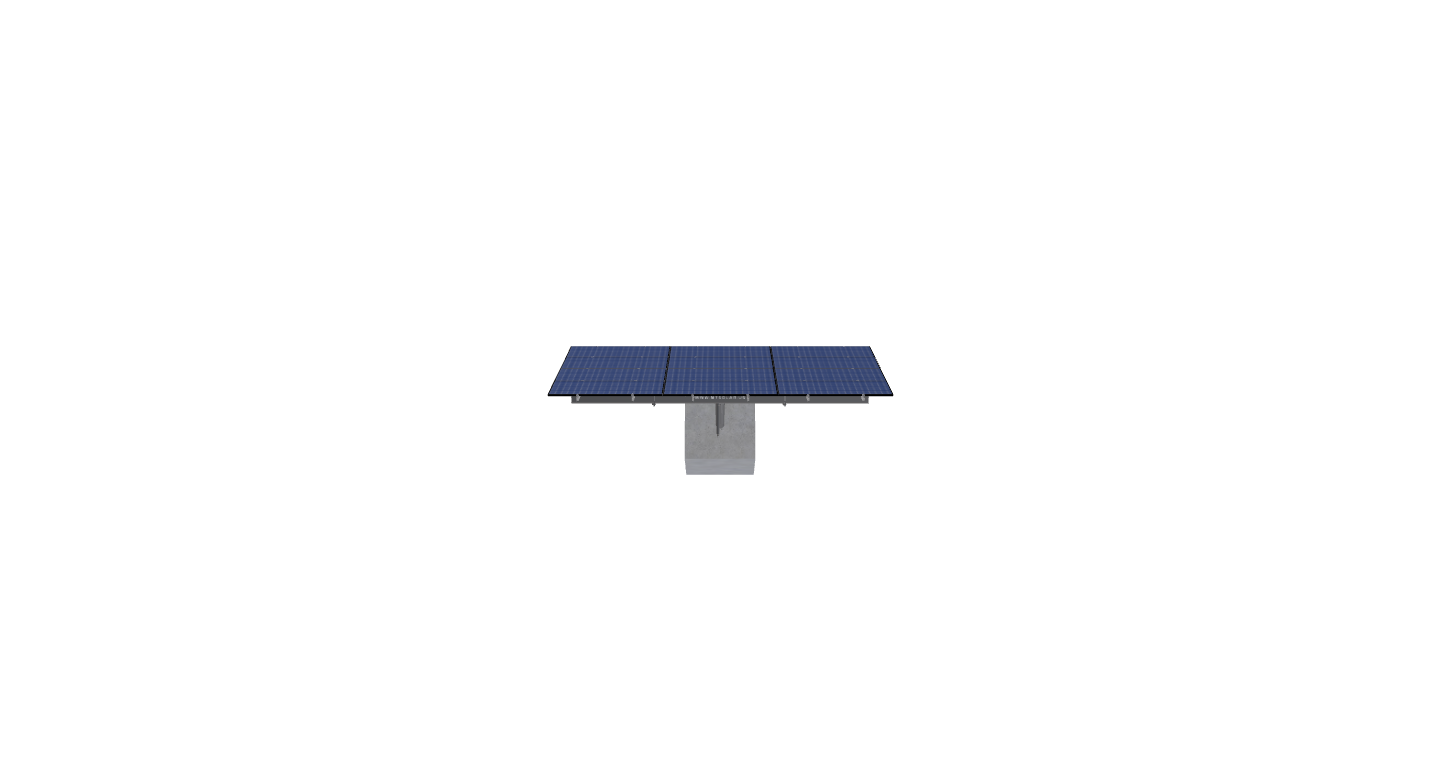

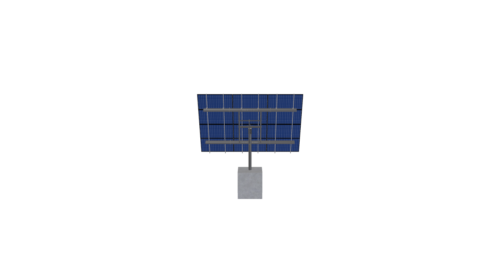

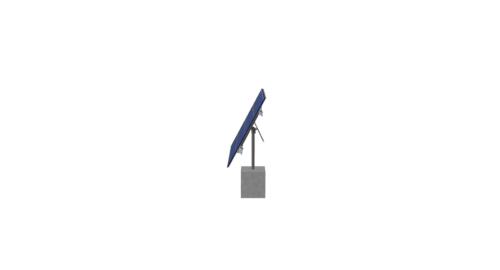

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76 inches by 41 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

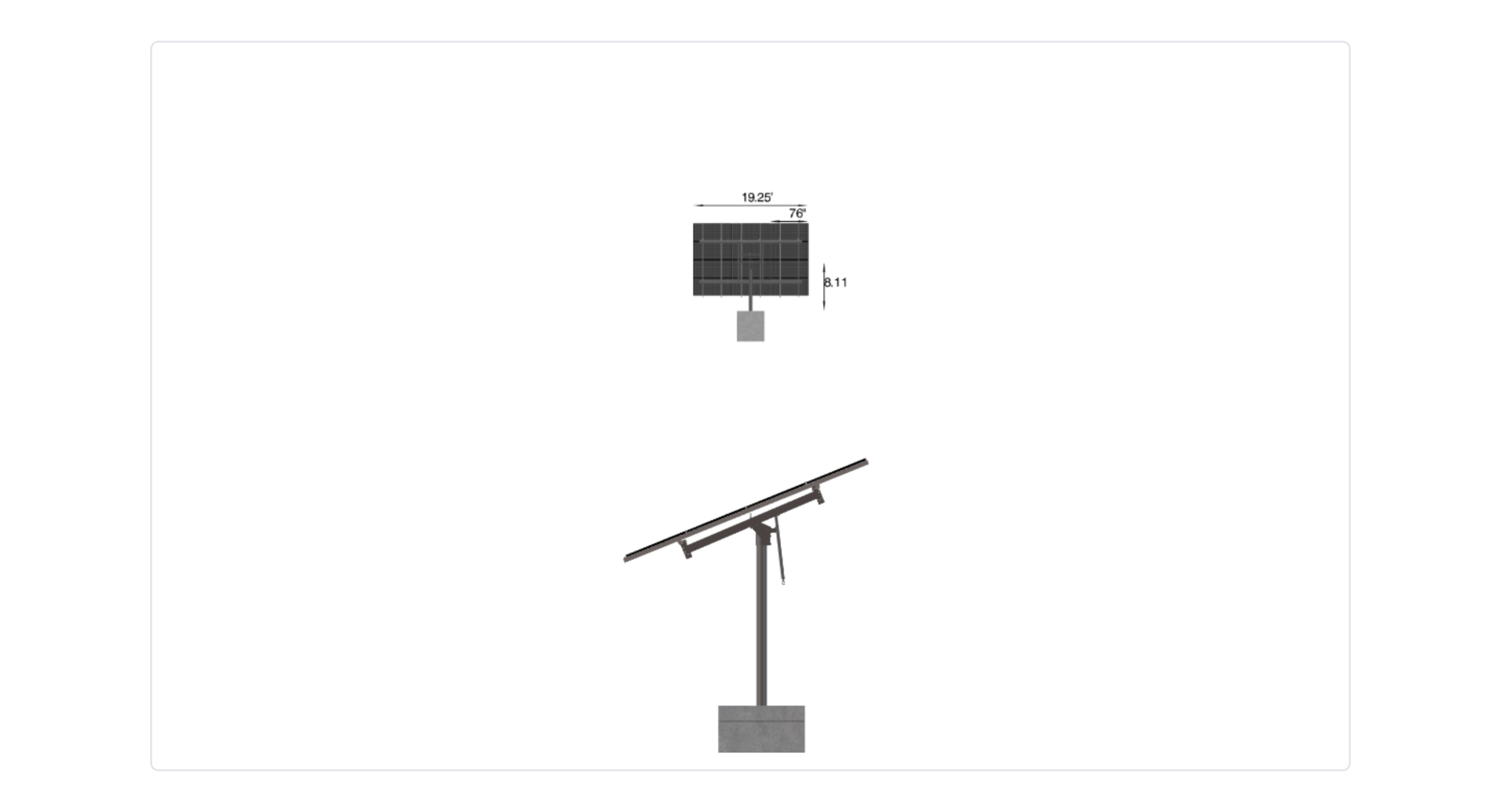

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-57-L-4Hx3W-F98F Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76 inches by 41 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 699.66 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-57-L-4HX3W-F98F

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

8.11

WING SPAN

57.00

MAX FOUNDATION DEPTH

5.00

TILT ANGLE

62.00

CANTILEVER

204.00

GROUND CLEARANCE

2.00

NO POLES

1.00

MODULE AREA

266.29

ARRAY WIDTH

19.25

ARRAY HEIGHT

13.83

RAIL LENGTH

166.00

MODULE LENGTH

76.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

14.14

PROJECTED PANEL HEIGHT

12.07

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

FALCON, RIDGE, -, V1JB

SITE ADDRESS

10388, FALCON, RIDGE, RD, JACKSON, CA, 95642, USA

MODULE WIDTH

41.00

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

4000.30

TOTAL WEIGHT

699.66

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/df1870ff-f190-4b08-ab4e-1e9d464e2c6a.pdf

ID

7371.00
