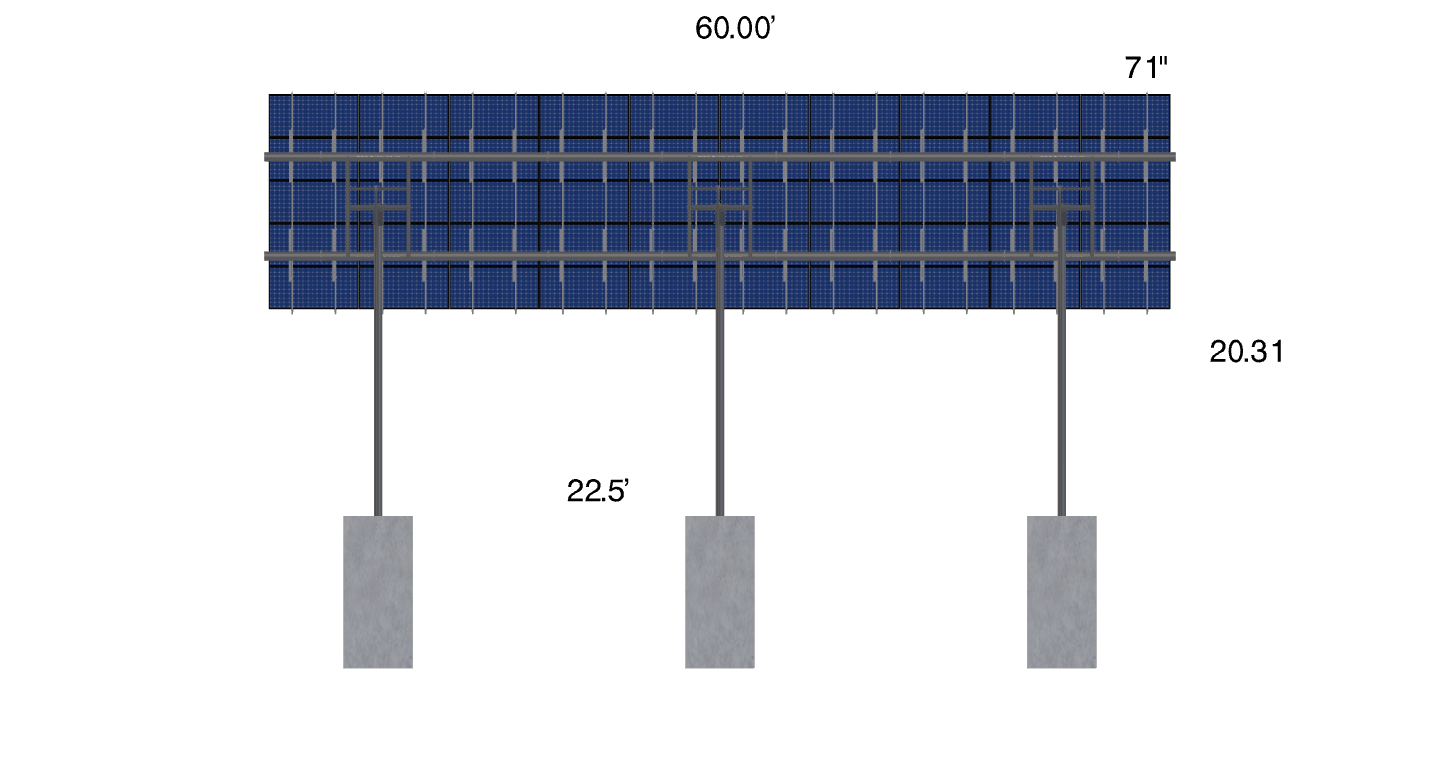

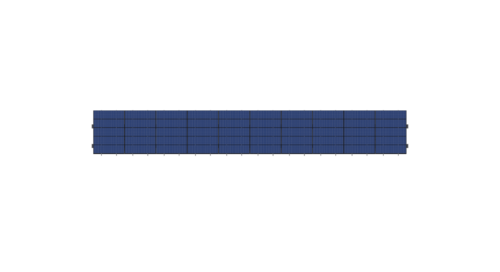

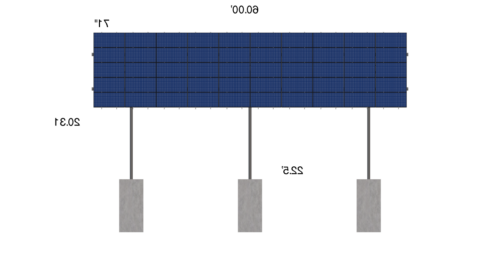

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 40 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

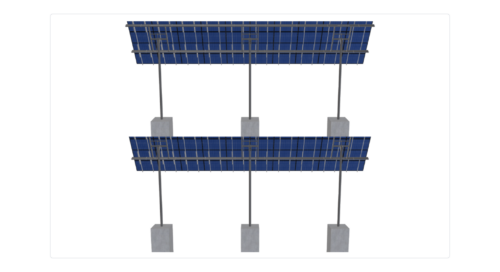

See 3D Model Here
Fletcher-Area1-RevB-22spacing-JB
$17,115.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 40 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3465.05 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-10TOP-HD-45-L-5HX10W-78G5 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 20.31 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 10.00 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 13.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1012.50 |
| ARRAY WIDTH | 60.00 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 71.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 27.52 |
| PROJECTED PANEL HEIGHT | 14.43 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 90.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | FLETCHER-AREA1-REVB-22SPACING-JB |
| SITE ADDRESS | 80, MAIN, ST, PARIS, ME, 04281, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17115.56 |
| TOTAL WEIGHT | 3465.05 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/fefa1bb8-6e5f-405f-b43e-6112da14969b.pdf |
|
| ID | 3768.00 |
| 3D Solar link |
