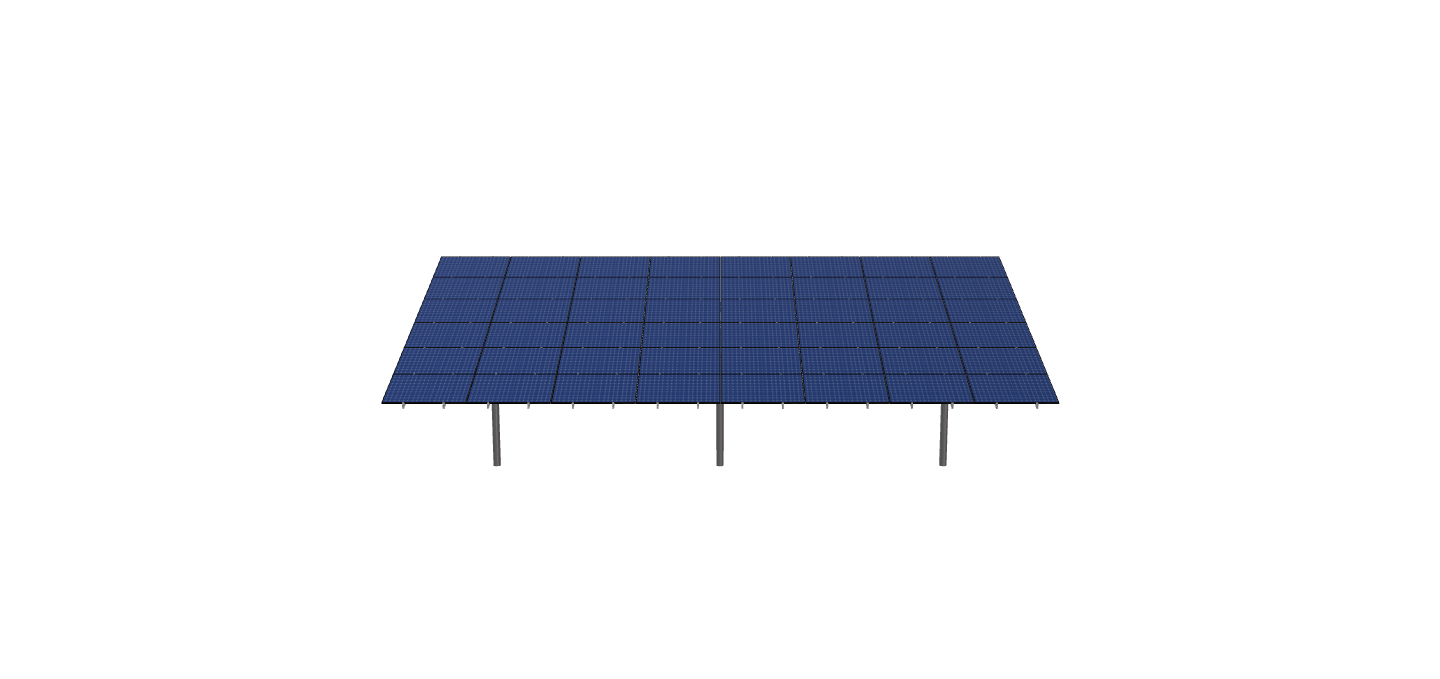

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 8 wide by 6 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Gambrills – 6×8-V1Jb
$15,793.31
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 8 wide by 6 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3052.5699999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-HD-24-L-6HX8W-GKB8 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.36 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 9.00 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 6.50 |
| NO POLES | 3.00 |
| MODULE AREA | 1034.29 |
| ARRAY WIDTH | 45.87 |
| ARRAY HEIGHT | 22.55 |
| RAIL LENGTH | 270.60 |
| MODULE LENGTH | 67.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 14.21 |
| PROJECTED PANEL HEIGHT | 7.71 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 25.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | GAMBRILLS, -, 6X8-V1JB |
| SITE ADDRESS | 2398, GINGER, DR, GAMBRILLS, MD, 21054, USA |
| MODULE INFO | CANADIAN, SOLAR, 455 |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 6.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 15793.31 |
| TOTAL WEIGHT | 3052.57 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/edc62ce6-91fb-4f7b-97e3-2ddd08a27db9.pdf |
|
| ID | 11991.00 |
| 3D Solar link |
