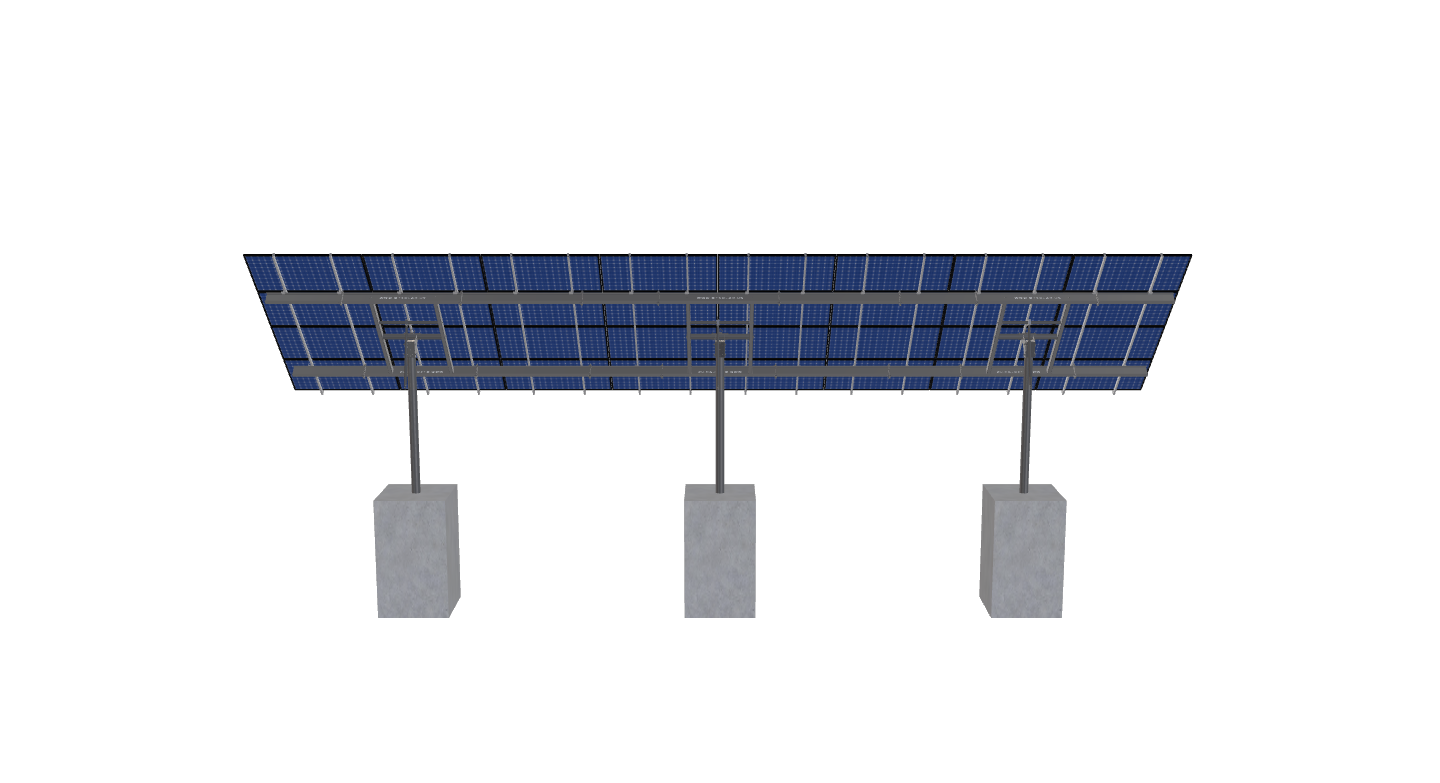

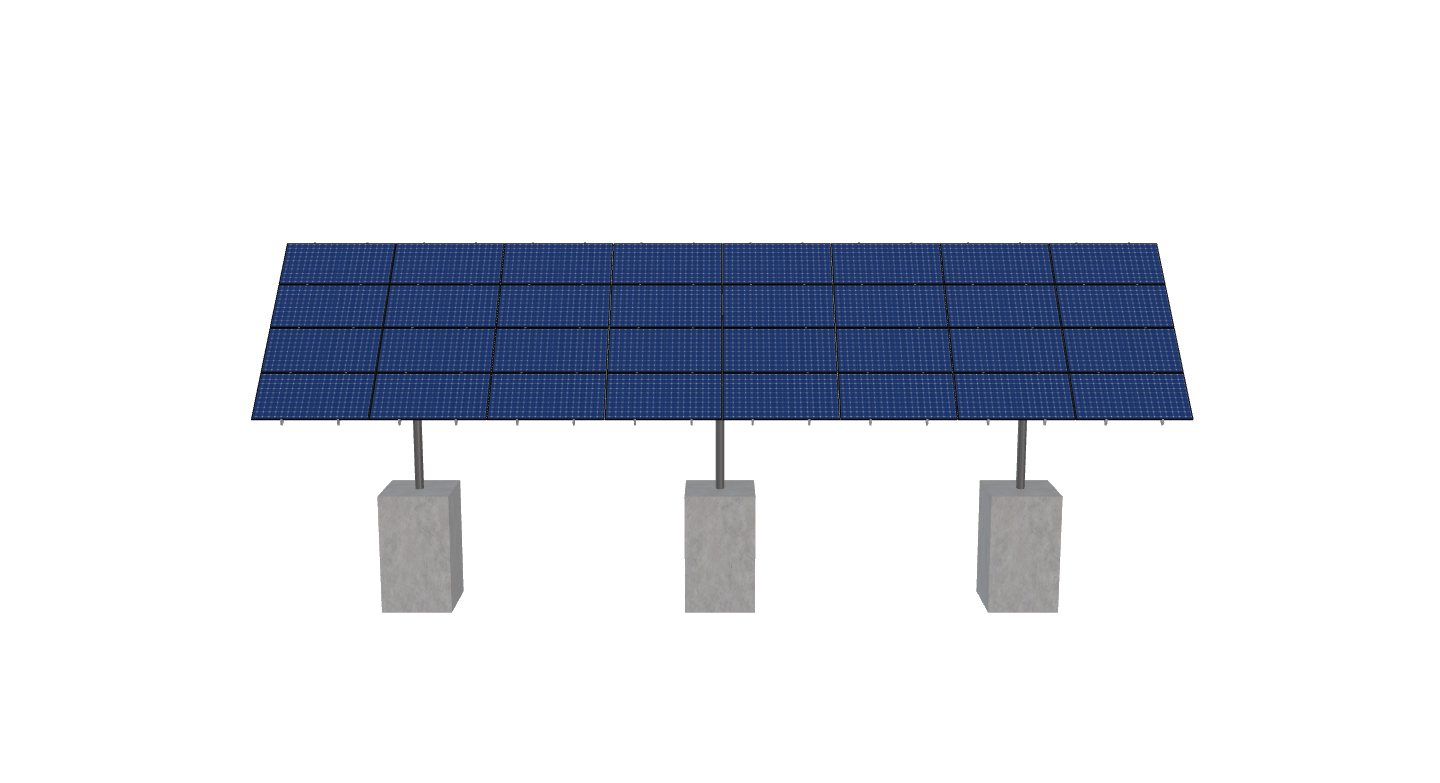

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86 inches by 42.3 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
GreggBradburyGroundMount-RevF-JB
$14,153.73
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86 inches by 42.3 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2633.45 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-HD-57-L-4HX8W-2GGC |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.13 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 827.47 |
| ARRAY WIDTH | 58.00 |
| ARRAY HEIGHT | 14.27 |
| RAIL LENGTH | 171.20 |
| MODULE LENGTH | 86.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 15.20 |
| PROJECTED PANEL HEIGHT | 10.14 |
| WIND SPEED OVERRIDE | 150.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | GREGGBRADBURYGROUNDMOUNT-REVF-JB |
| SITE ADDRESS | 8775, BLUE, MOUNTAIN, DR, GOLDEN, CO, 80403, USA |
| MODULE WIDTH | 42.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14153.73 |
| TOTAL WEIGHT | 2633.45 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/66dad5b5-2668-46a9-afc8-7abf1fabd503.pdf |
|
| ID | 3884.00 |
| 3D Solar link |
