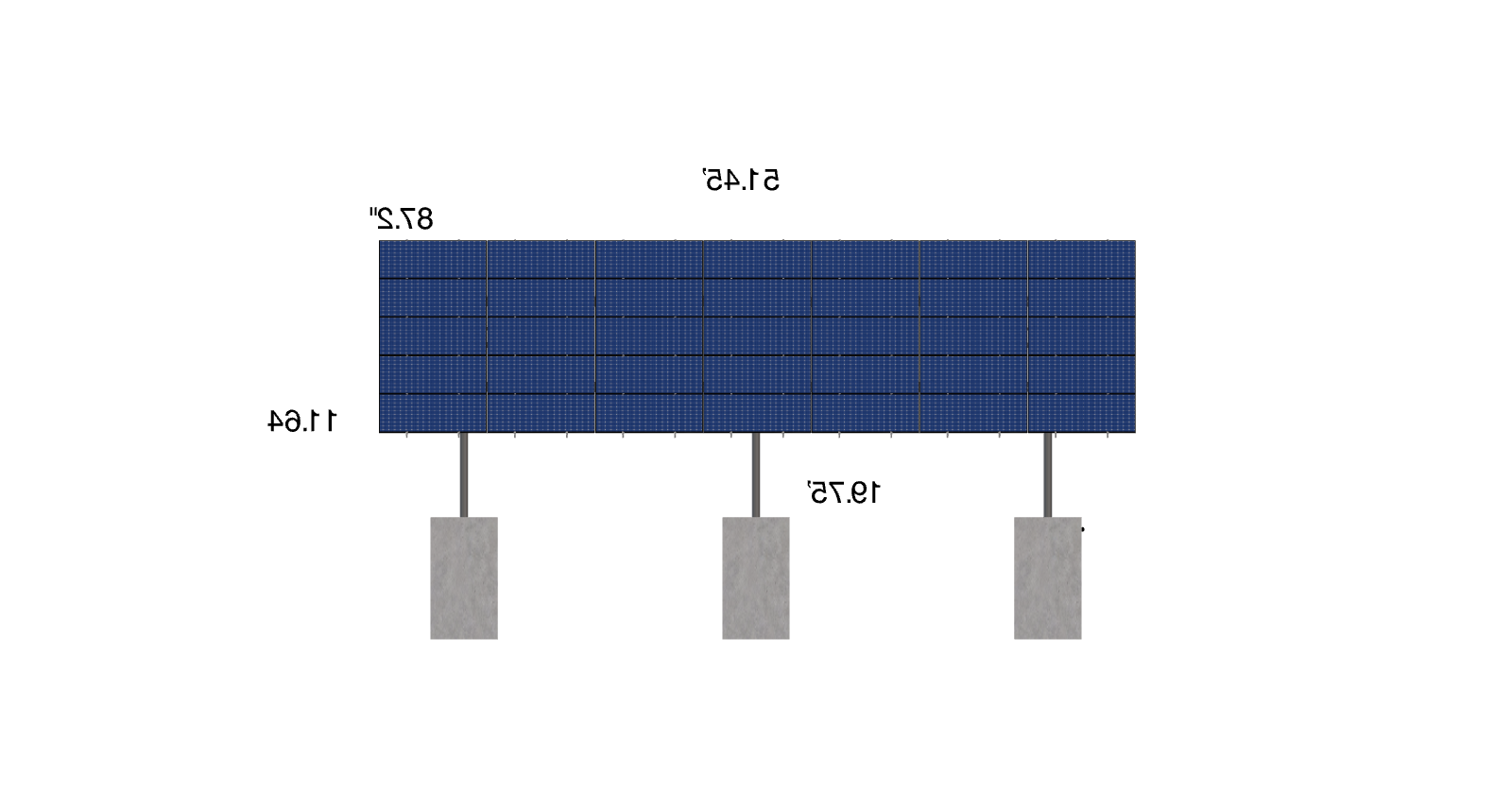

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Guffey-CO 16k Array-v4CU
$16,523.06
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3310.93 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-10TOP-XD-24-L-5HX7W-KGBD |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.64 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 891.80 |
| ARRAY WIDTH | 51.45 |
| ARRAY HEIGHT | 17.33 |
| RAIL LENGTH | 208.00 |
| MODULE LENGTH | 87.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 18.20 |
| PROJECTED PANEL HEIGHT | 13.12 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | GUFFEY-CO, 16K, ARRAY-V4CU |
| SITE ADDRESS | PF77+F4, GUFFEY, CO, 80820, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | II |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 16523.06 |
| TOTAL WEIGHT | 3310.93 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/cf43722e-9895-491a-a70b-670ba2946e7c.pdf |
|
| ID | 7295.00 |
| 3D Solar link |
