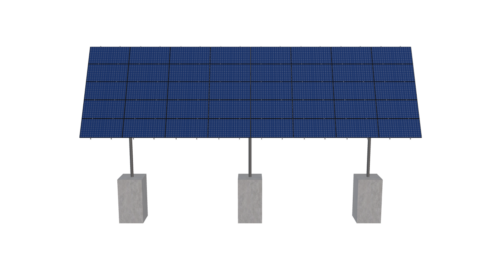

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90.4 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

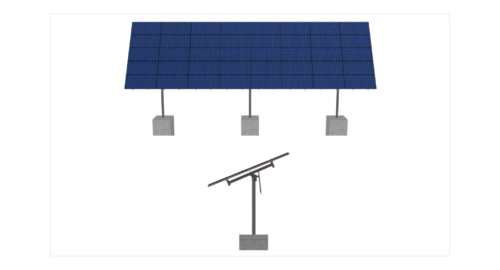

See 3D Model Here
GuildhallVT-Agrivoltaics-3P-Boviet540-RevA-JB
$16,694.23
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90.4 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3217.17 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-HD-45-L-5HX8W-GH57 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 16.15 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1146.31 |
| ARRAY WIDTH | 60.93 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 90.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 24.20 |
| PROJECTED PANEL HEIGHT | 16.11 |
| WIND SPEED OVERRIDE | 99.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | GUILDHALLVT-AGRICOLTAICS-3P-BOVIET540-REVA-JB |
| SITE ADDRESS | 1475, VT-102, GUILDHALL, VT, 05905, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15899.27 |
| TOTAL WEIGHT | 3217.17 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/eb81d958-541f-4c73-b42f-0051f3b1516f.pdf |
|
| ID | 5299.00 |
| 3D Solar link |
