Hill v1

$12,075.98

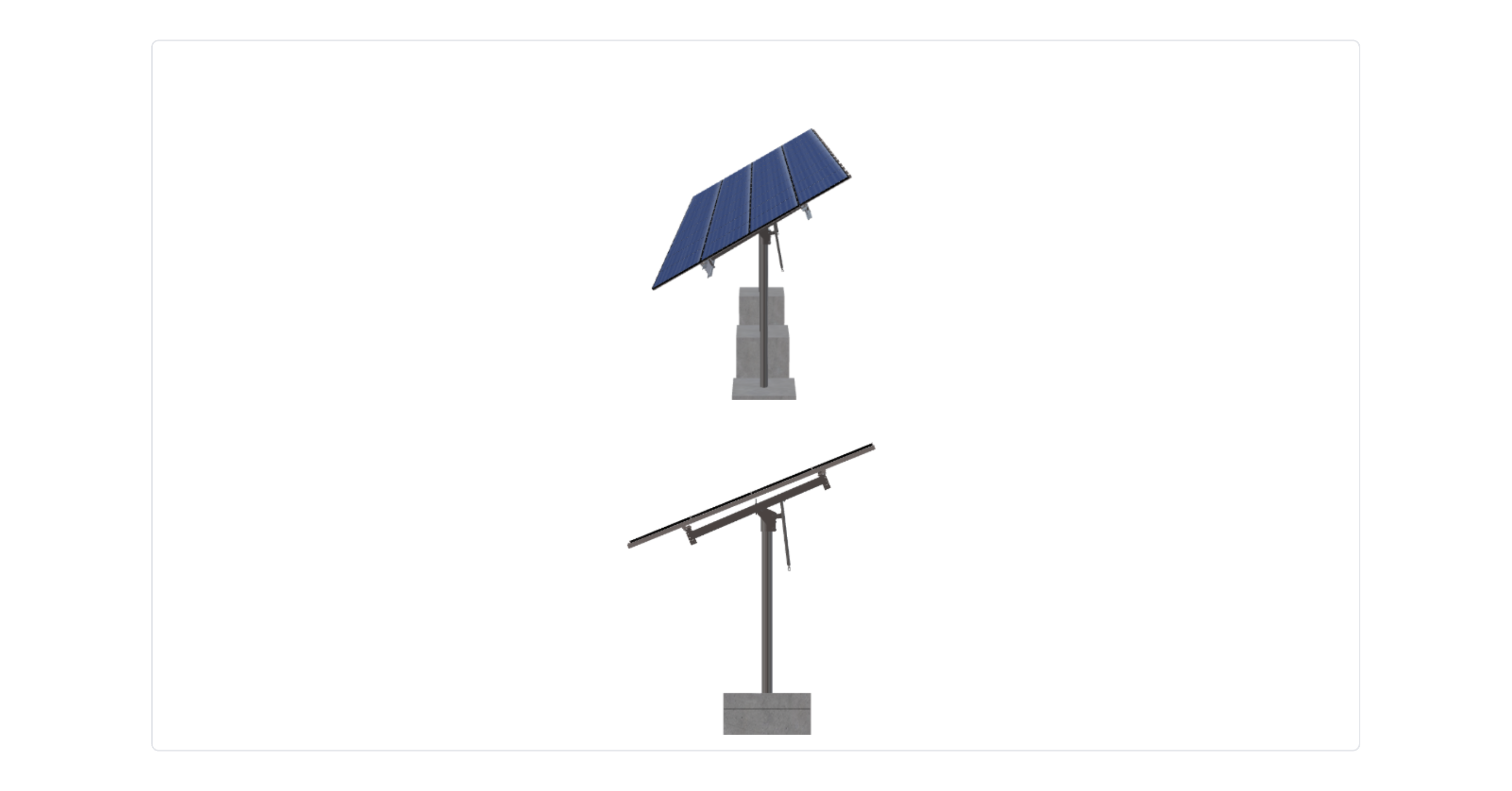

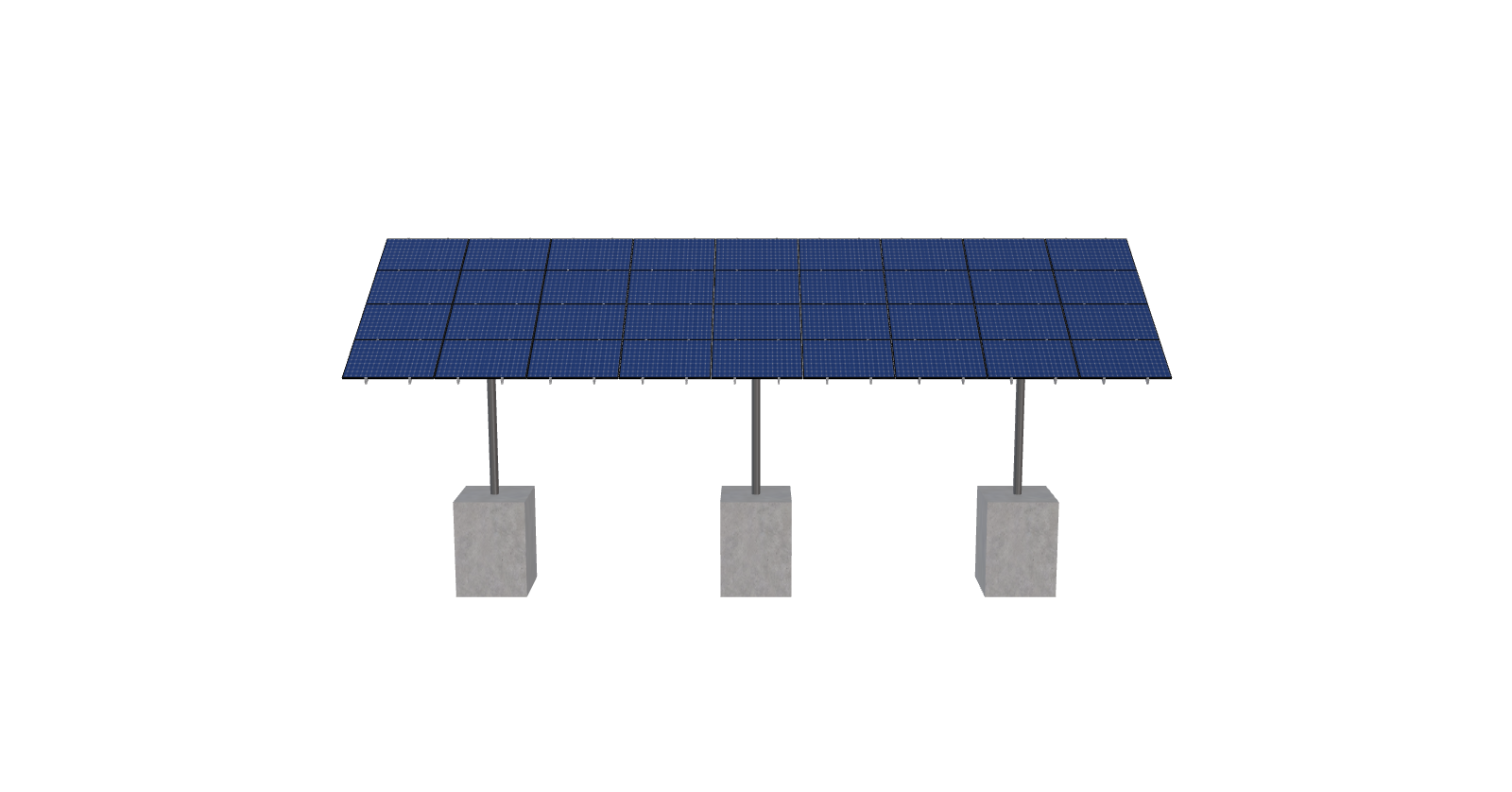

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.39 inches by 44.65 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $12,075.98
Total options:
Order total:
SKU: 3P-17-6TOP-SD-45-L-4Hx9W-LD81 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.39 inches by 44.65 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2110.98 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-6TOP-SD-45-L-4HX9W-LD81

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

11.76

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

30.00

CANTILEVER

588.00

GROUND CLEARANCE

8.00

NO POLES

3.00

MODULE AREA

749.38

ARRAY WIDTH

49.79

ARRAY HEIGHT

15.05

RAIL LENGTH

180.60

MODULE LENGTH

65.39

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

49.00

GROUND TO TOP

15.48

PROJECTED PANEL HEIGHT

7.44

PROJECT ID

HILL, V1

SITE ADDRESS

1210, E, HWY, 20, UPPER, LAKE, CA, 95485, USA

MODULE WIDTH

44.65

NUMBER ROWS

4.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

90.00

SNOW LOAD OVERRIDE

17.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

12075.98

TOTAL WEIGHT

2110.98

TOTAL PALLETS

3.00
