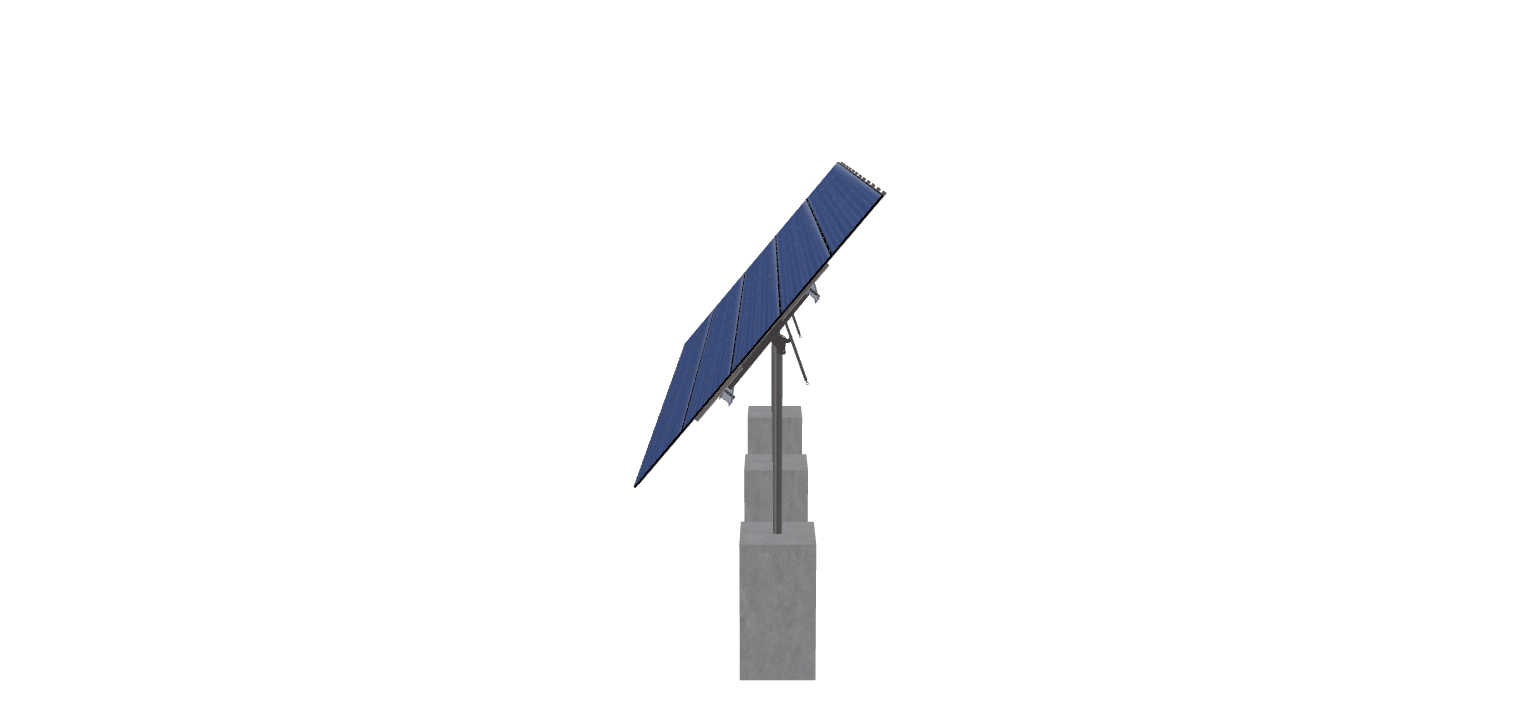

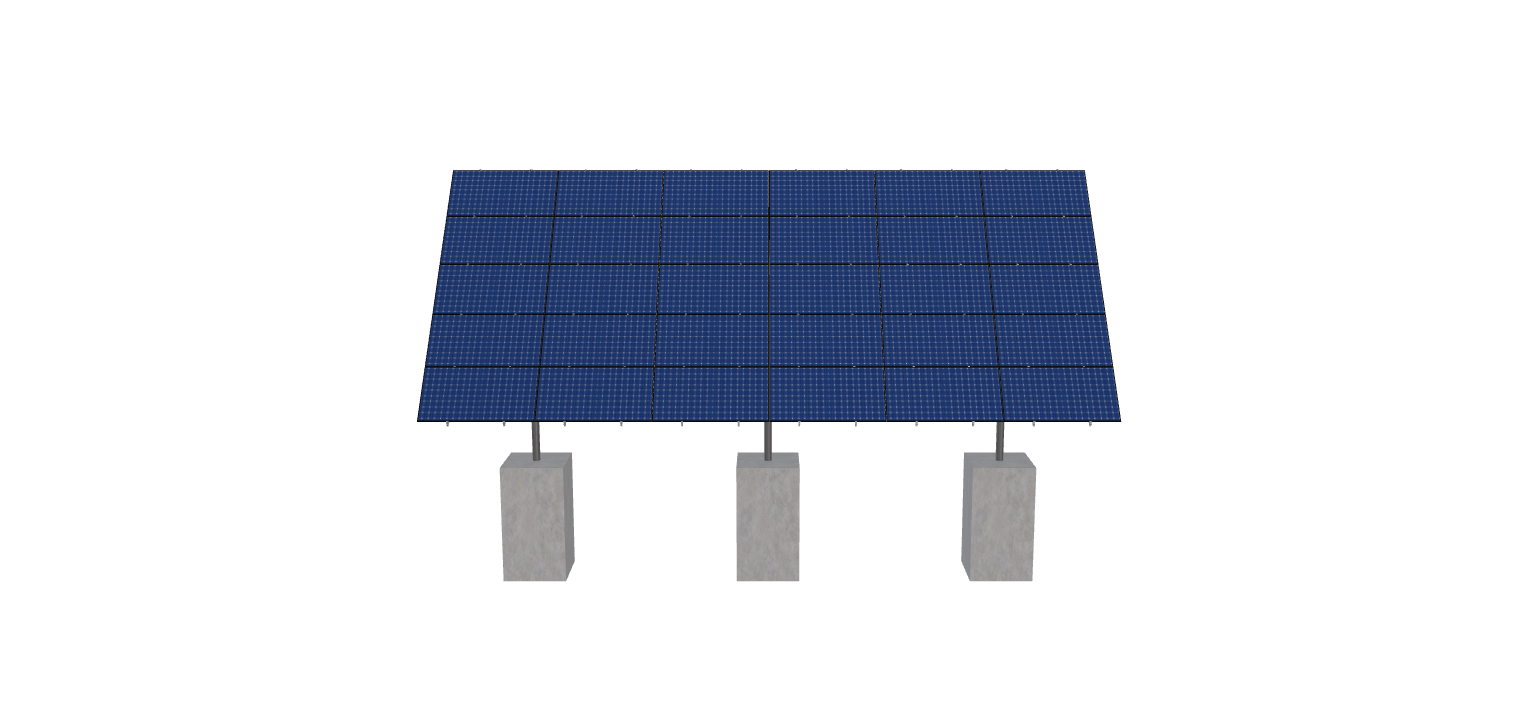

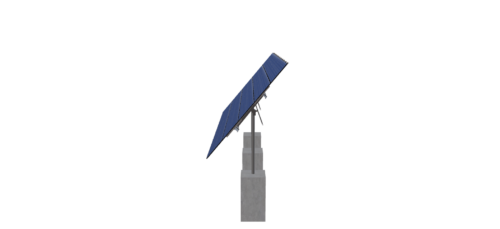

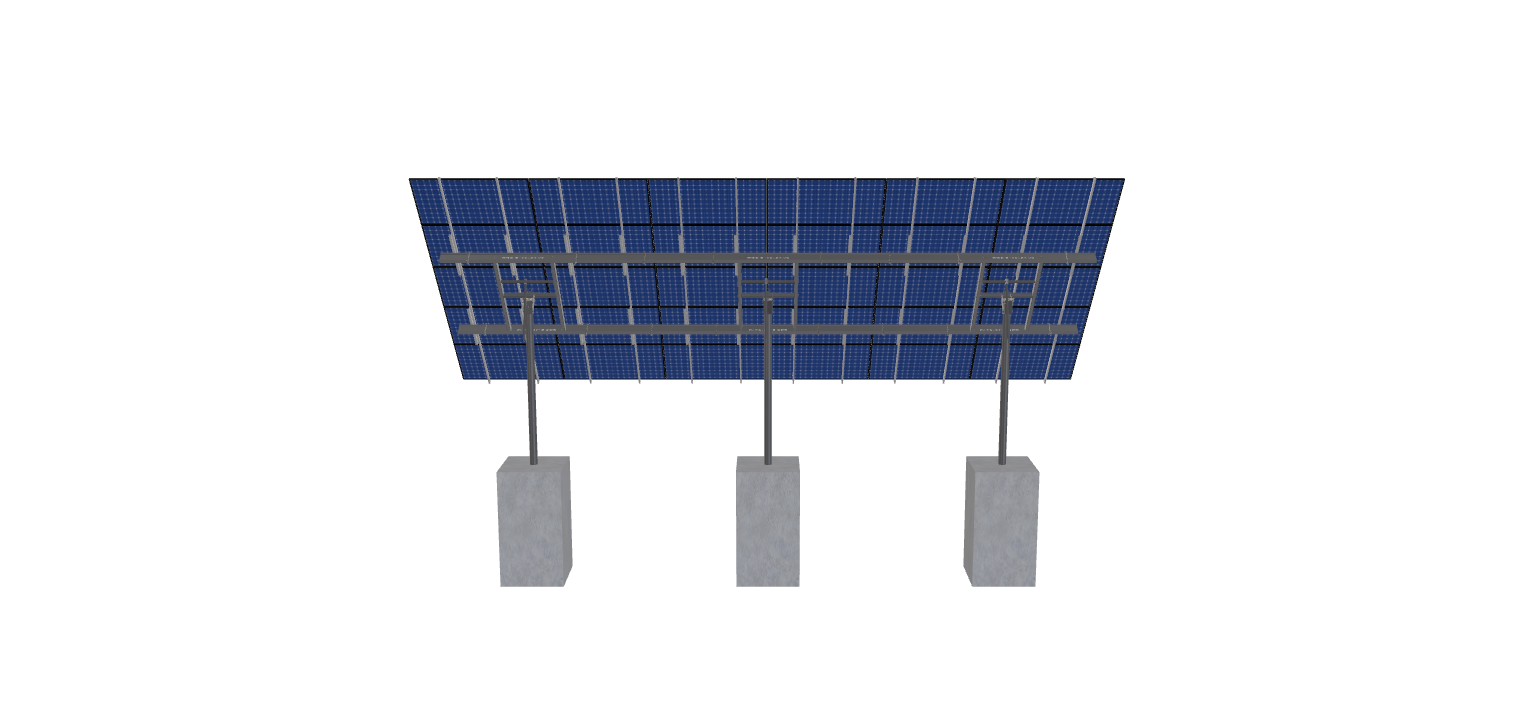

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.9 inches by 51.3 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Holbrook Airstrip
$15,512.81
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.9 inches by 51.3 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3077.49 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-10TOP-XD-24-L-5HX6W-AIAI |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 12.27 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1024.13 |
| ARRAY WIDTH | 47.45 |
| ARRAY HEIGHT | 21.58 |
| RAIL LENGTH | 259.00 |
| MODULE LENGTH | 93.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 20.45 |
| PROJECTED PANEL HEIGHT | 16.37 |
| PROJECT ID | HOLBROOK, AIRSTRIP |
| SITE ADDRESS | 7421, W, SUN, RIDGE, CIR, WASILLA, AK, 99623, USA |
| MODULE WIDTH | 51.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15512.81 |
| TOTAL WEIGHT | 3077.49 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/2f2c7f9e-60be-4413-abb8-a48d58200253.pdf |
|
| ID | 5211.00 |
| 3D Solar link |
