This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

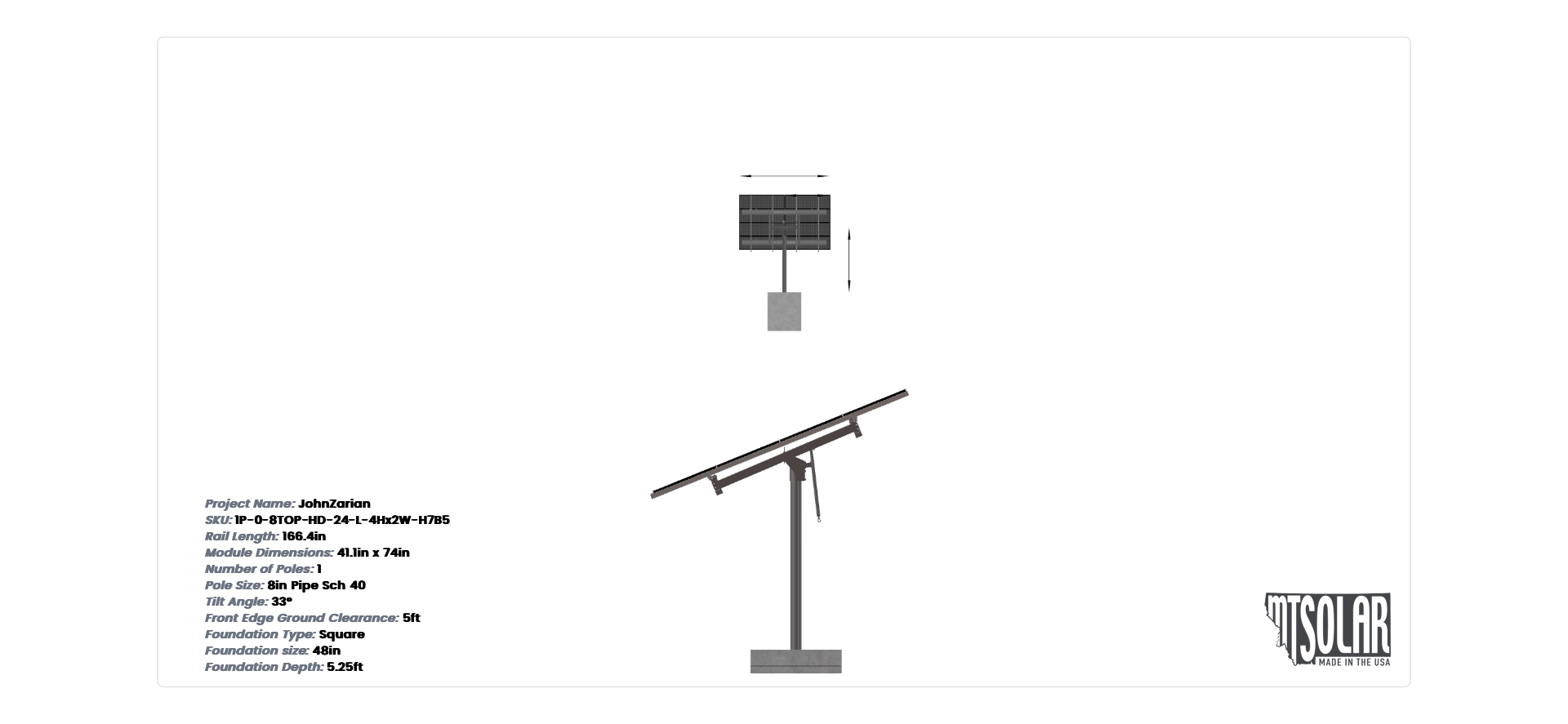

See 3D Model Here
JohnZarian
$3,841.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 687.19 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-8TOP-HD-24-L-4HX2W-H7B5 |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 8.78 |
WING SPAN | 24.00 |
MAX FOUNDATION DEPTH | 5.25 |
TILT ANGLE | 33.00 |
CANTILEVER | 138.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 1.00 |
MODULE AREA | 173.33 |
ARRAY WIDTH | 12.50 |
ARRAY HEIGHT | 13.87 |
RAIL LENGTH | 166.40 |
MODULE LENGTH | 74.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 11.50 |
GROUND TO TOP | 12.51 |
PROJECTED PANEL HEIGHT | 7.46 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | JOHNZARIAN |
SITE ADDRESS | 2790, SKYLINE, DR, NEW, MEADOWS, ID, 83654, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 2.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | 8, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 3841.34 |
TOTAL WEIGHT | 687.19 |
TOTAL PALLETS | 1.00 |
