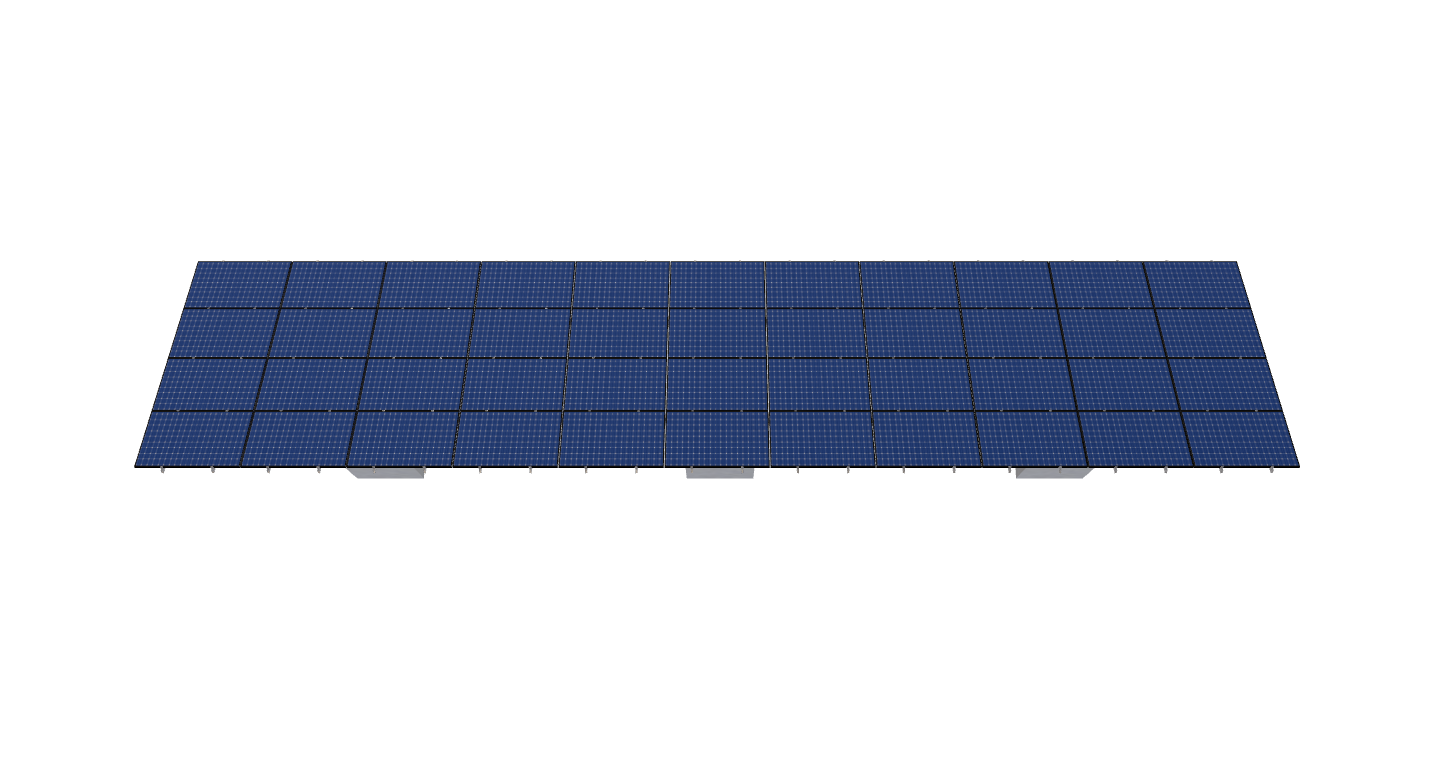

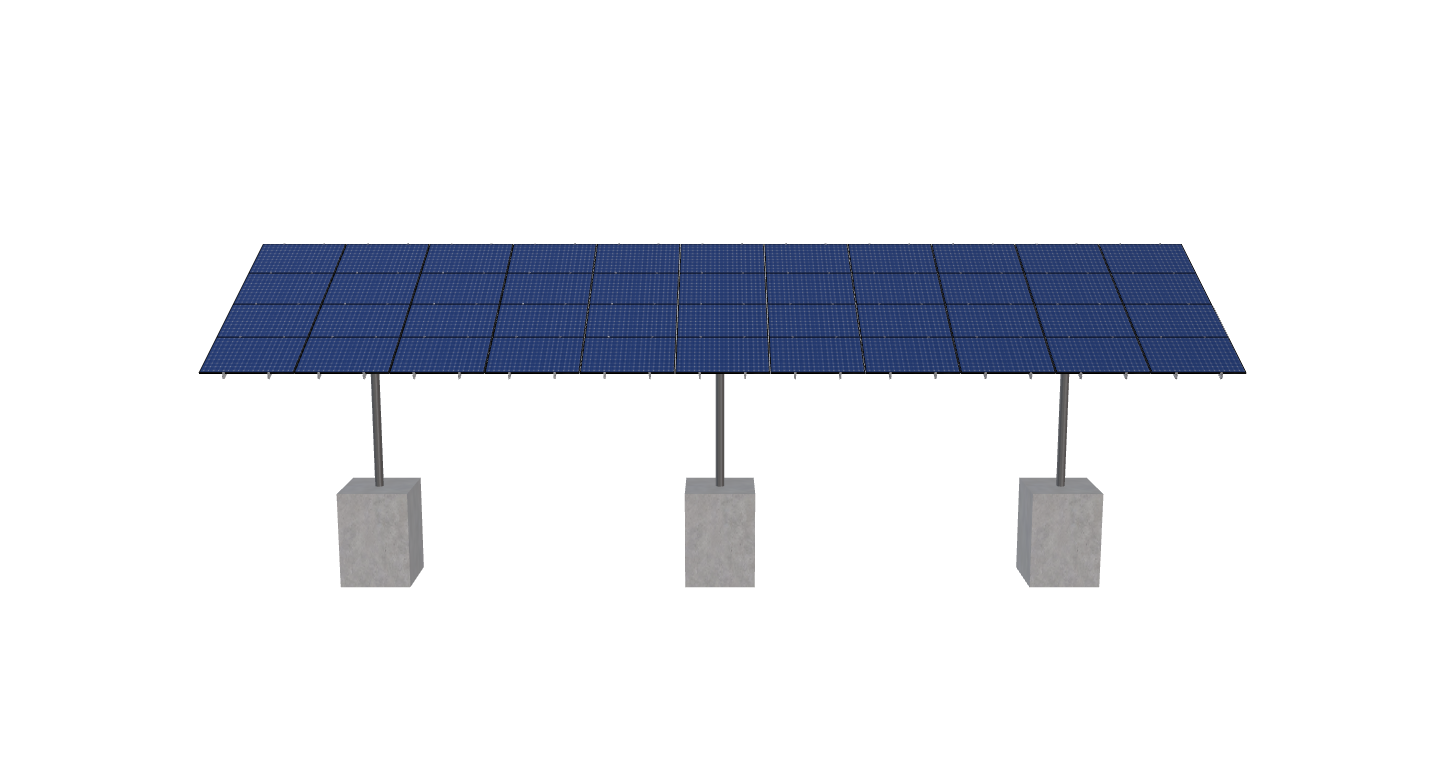

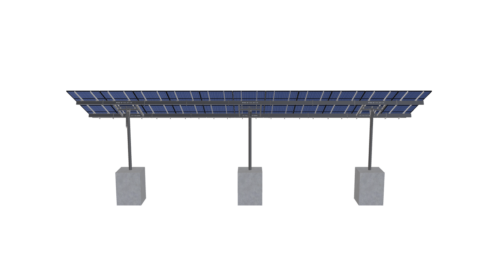

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 47.4 inches and an array layout of 11 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

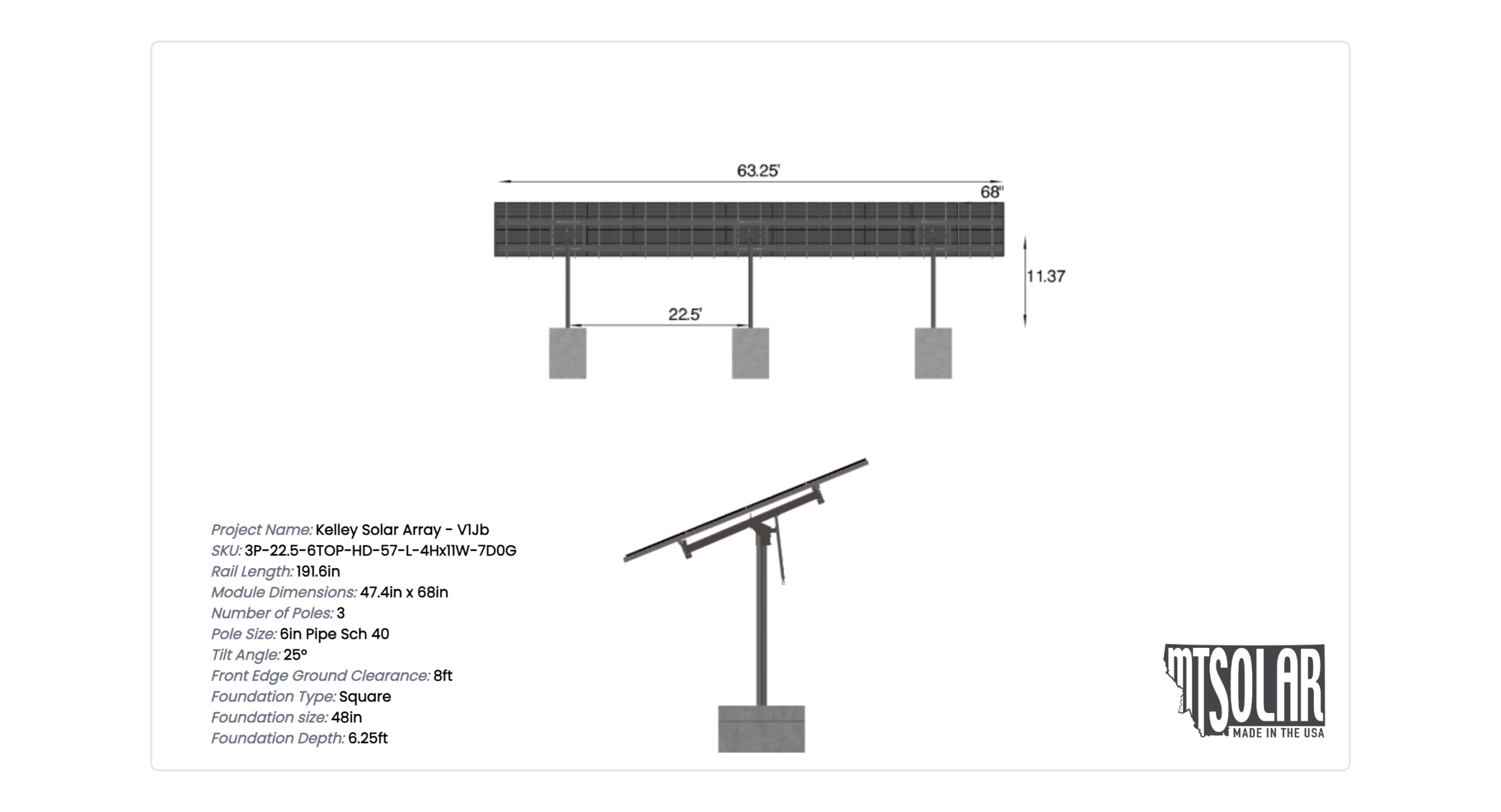

See 3D Model Here
Kelley Solar Array – V1Jb
$15,298.84
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 47.4 inches and an array layout of 11 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2810.07 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-HD-57-L-4HX11W-7D0G |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.37 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1009.89 |
| ARRAY WIDTH | 63.25 |
| ARRAY HEIGHT | 15.97 |
| RAIL LENGTH | 191.60 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 14.75 |
| PROJECTED PANEL HEIGHT | 6.75 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | KELLEY, SOLAR, ARRAY, -, V1JB |
| SITE ADDRESS | 10410, ORIOLE, LN, PALO, CEDRO, CA, 96073, USA |
| MODULE WIDTH | 47.40 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15298.84 |
| TOTAL WEIGHT | 2810.07 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/d80bf701-0809-4314-8e1e-94fbbea32e9e.pdf |
|
| ID | 8187.00 |
| 3D Solar link |
