LAFB-4×7-14ft

$10,050.11

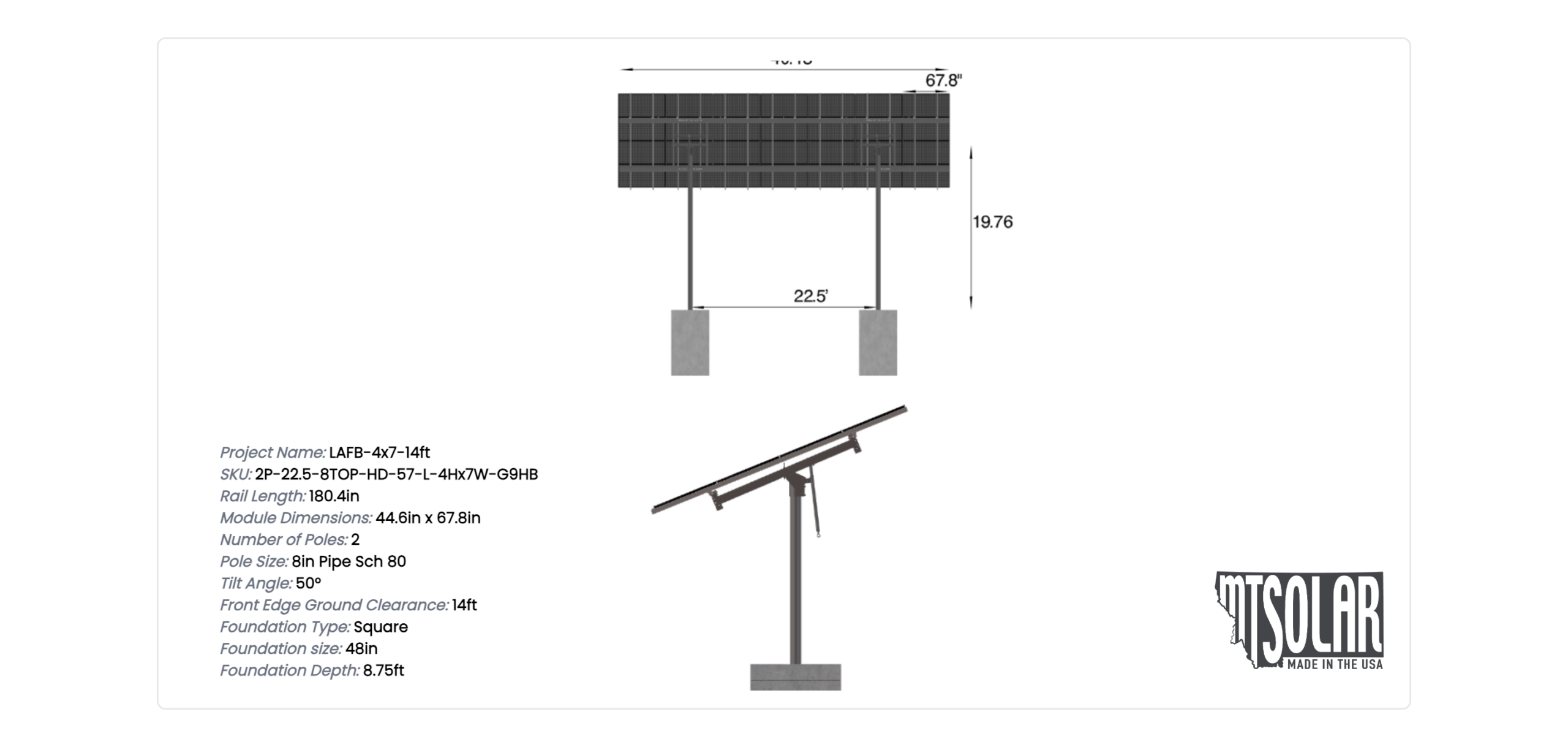

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

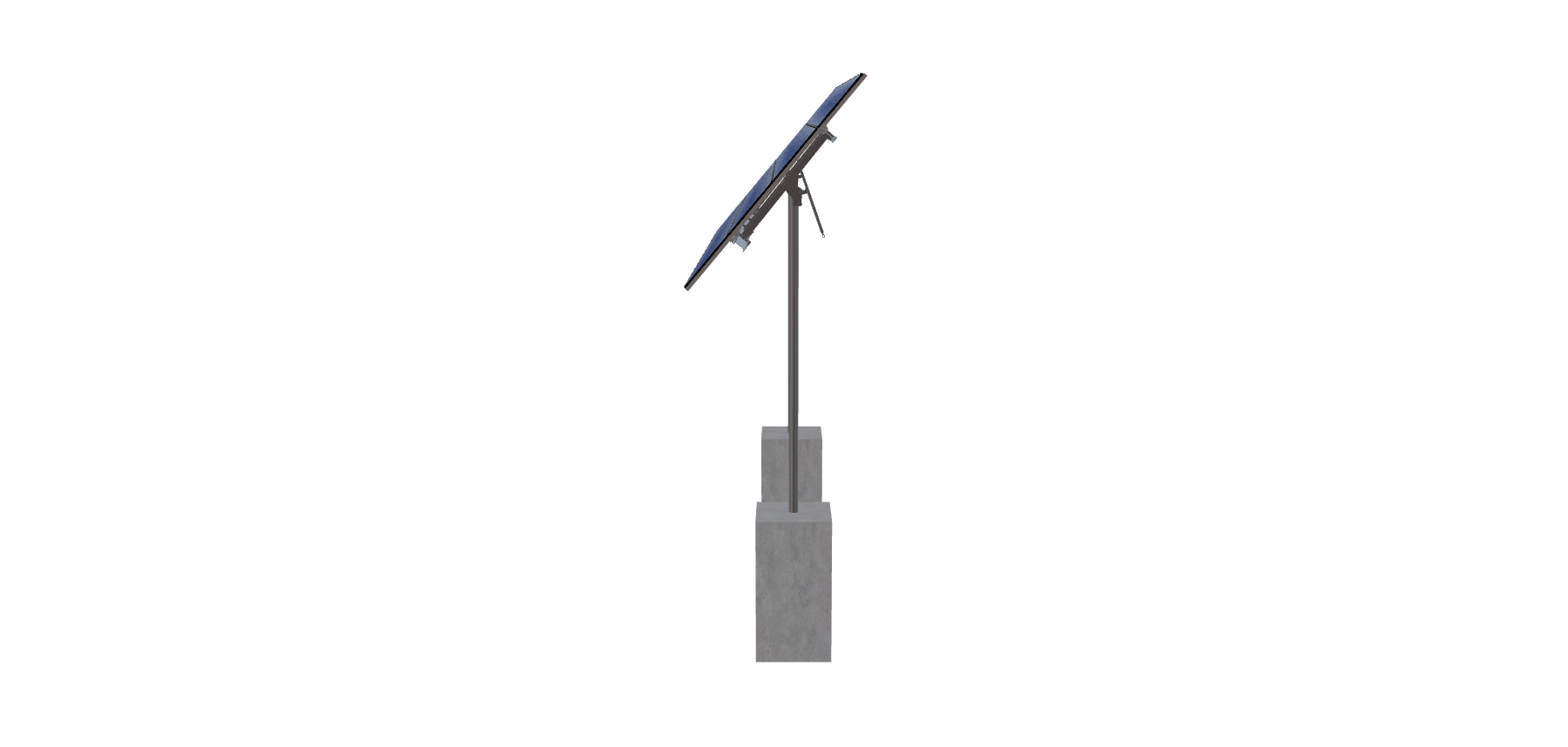

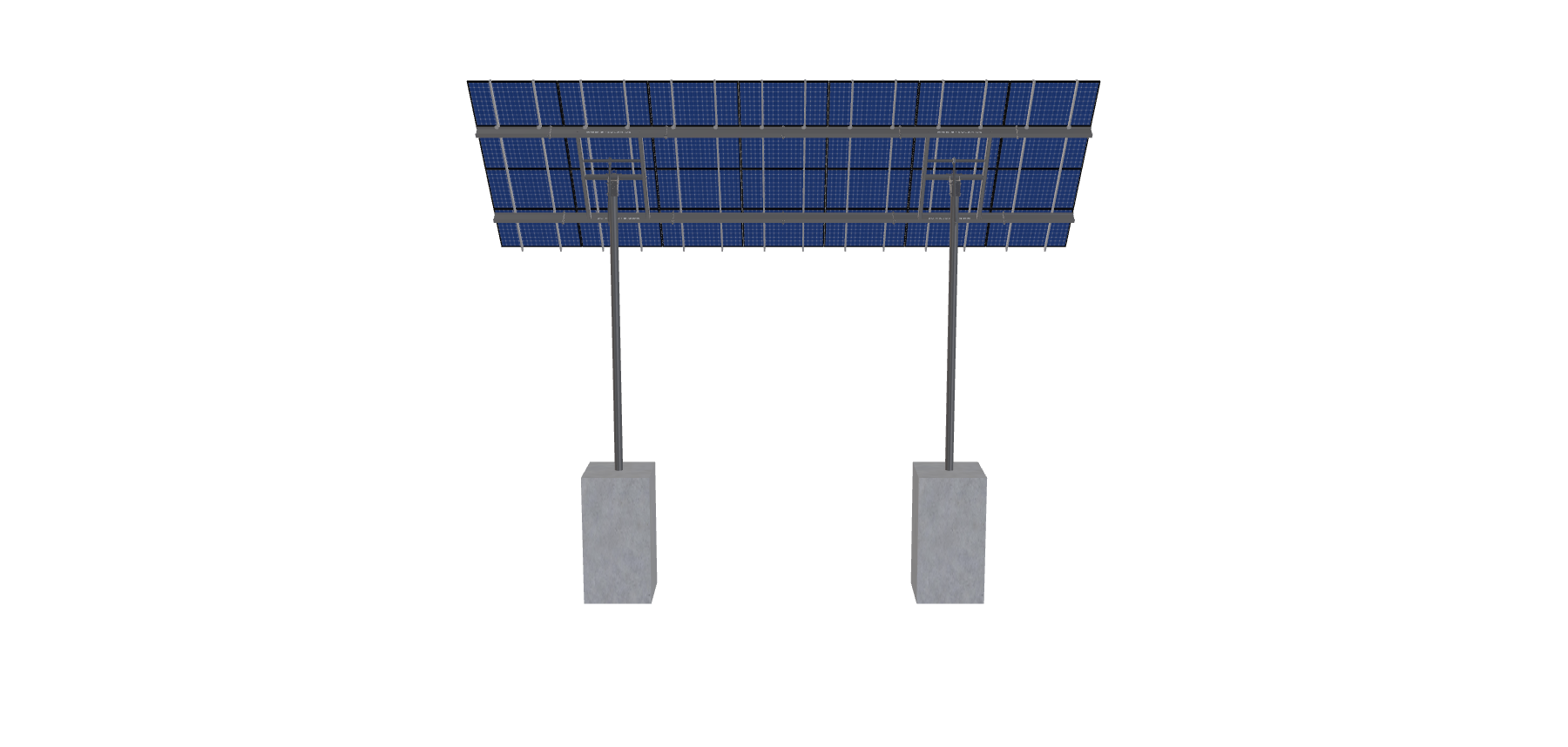

See 3D Model Here

SKU: 2P-22.5-8TOP-HD-57-L-4Hx7W-G9HB Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1844.72 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-8TOP-HD-57-L-4HX7W-G9HB

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

19.76

WING SPAN

57.00

MAX FOUNDATION DEPTH

8.75

TILT ANGLE

50.00

CANTILEVER

474.00

GROUND CLEARANCE

14.00

NO POLES

2.00

MODULE AREA

603.34

ARRAY WIDTH

40.13

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

25.52

PROJECTED PANEL HEIGHT

11.52

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

85.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

DESIGNER NAME
DESIGNER EMAIL

CHRISTINA@MTSOLAR.US

DESIGNER PHONE
PROJECT ID

LAFB-4X7-14FT

SITE ADDRESS

LOWRY, AIR, FORCE, BASE, 776, CAMP, ROAD, MONTEZUMA, CO, 80435, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

7.00

POLE SPACING OVERRIDE

17.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

10050.11

TOTAL WEIGHT

1844.72

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/1ecd59c8-6cd9-4553-bf2e-eb749fb61aff.pdf

ID

8684.00
