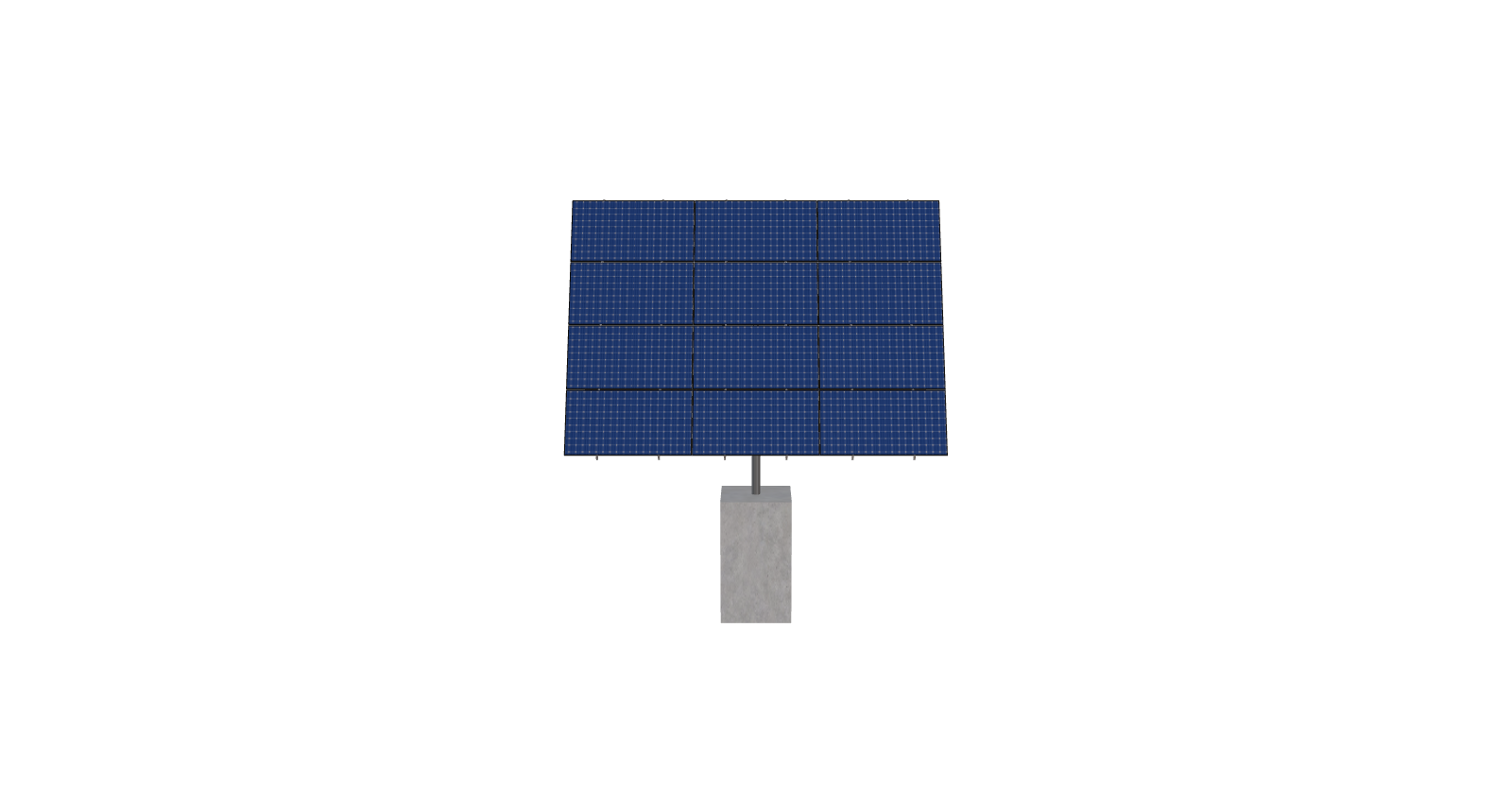

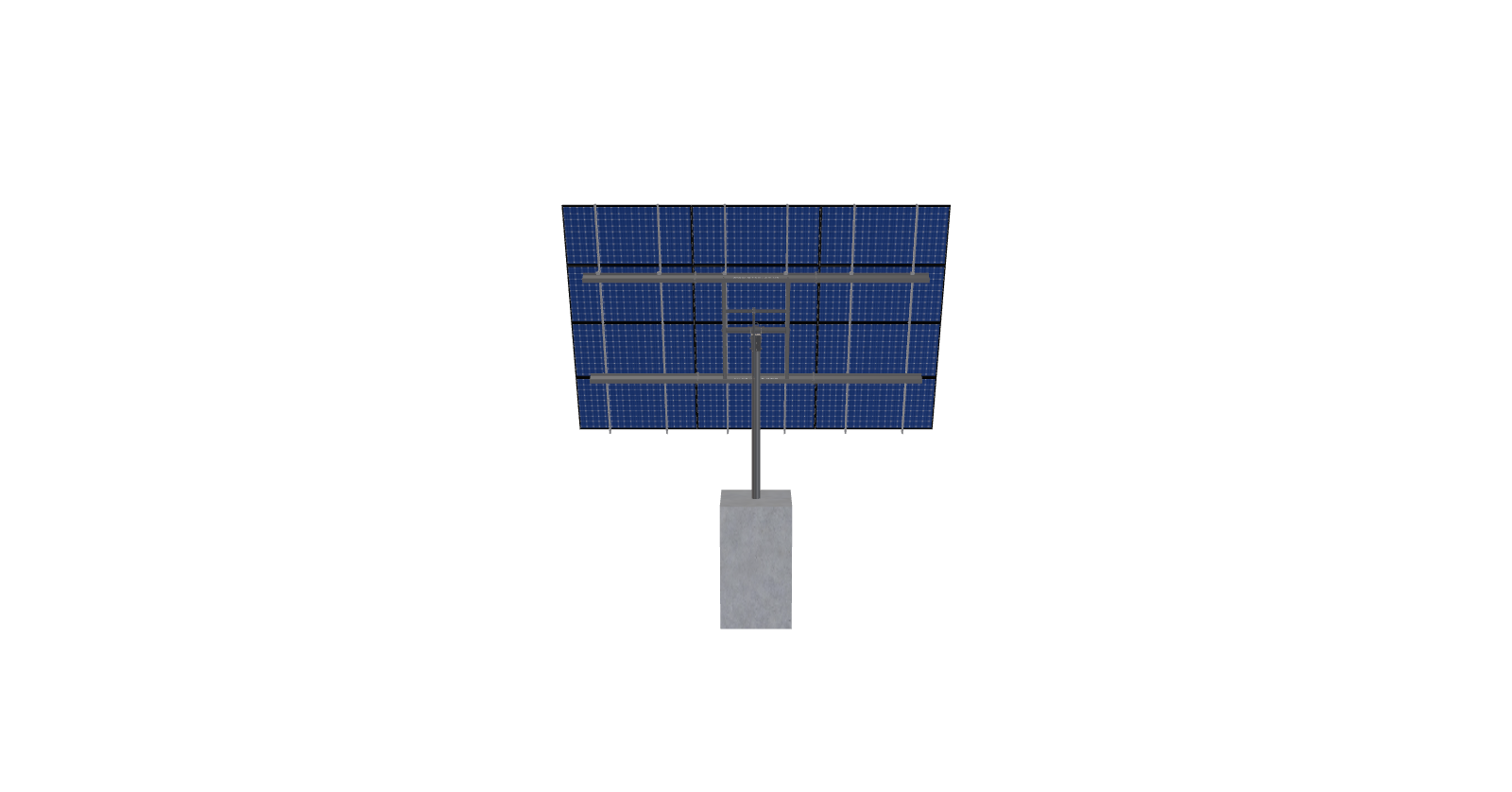

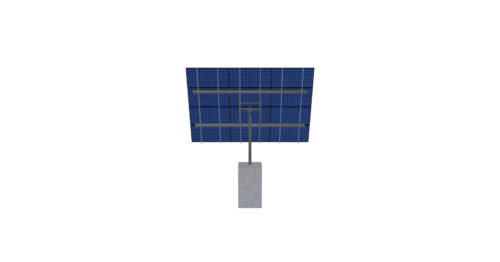

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 94 inches by 51 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Markus-Bockley-v2cu
$4,959.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 94 inches by 51 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 928.4699999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-84-L-4HX3W-STRUTS-BI1E |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.78 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 407.71 |
| ARRAY WIDTH | 23.75 |
| ARRAY HEIGHT | 17.17 |
| RAIL LENGTH | 206.00 |
| MODULE LENGTH | 94.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 18.56 |
| PROJECTED PANEL HEIGHT | 15.56 |
| WIND SPEED OVERRIDE | 103.00 |
| SNOW LOAD OVERRIDE | 90.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MARKUS-BOCKLEY-V2CU |
| SITE ADDRESS | 82, PETERBOROUGH, RD, HANCOCK, NH, 03449, USA |
| MODULE WIDTH | 51.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4959.56 |
| TOTAL WEIGHT | 928.47 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/217b68bc-c9cb-40da-8a9d-5b2fbeae3715.pdf |
|
| ID | 8153.00 |
| 3D Solar link |
