This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.5 inches by 44.5 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

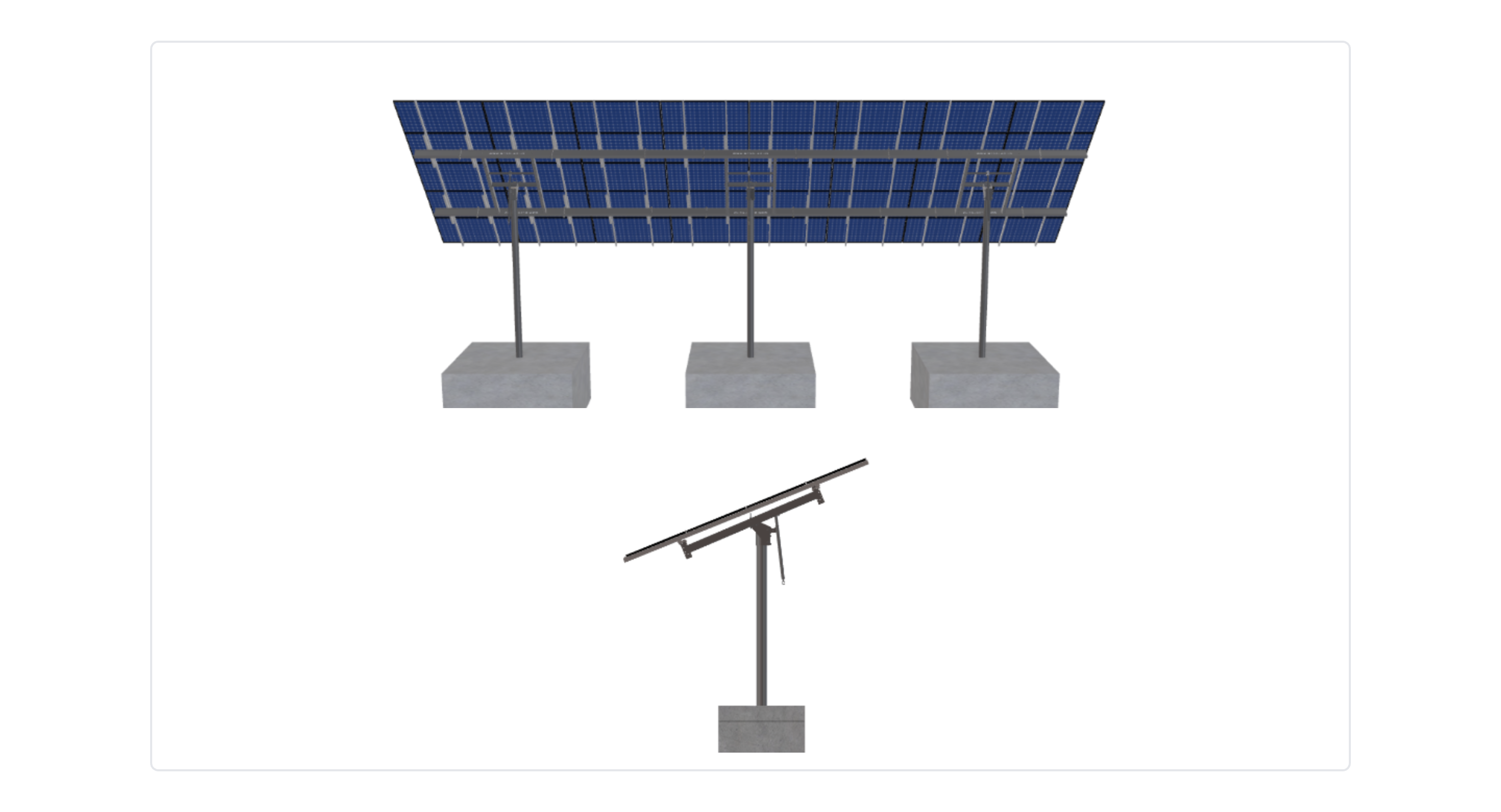

See 3D Model Here
Monner – 8in – V1Jb
$13,840.73
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.5 inches by 44.5 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2731.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-SD-45-L-5HX8W-CHGE |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 14.74 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1043.75 |
| ARRAY WIDTH | 55.67 |
| ARRAY HEIGHT | 18.75 |
| RAIL LENGTH | 225.00 |
| MODULE LENGTH | 82.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 21.41 |
| PROJECTED PANEL HEIGHT | 13.34 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MONNER, -, 8IN, -, V1JB |
| SITE ADDRESS | 14805, MINK, RD, NE, WOODINVILLE, WA, 98077, USA |
| MODULE WIDTH | 44.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 120.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 13840.73 |
| TOTAL WEIGHT | 2731.52 |
| TOTAL PALLETS | 3.00 |
