This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

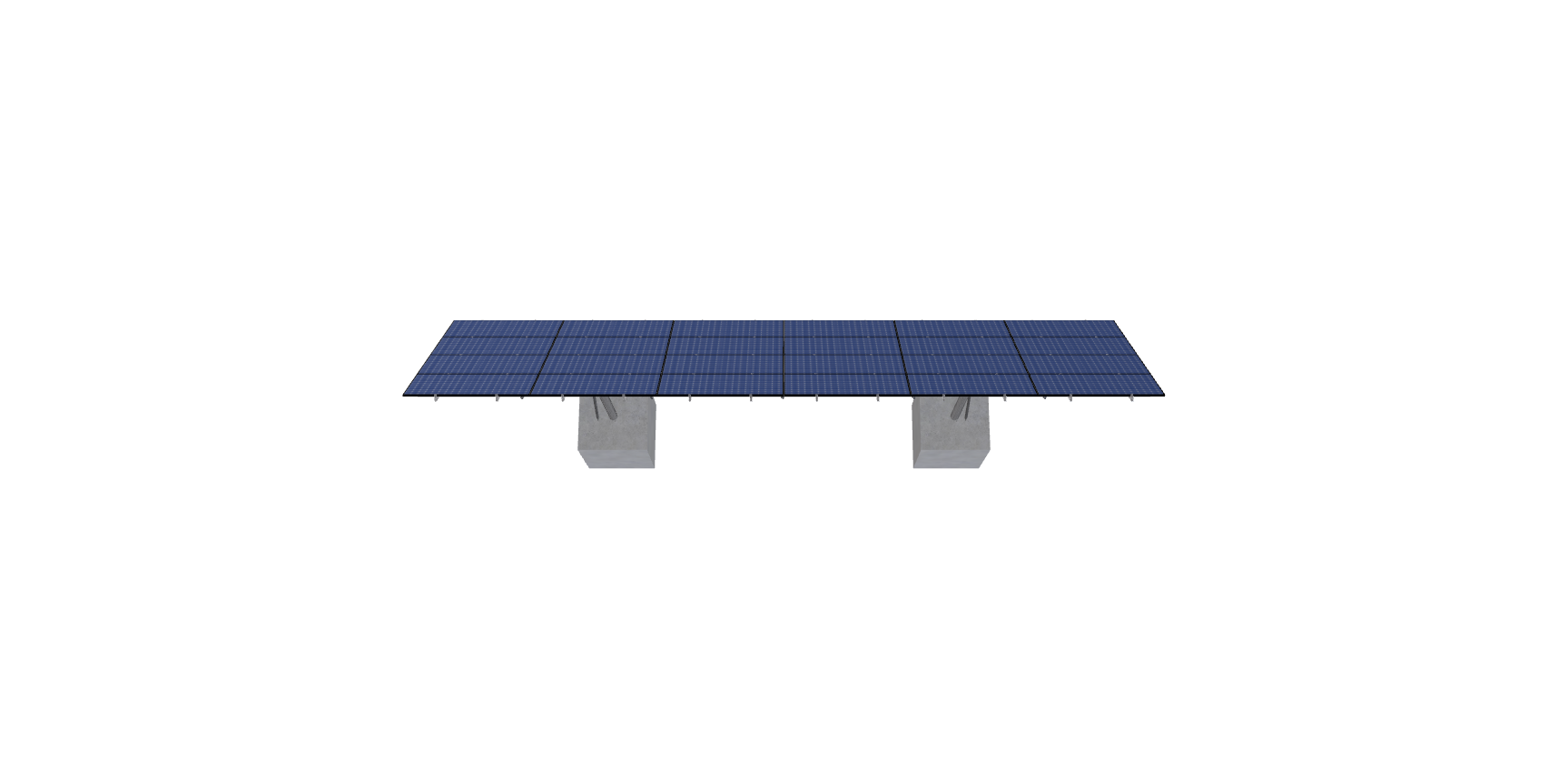

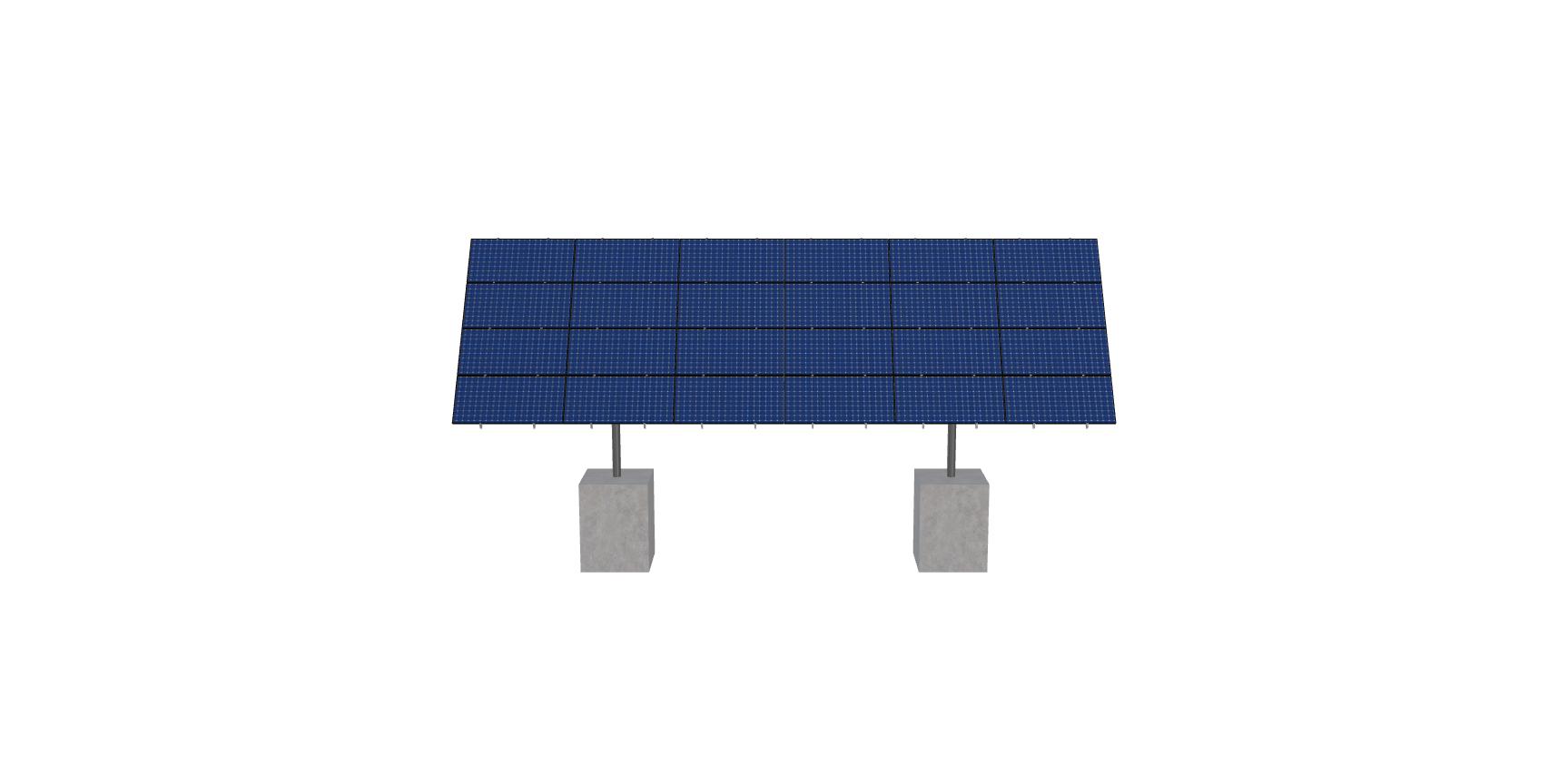

See 3D Model Here
moonridge (Canadian Solar Option)
$8,667.67
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1567.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-72-L-4HX6W-F4KE |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.71 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 504.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 591.47 |
| ARRAY WIDTH | 42.45 |
| ARRAY HEIGHT | 13.93 |
| RAIL LENGTH | 167.20 |
| MODULE LENGTH | 83.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 42.00 |
| GROUND TO TOP | 15.35 |
| PROJECTED PANEL HEIGHT | 11.28 |
| DESIGNER NAME | CURRAN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MOONRIDGE, (CANADIAN, SOLAR, OPTION) |
| SITE ADDRESS | 188, MOONRIDGE, DR, WHITEFISH, MT, 59937, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 68.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8667.67 |
| TOTAL WEIGHT | 1567.32 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/e5543a02-1582-43d1-8d6b-028d5998f053.pdf |
|
| ID | 7933.00 |
| 3D Solar link |
