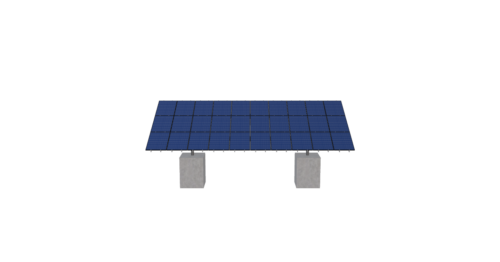

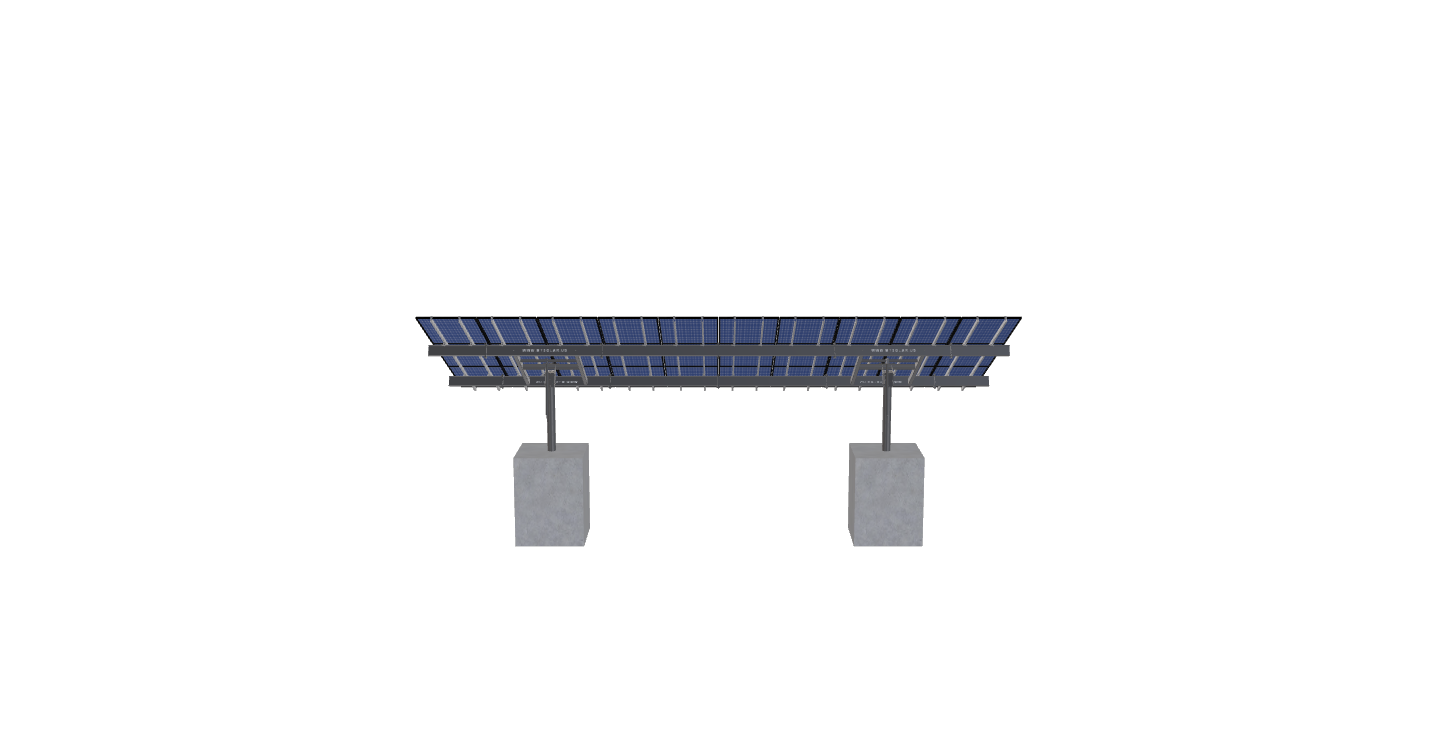

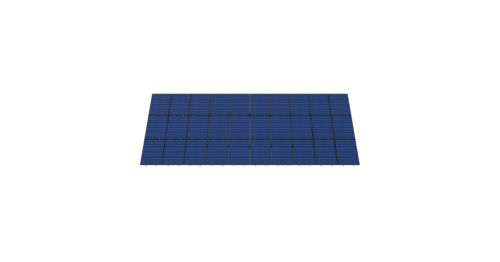

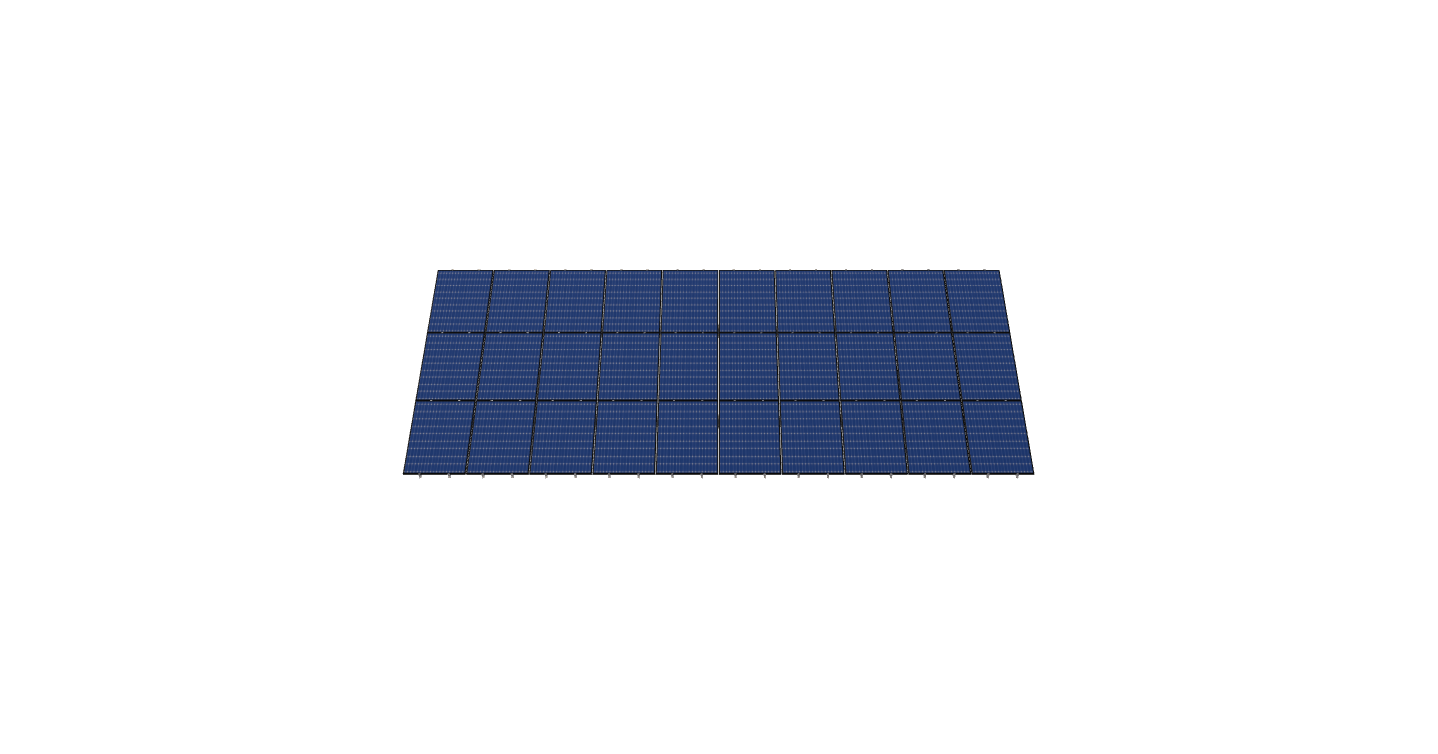

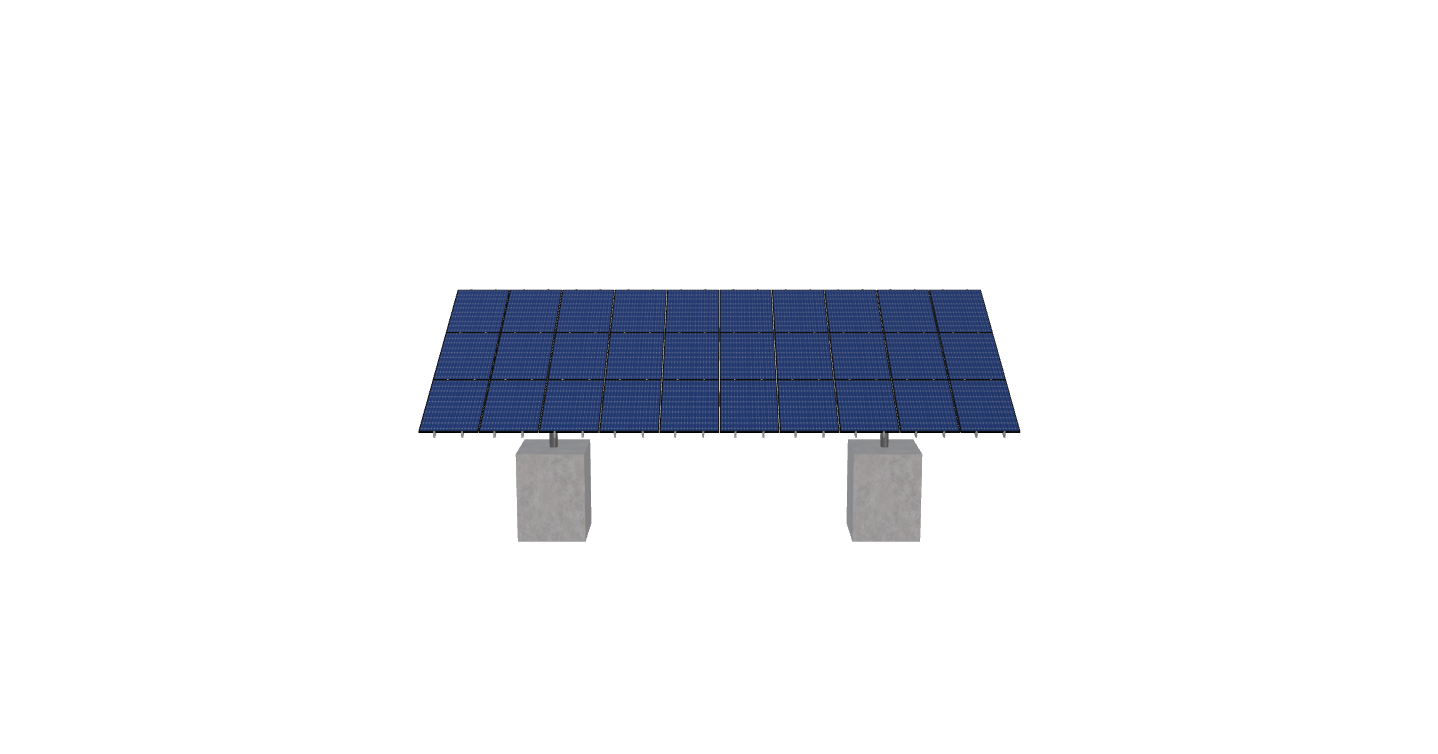

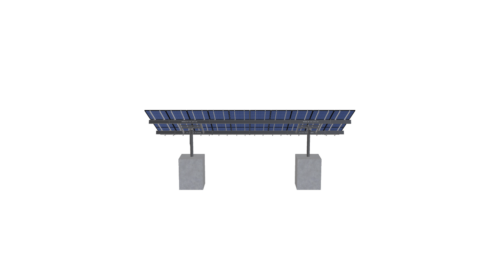

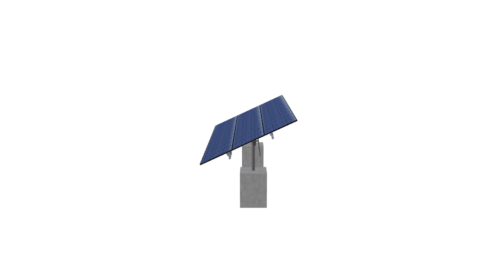

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44.65 inches by 67.8 inches and an array layout of 10 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_08BI5KGCB6DGD
$10,297.81
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44.65 inches by 67.8 inches and an array layout of 10 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

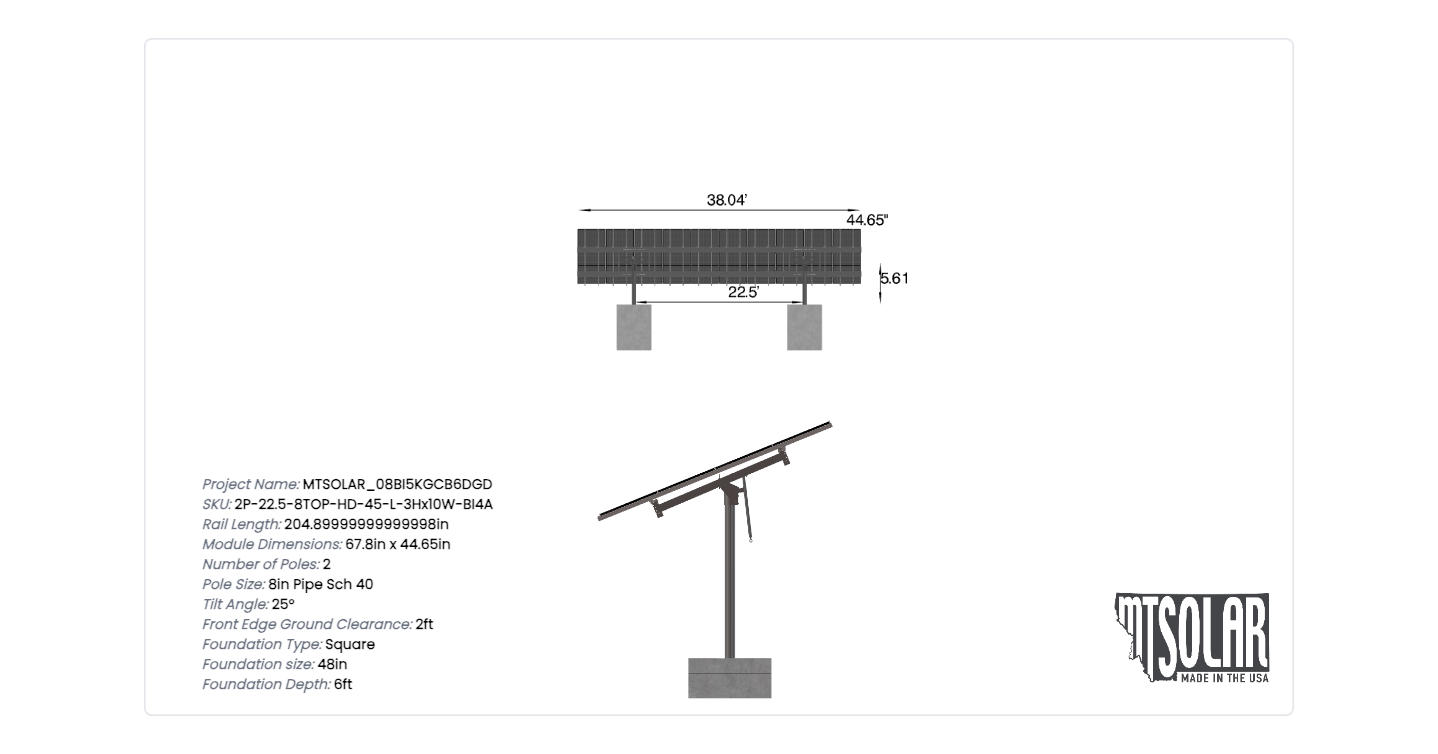

Additional information
| Weight | 1843.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-HD-45-L-3HX10W-BI4A |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 5.61 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 2.00 |
| MODULE AREA | 649.56 |
| ARRAY WIDTH | 38.04 |
| ARRAY HEIGHT | 17.07 |
| RAIL LENGTH | 204.90 |
| MODULE LENGTH | 44.65 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 9.19 |
| PROJECTED PANEL HEIGHT | 7.16 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MTSOLAR, 08BI5KGCB6DGD |
| SITE ADDRESS | PORT, ORANGE, FL, USA |
| MODULE WIDTH | 67.80 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10297.81 |
| TOTAL WEIGHT | 1843.38 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/8b07a9ec-a37d-4a21-85cc-012fcf94b9e4.pdf |
|
| ID | 6350.00 |
| 3D Solar link |
