This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 42 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_0A05FAKEAJ5E1-josh-2-pole
$13,506.77
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 42 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2624.7799999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-10TOP-XD-72-L-5HX7W-GKLK |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 10.99 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 26.80 |
| CANTILEVER | 504.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 2.00 |
| MODULE AREA | 743.75 |
| ARRAY WIDTH | 42.00 |
| ARRAY HEIGHT | 17.71 |
| RAIL LENGTH | 212.50 |
| MODULE LENGTH | 71.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 42.00 |
| GROUND TO TOP | 14.94 |
| PROJECTED PANEL HEIGHT | 7.89 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, 0A05FAKEAJ5E1-JOSH-2-POLE |
| SITE ADDRESS | CLEVELAND, TX, USA |
| MODULE WIDTH | 42.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 12863.59 |
| TOTAL WEIGHT | 2624.78 |
| TOTAL PALLETS | 2.00 |

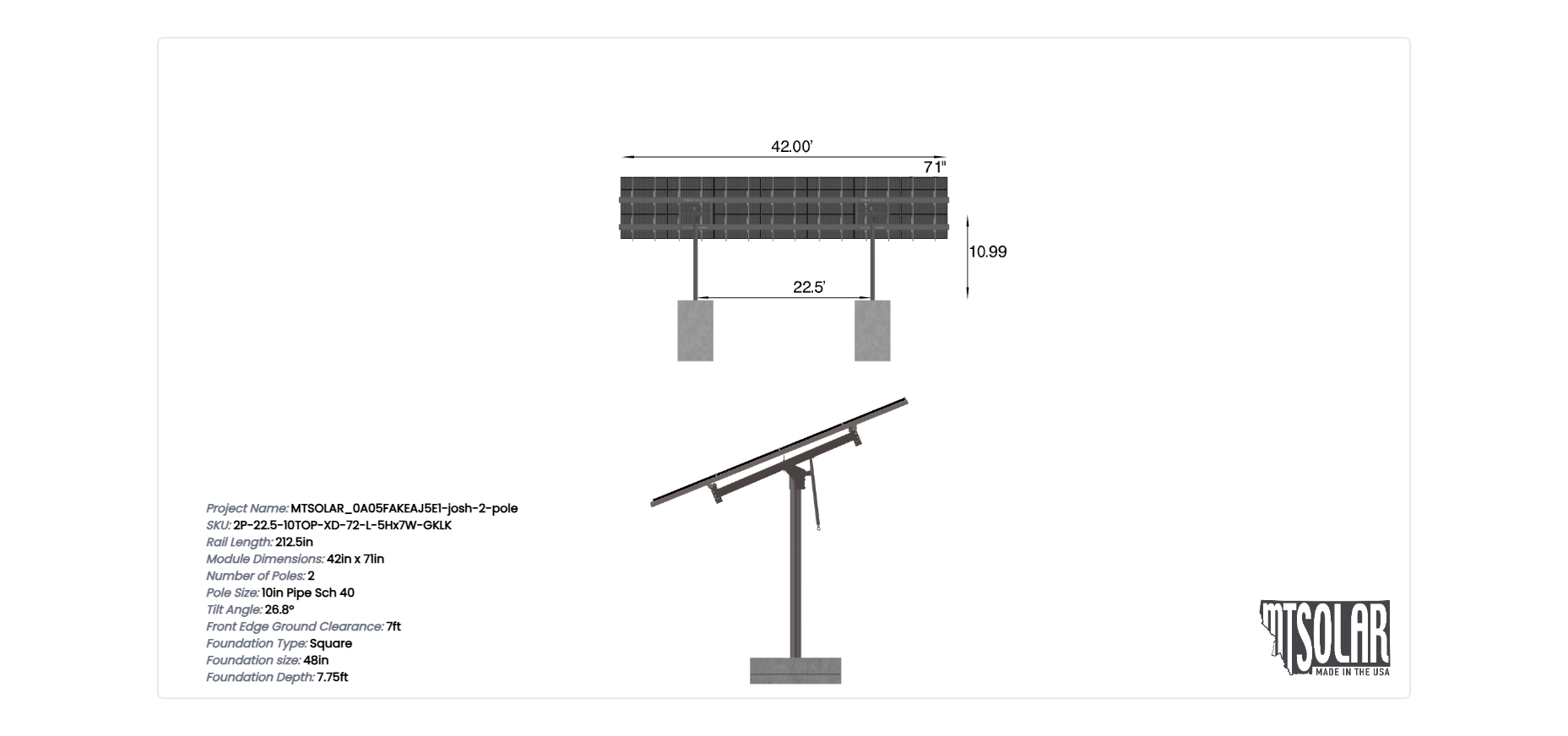

https://skycivquotes.s3.amazonaws.com/77d277c0-4afe-434c-8b1f-f0e705a4ac55.pdf |
|
