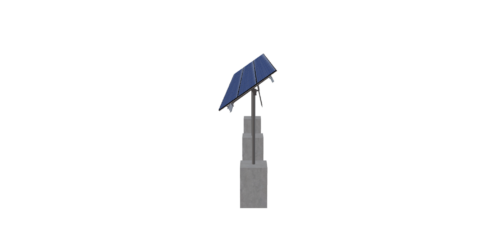

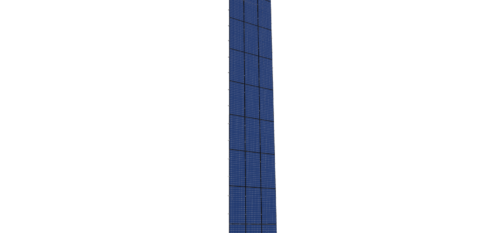

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76.4 inches by 41.3 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_14A79KH5BAKKL
$13,165.32
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76.4 inches by 41.3 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2399.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-SD-72-L-3HX10W-CJ4A |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 13.00 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 774.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 674.02 |
| ARRAY WIDTH | 64.50 |
| ARRAY HEIGHT | 10.45 |
| RAIL LENGTH | 125.40 |
| MODULE LENGTH | 76.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 64.50 |
| GROUND TO TOP | 15.96 |
| PROJECTED PANEL HEIGHT | 5.92 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MTSOLAR, 14A79KH5BAKKL |
| SITE ADDRESS | 895, DRAKES, LN, SUMMERTOWN, TN, 38483, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 13165.32 |
| TOTAL WEIGHT | 2399.20 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/1b2e34dc-b678-4671-88f4-1717c7b4a5e7.pdf |
|
| ID | 3348.00 |
| 3D Solar link |
