MTSOLAR_1H066C7B2B4BB

$3,632.20

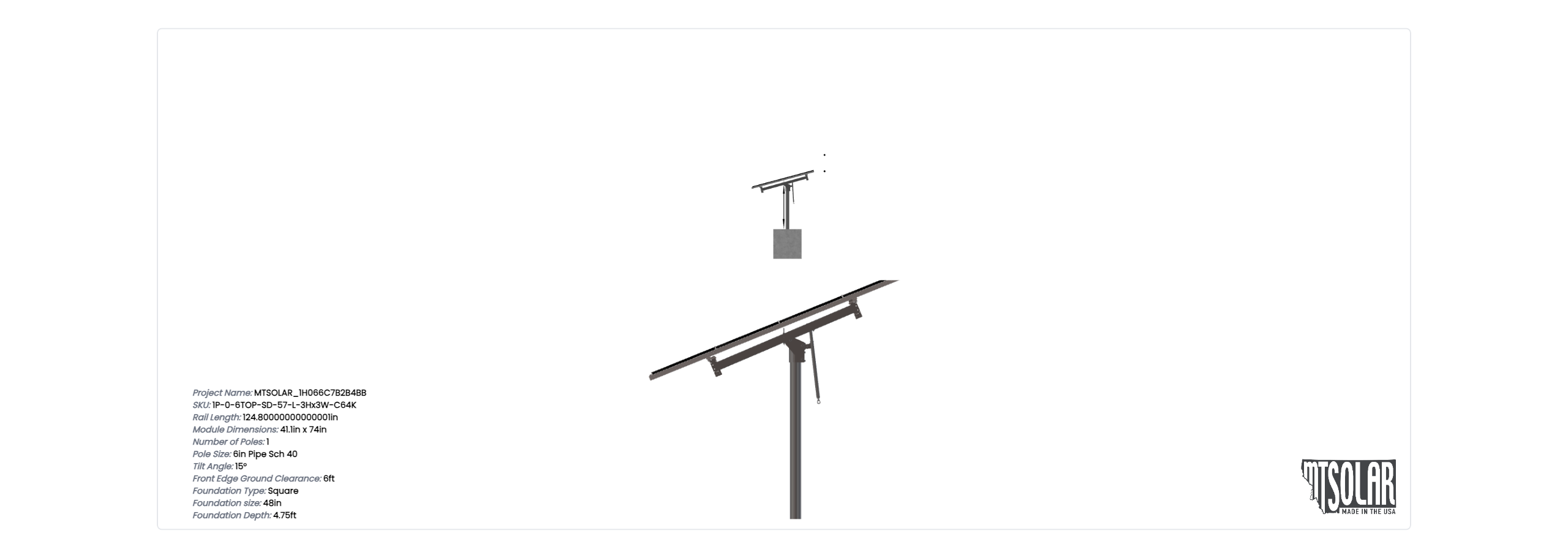

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-57-L-3Hx3W-C64K Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 649.38 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-57-L-3HX3W-C64K

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

7.35

WING SPAN

57.00

MAX FOUNDATION DEPTH

4.75

TILT ANGLE

15.00

CANTILEVER

204.00

GROUND CLEARANCE

6.00

NO POLES

1.00

MODULE AREA

195.00

ARRAY WIDTH

18.75

ARRAY HEIGHT

10.40

RAIL LENGTH

124.80

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

8.68

PROJECTED PANEL HEIGHT

2.66

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 1H066C7B2B4BB

SITE ADDRESS

7468, W, LE, BARON, AVE, LAS, VEGAS, NV, 89178, USA

MODULE WIDTH

41.10

NUMBER ROWS

3.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

3632.20

TOTAL WEIGHT

649.38

TOTAL PALLETS

1.00
