This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96.9 inches by 42.9 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_3C8FC53B0KA7C
$12,203.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96.9 inches by 42.9 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

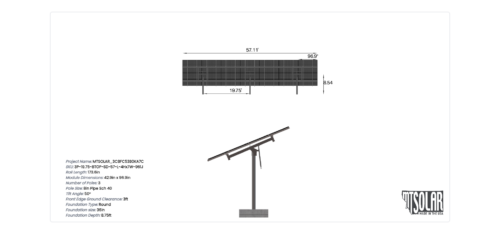

| Weight | 2216.54 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-SD-57-L-4HX7W-961J |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.54 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 3.00 |
| MODULE AREA | 826.17 |
| ARRAY WIDTH | 57.11 |
| ARRAY HEIGHT | 14.47 |
| RAIL LENGTH | 173.60 |
| MODULE LENGTH | 96.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 14.08 |
| PROJECTED PANEL HEIGHT | 11.08 |
| DESIGNER NAME | JAMES, FOLTZ |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4408123872.00 |
| PROJECT ID | MTSOLAR, 3C8FC53B0KA7C |
| SITE ADDRESS | 9103, LEET, RD, NORTH, EAST, PA, 16428, USA |
| MODULE WIDTH | 42.90 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 12203.34 |
| TOTAL WEIGHT | 2216.54 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/9716d300-c702-40d9-ace7-d0126a10c68d.pdf |
|
| ID | 8563.00 |
| 3D Solar link |
