This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 4 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_3EK1KH8D774D
$4,435.12
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 4 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 792.1800000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-84-L-3HX4W-LII8 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 7.06 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 90.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 1.00 |
| MODULE AREA | 222.75 |
| ARRAY WIDTH | 22.00 |
| ARRAY HEIGHT | 10.13 |
| RAIL LENGTH | 121.50 |
| MODULE LENGTH | 65.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 12.06 |
| PROJECTED PANEL HEIGHT | 10.00 |
| PROJECT ID | MTSOLAR, 3EK1KH8D774D |
| SITE ADDRESS | MADERA, CA, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 50.00 |
| SNOW LOAD OVERRIDE | 10.00 |
| DIRECT SNOW LOAD | TRUE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 4435.12 |
| TOTAL WEIGHT | 792.18 |
| TOTAL PALLETS | 1.00 |

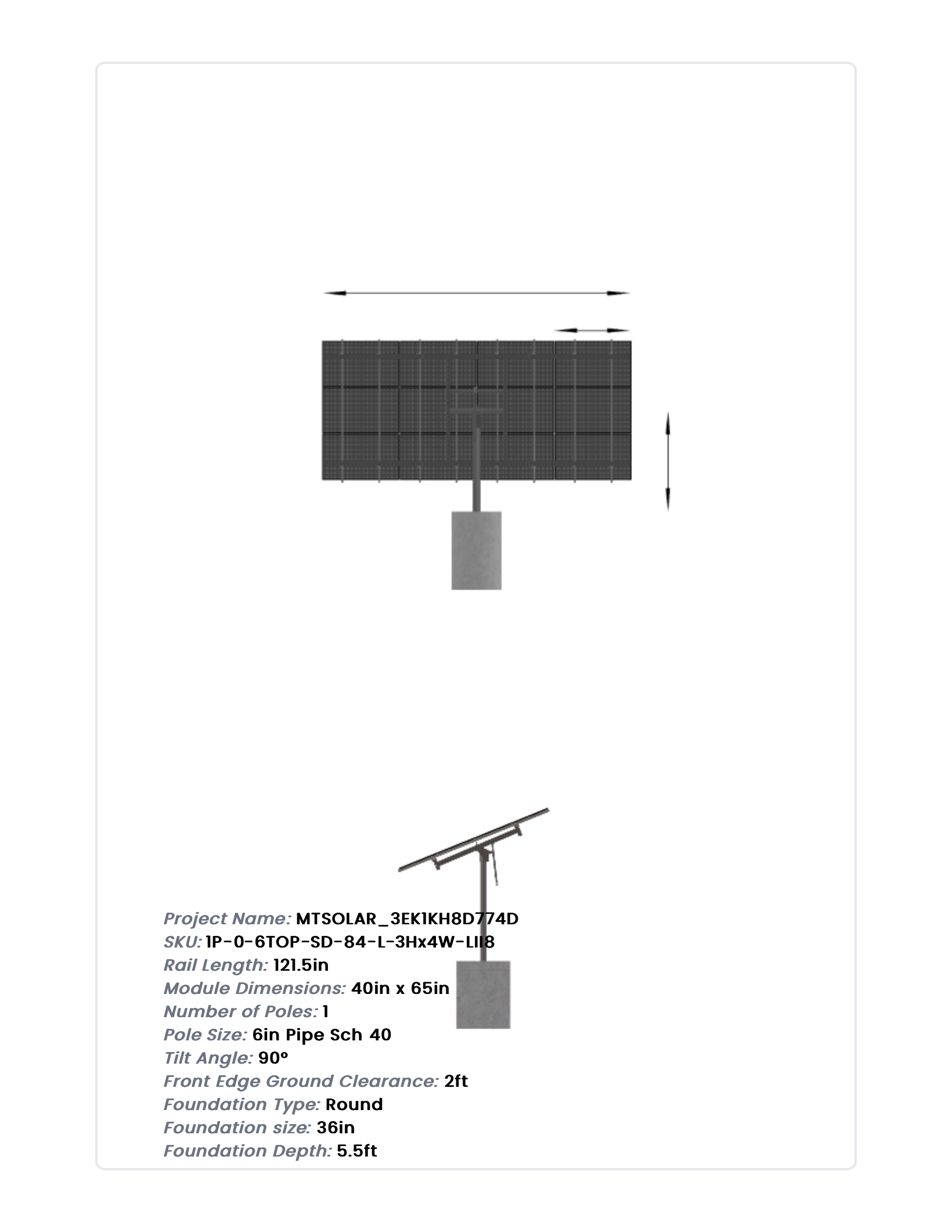

https://skycivquotes.s3.amazonaws.com/e4341397-7152-44a1-a790-43aa2a7d394d.pdf |
|
