MTSOLAR_3JA425E0BA9BD

$13,450.57

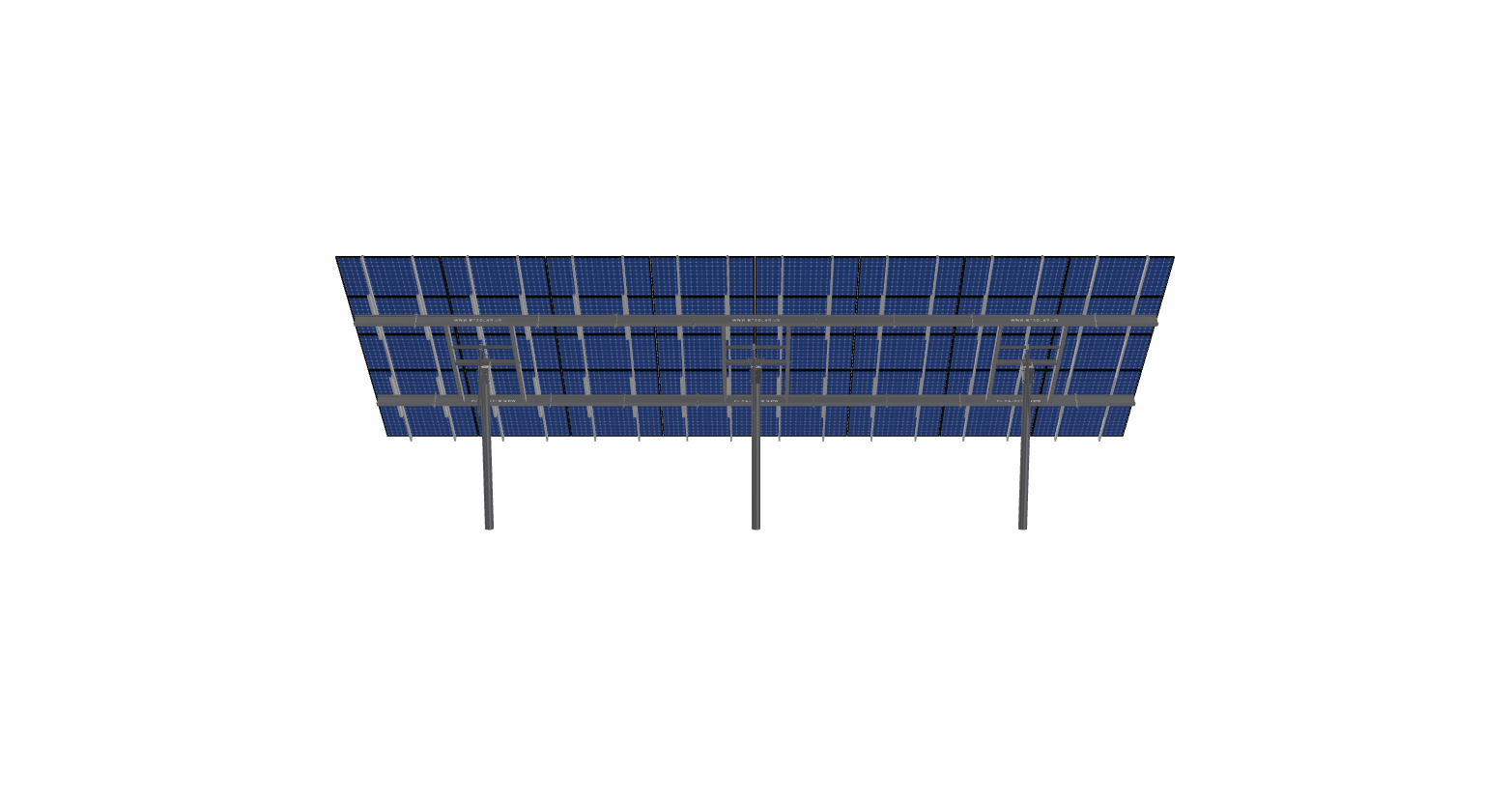

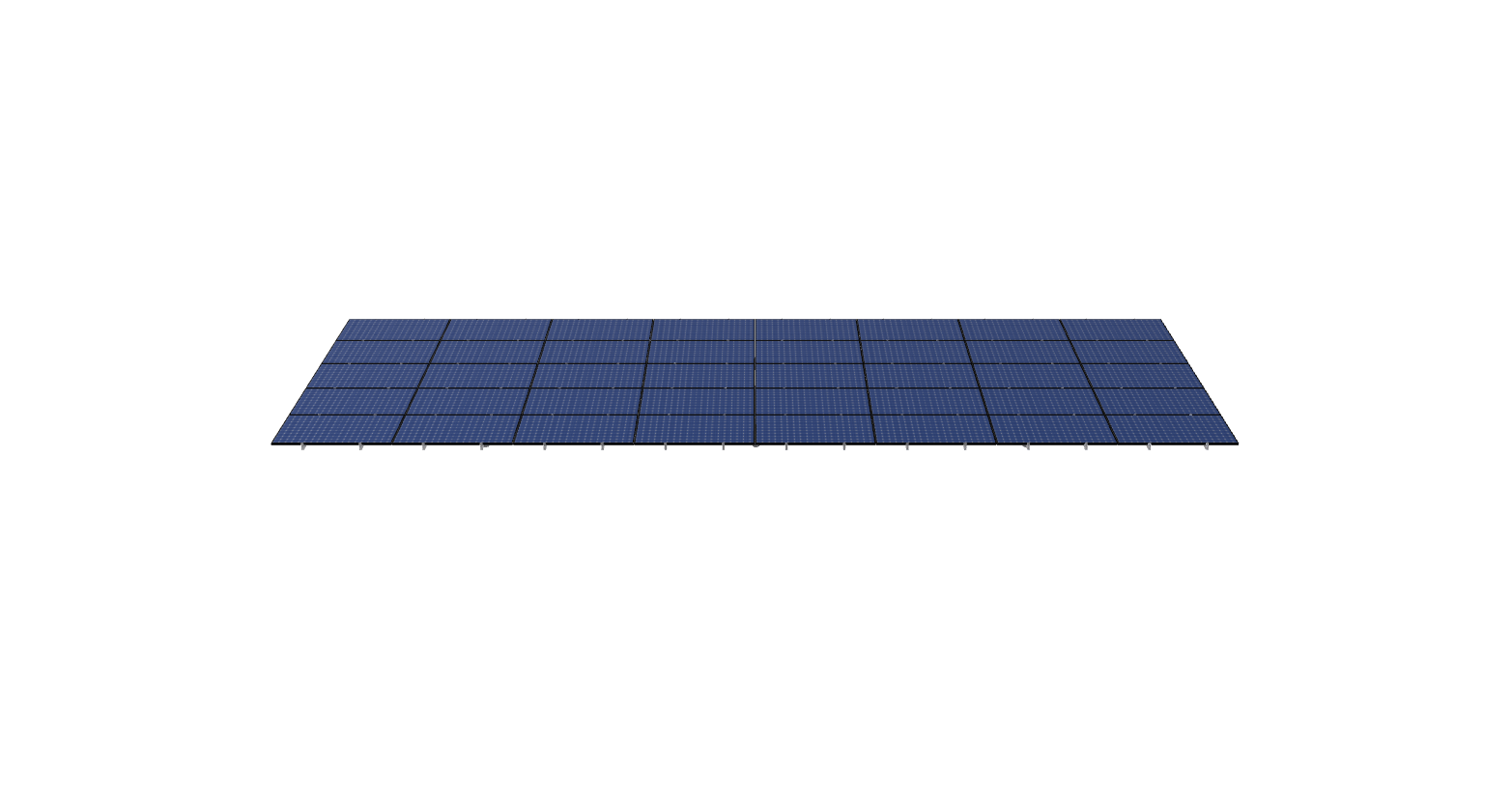

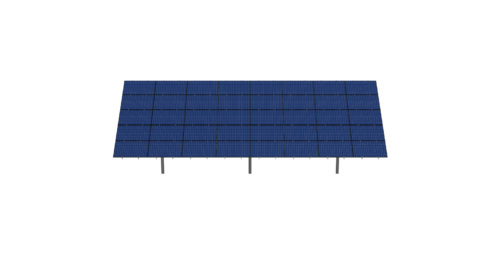

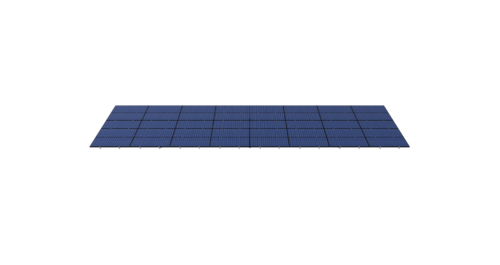

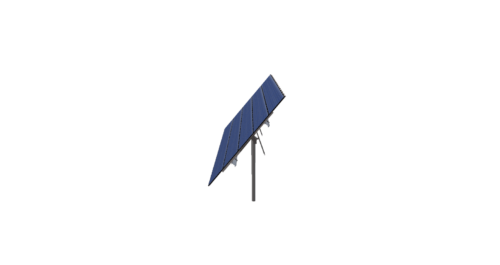

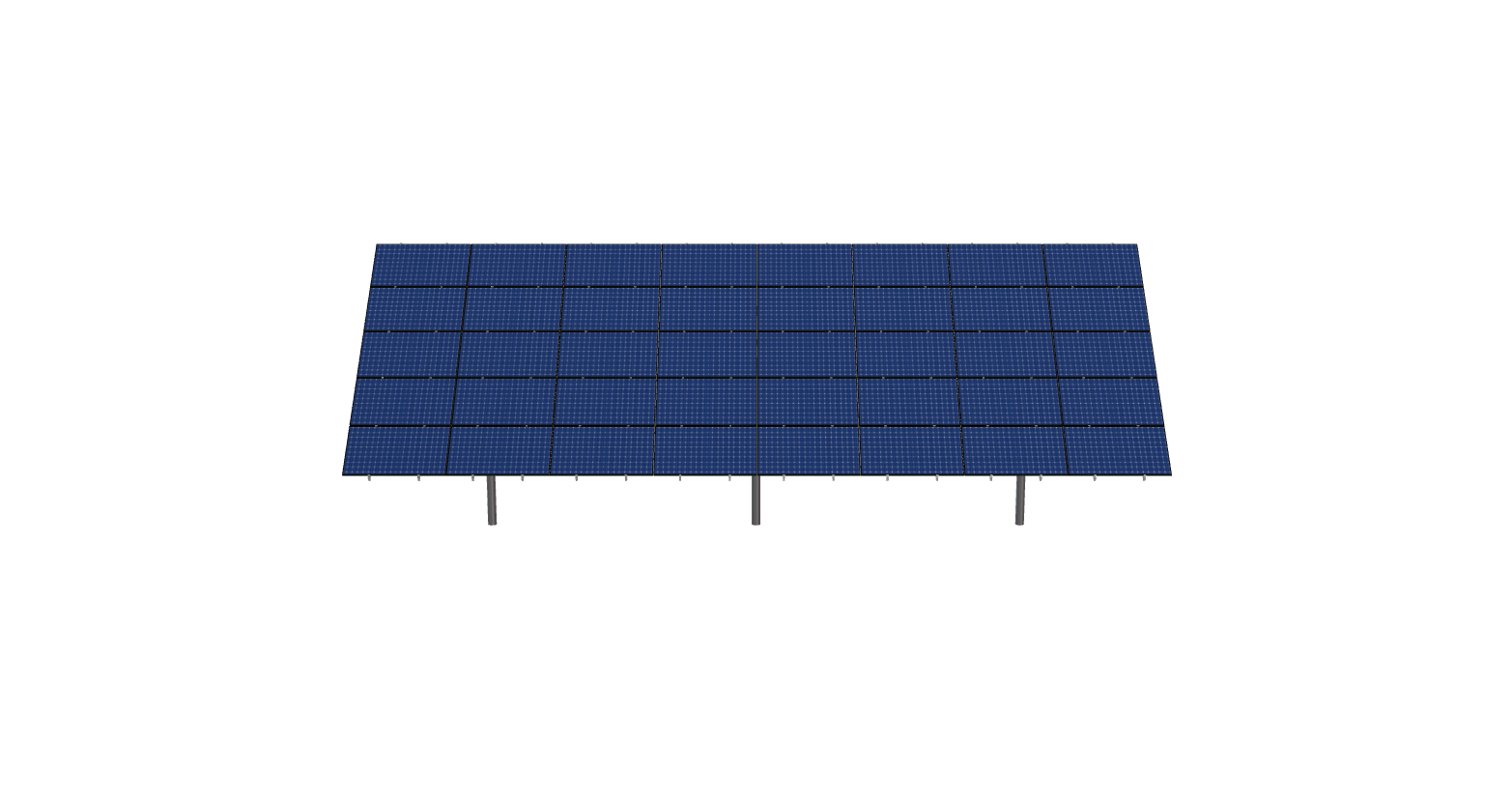

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

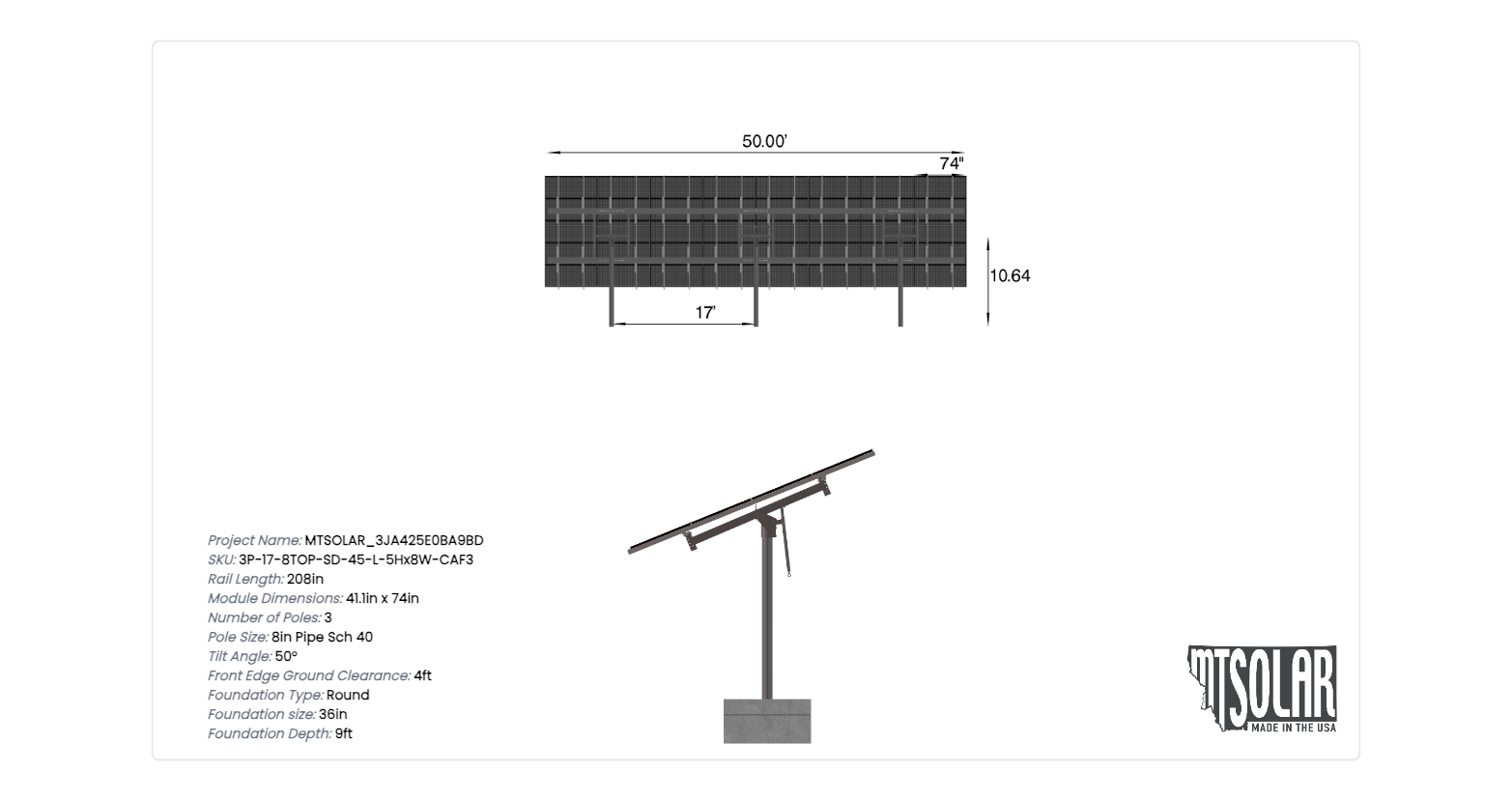

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-17-8TOP-SD-45-L-5Hx8W-CAF3 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2632.52 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-8TOP-SD-45-L-5HX8W-CAF3

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

10.64

WING SPAN

45.00

MAX FOUNDATION DEPTH

9.00

TILT ANGLE

50.00

CANTILEVER

588.00

GROUND CLEARANCE

4.00

NO POLES

3.00

MODULE AREA

866.67

ARRAY WIDTH

50.00

ARRAY HEIGHT

17.33

RAIL LENGTH

208.00

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

49.00

GROUND TO TOP

17.20

PROJECTED PANEL HEIGHT

13.12

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 3JA425E0BA9BD

SITE ADDRESS

3750, CHRISTOPHER, BRIGHTON, MI, 48114, USA

MODULE WIDTH

41.10

NUMBER ROWS

5.00

NUMBER COLUMNS

8.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

13450.57

TOTAL WEIGHT

2632.52

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/4c3632b7-f0c5-4b19-a293-66b31a0ce65c.pdf

ID

6967.00
