MTSOLAR_5H69K7AIBC6F

$12,772.90

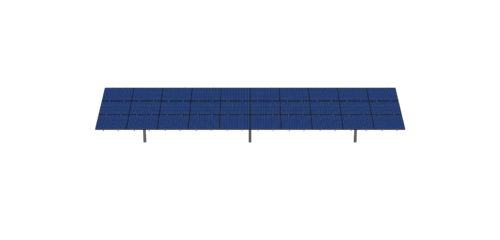

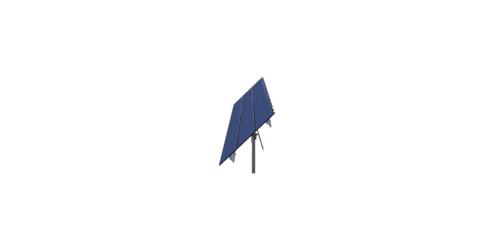

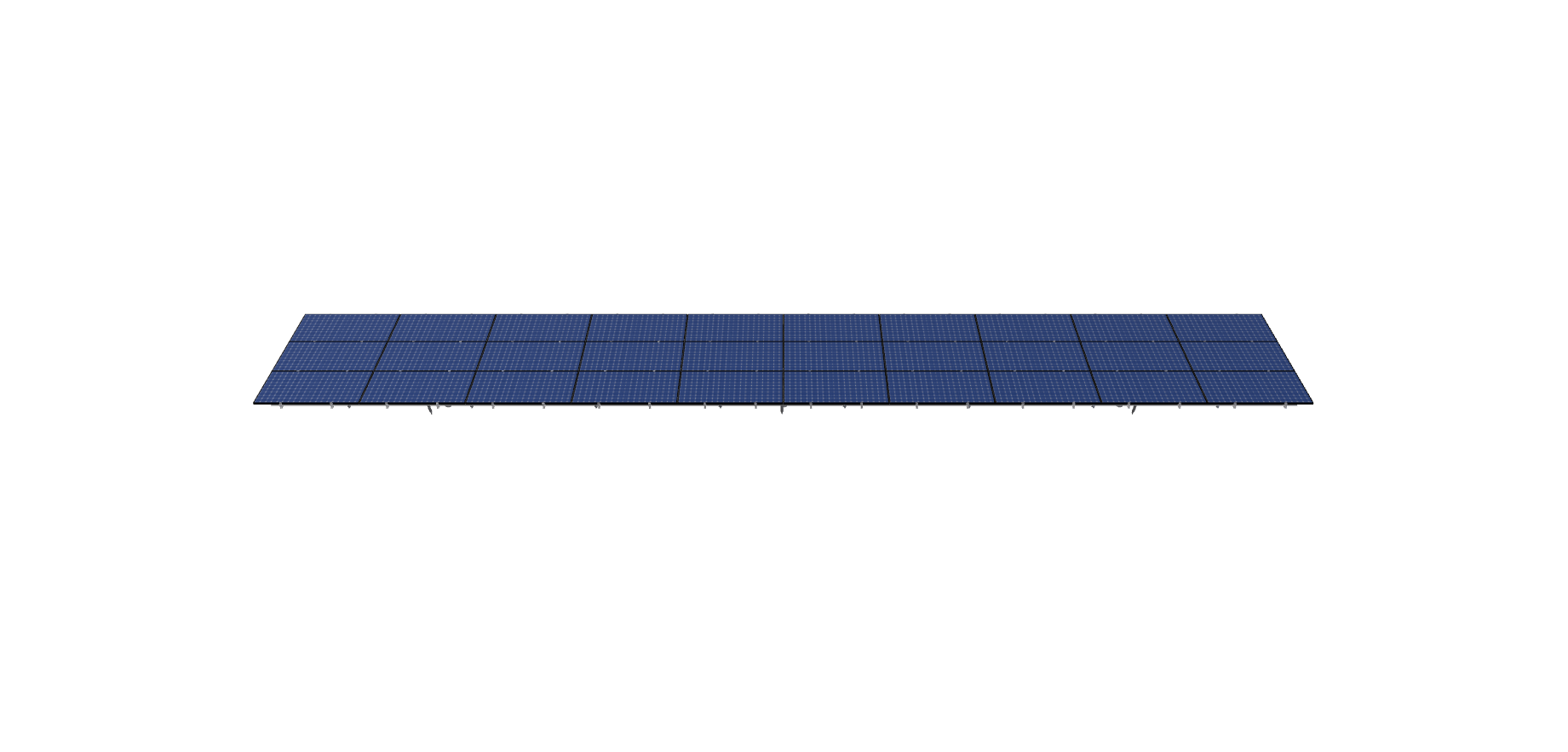

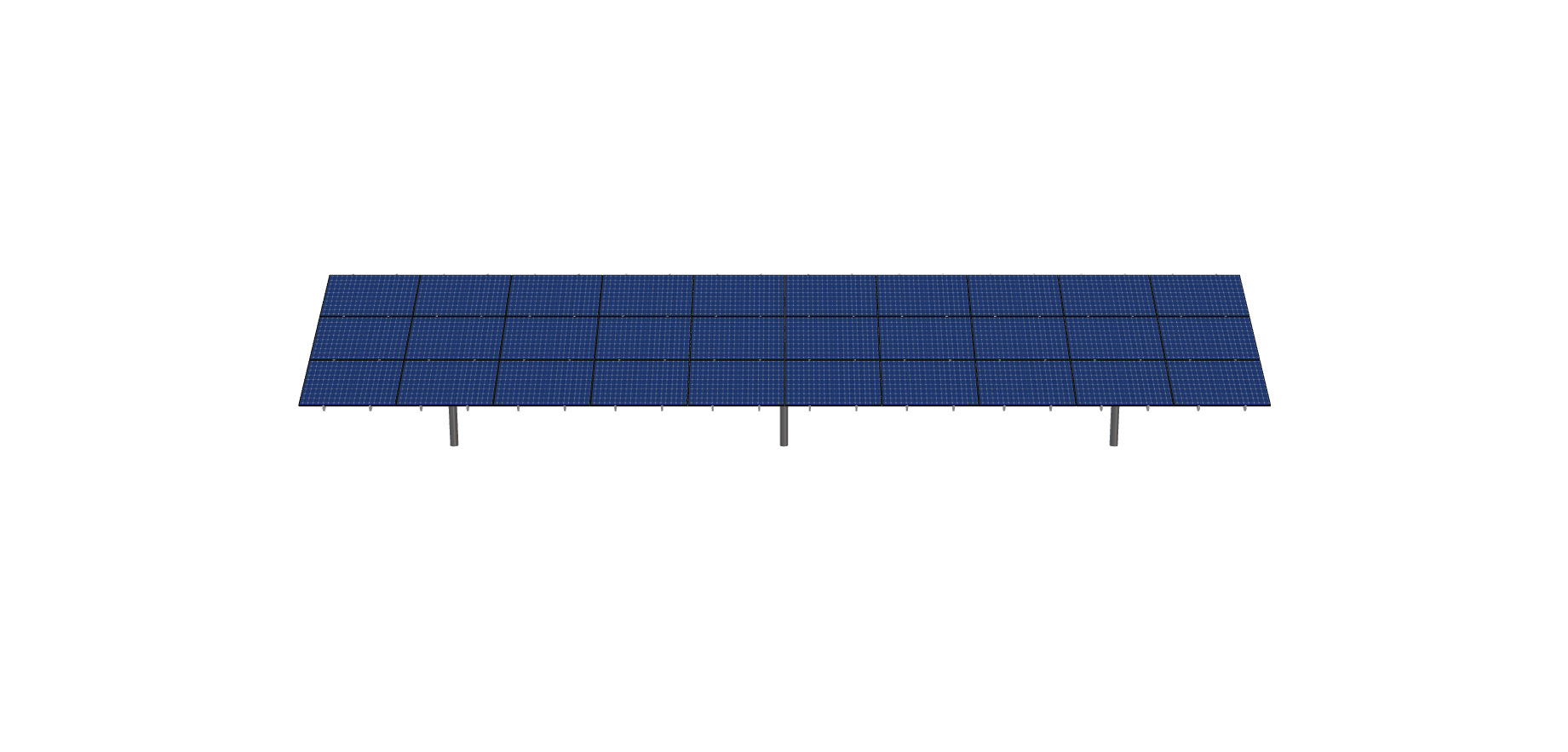

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.9 inches by 44.6 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

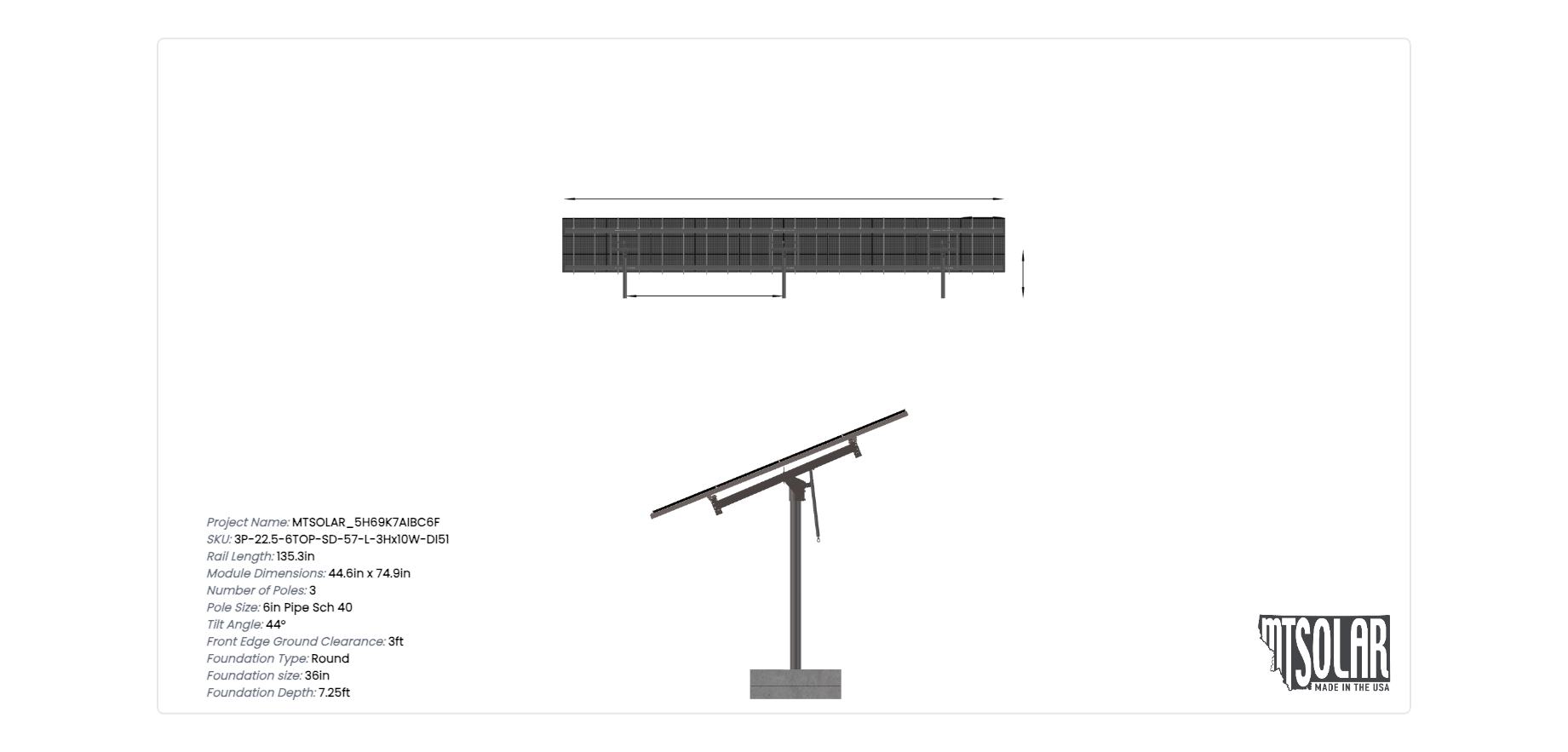

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-22.5-6TOP-SD-57-L-3Hx10W-DI51 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.9 inches by 44.6 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2309.2 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-6TOP-SD-57-L-3HX10W-DI51

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

6.92

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.25

TILT ANGLE

44.00

CANTILEVER

744.00

GROUND CLEARANCE

3.00

NO POLES

3.00

MODULE AREA

713.14

ARRAY WIDTH

63.25

ARRAY HEIGHT

11.28

RAIL LENGTH

135.30

MODULE LENGTH

74.90

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

62.00

GROUND TO TOP

10.79

PROJECTED PANEL HEIGHT

7.75

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 5H69K7AIBC6F

SITE ADDRESS

8819, 146TH, ST, CT, E, PUYALLUP, WA, 98375, USA

MODULE WIDTH

44.60

NUMBER ROWS

3.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

12772.90

TOTAL WEIGHT

2309.20

TOTAL PALLETS

3.00
