This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 39 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

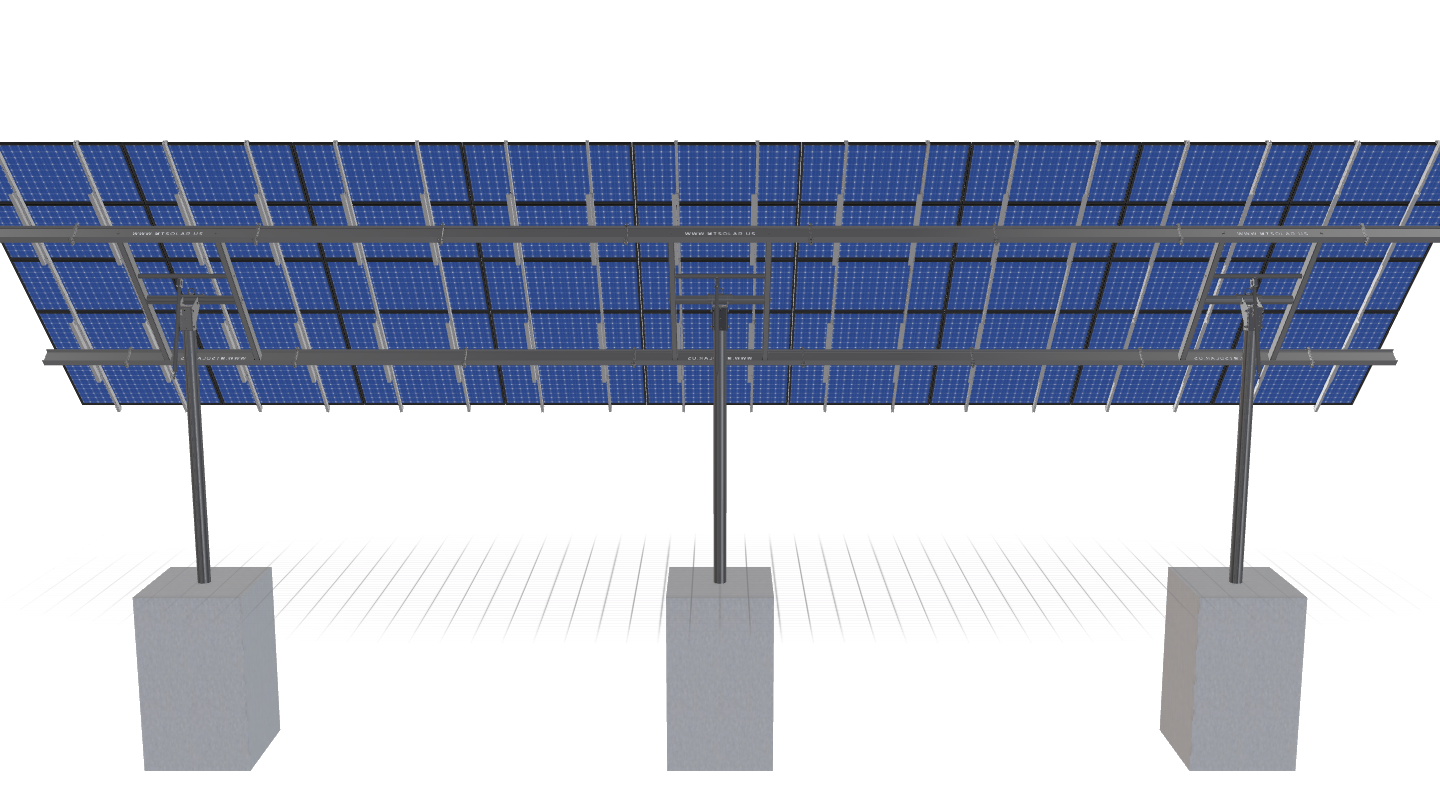

See 3D Model Here
MTSOLAR_7842B2F77K3F-RevE
$16,392.75
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 39 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

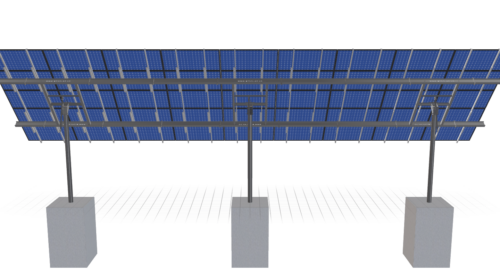

See 3D Model Here
Additional information
Weight | 3318.61 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-22.5-8TOP-HD-45-L-5HX9W-0375 |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 12.30 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 7.75 |
TILT ANGLE | 50.00 |
CANTILEVER | 720.00 |
GROUND CLEARANCE | 6.00 |
NO POLES | 3.00 |
MODULE AREA | 987.50 |
ARRAY WIDTH | 60.00 |
ARRAY HEIGHT | 16.46 |
RAIL LENGTH | 197.50 |
MODULE LENGTH | 79.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 60.00 |
GROUND TO TOP | 18.53 |
PROJECTED PANEL HEIGHT | 12.45 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | MTSOLAR, 7842B2F77K3F-REVE |
SITE ADDRESS | 100, E, MAIN, ST, MANDAN, ND, 58554, USA |
MODULE WIDTH | 39.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 9.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 16392.75 |
TOTAL WEIGHT | 3318.61 |
TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/27fd437c-9d83-4556-9d9d-23ec01ecafd3.pdf |
|
ID | 888.00 |
3D Solar link |
