This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.85 inches by 44.68 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_8J1I23458HDD
$9,708.24
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.85 inches by 44.68 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

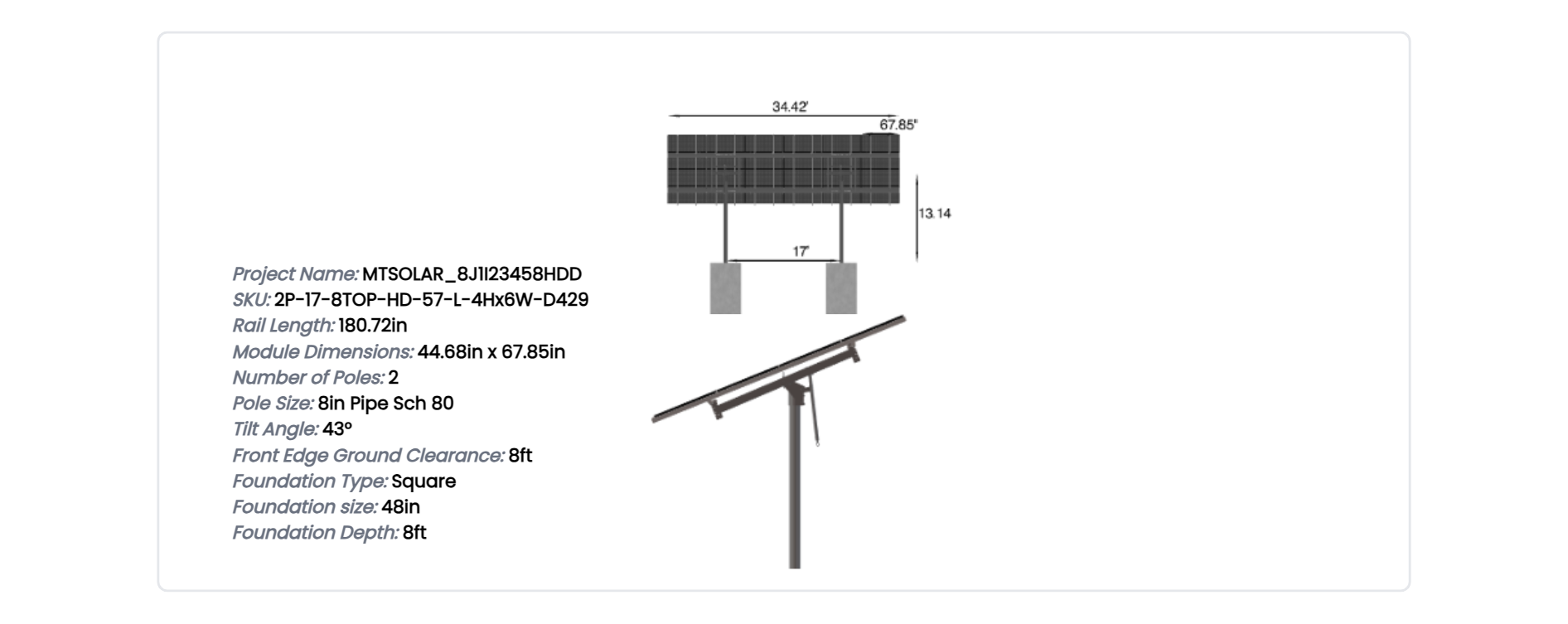

| Weight | 1734.5 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-8TOP-HD-57-L-4HX6W-D429 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 13.14 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 43.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 518.44 |
| ARRAY WIDTH | 34.42 |
| ARRAY HEIGHT | 15.06 |
| RAIL LENGTH | 180.72 |
| MODULE LENGTH | 67.85 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 18.27 |
| PROJECTED PANEL HEIGHT | 10.27 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | GREG, ROSSEL |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 6303736230.00 |
| PROJECT ID | MTSOLAR, 8J1I23458HDD |
| SITE ADDRESS | 30, MOUNTAIN, TOP, TRL, MINERAL, WELLS, TX, 76067, USA |
| MODULE INFO | MISSION, SOLAR, 410W, X, 24, 4X6 |
| MODULE WIDTH | 44.68 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9708.24 |
| TOTAL WEIGHT | 1734.50 |
| TOTAL PALLETS | 2.00 |
