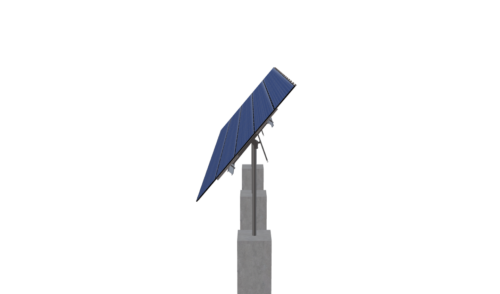

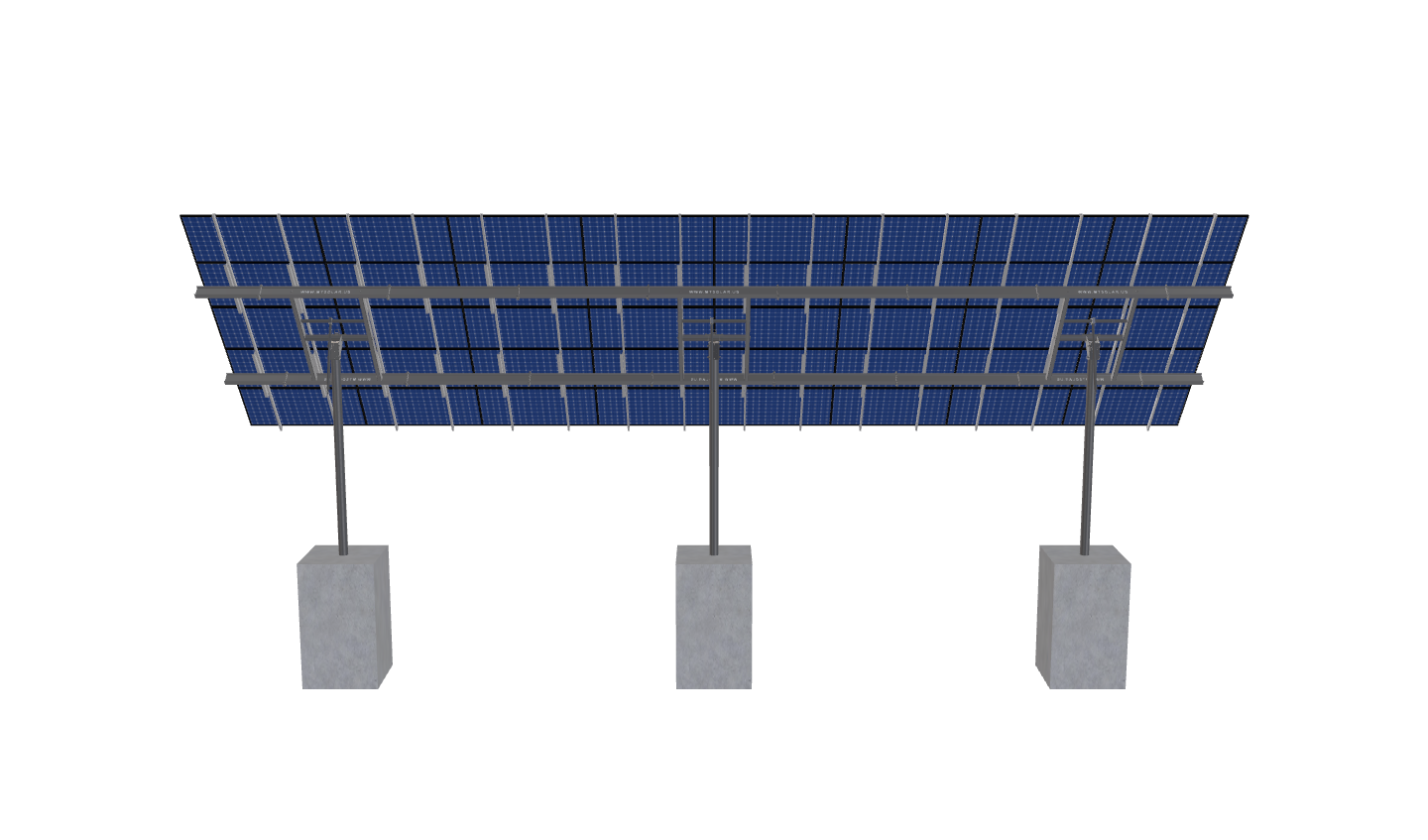

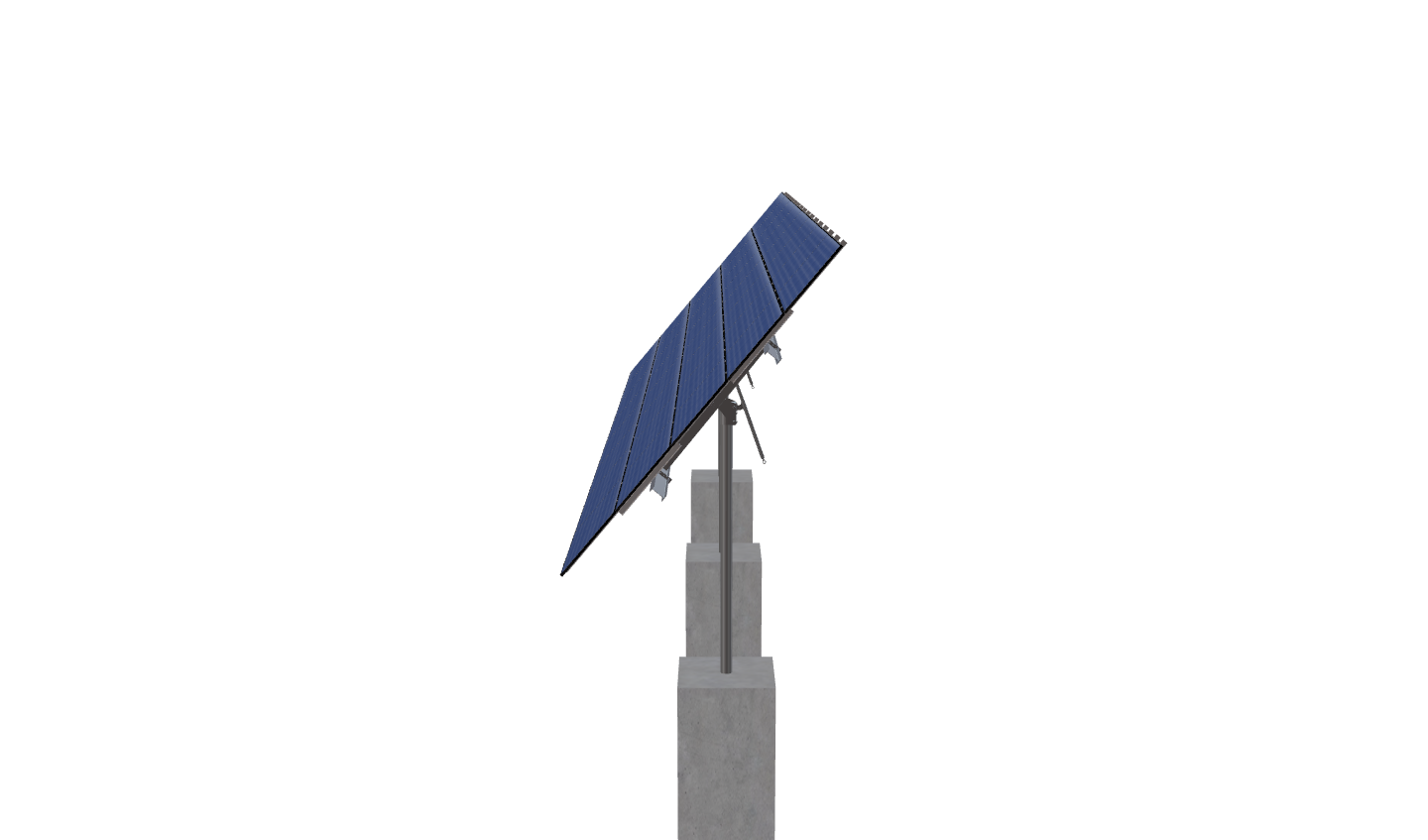

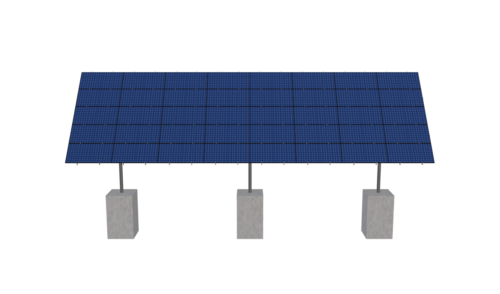

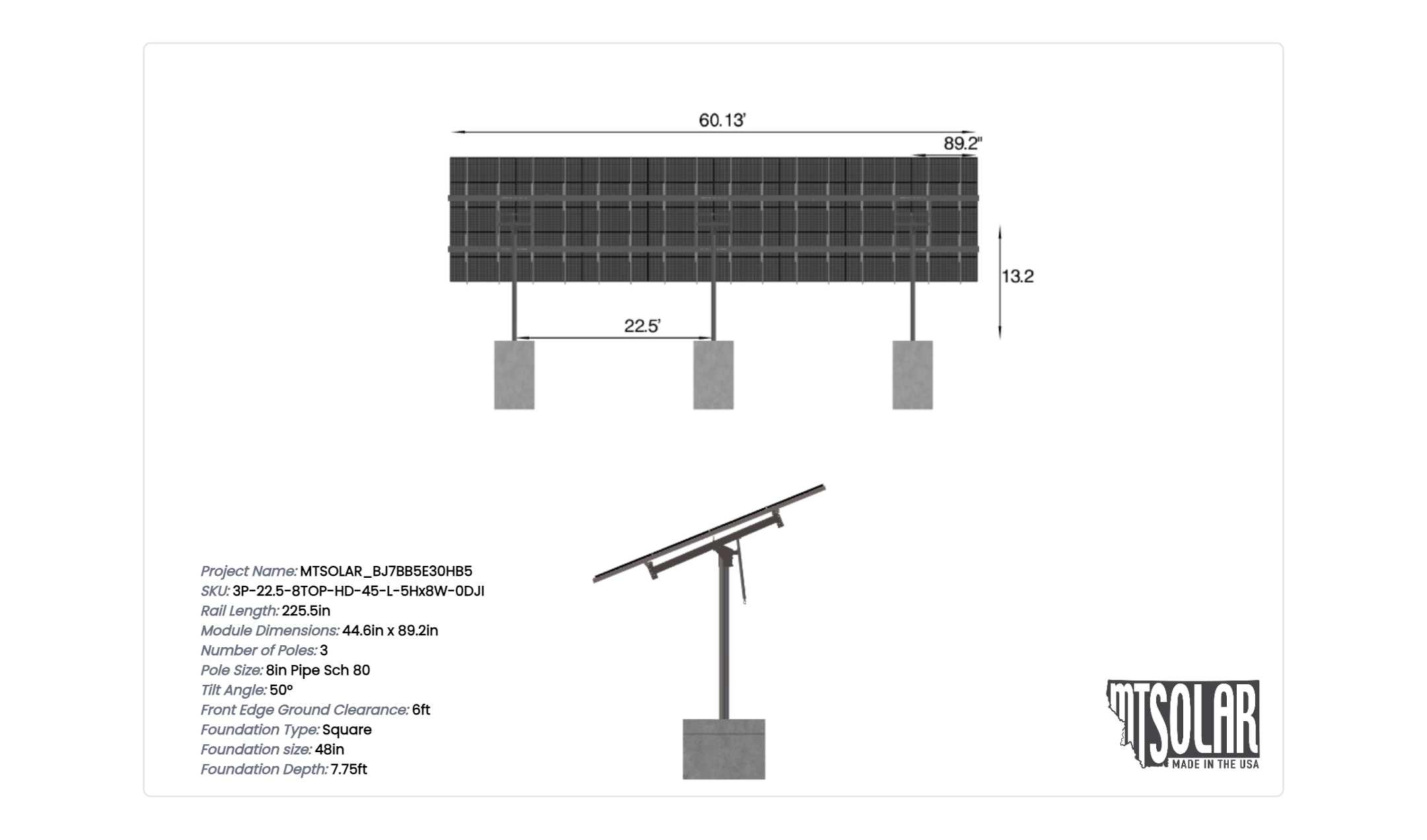

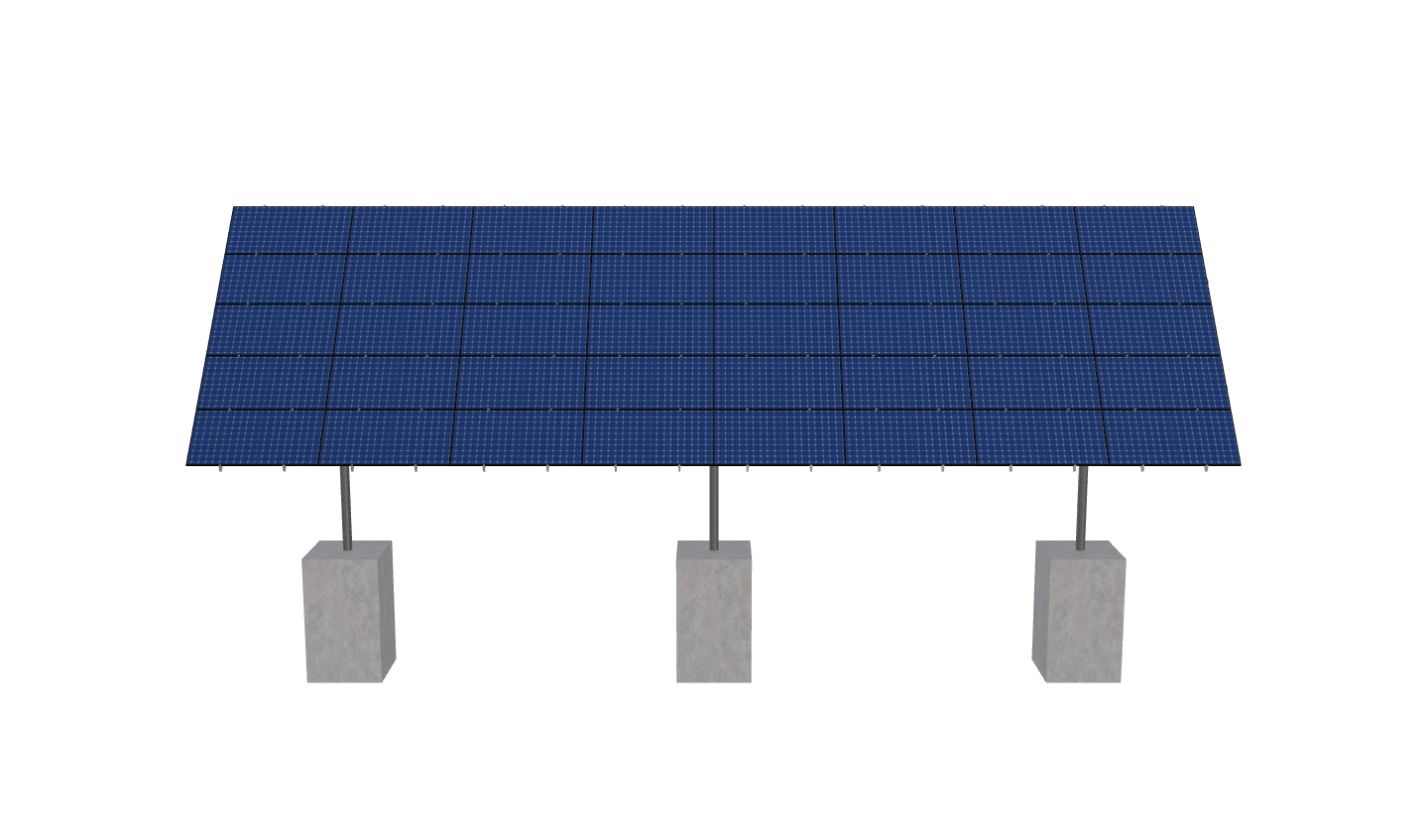

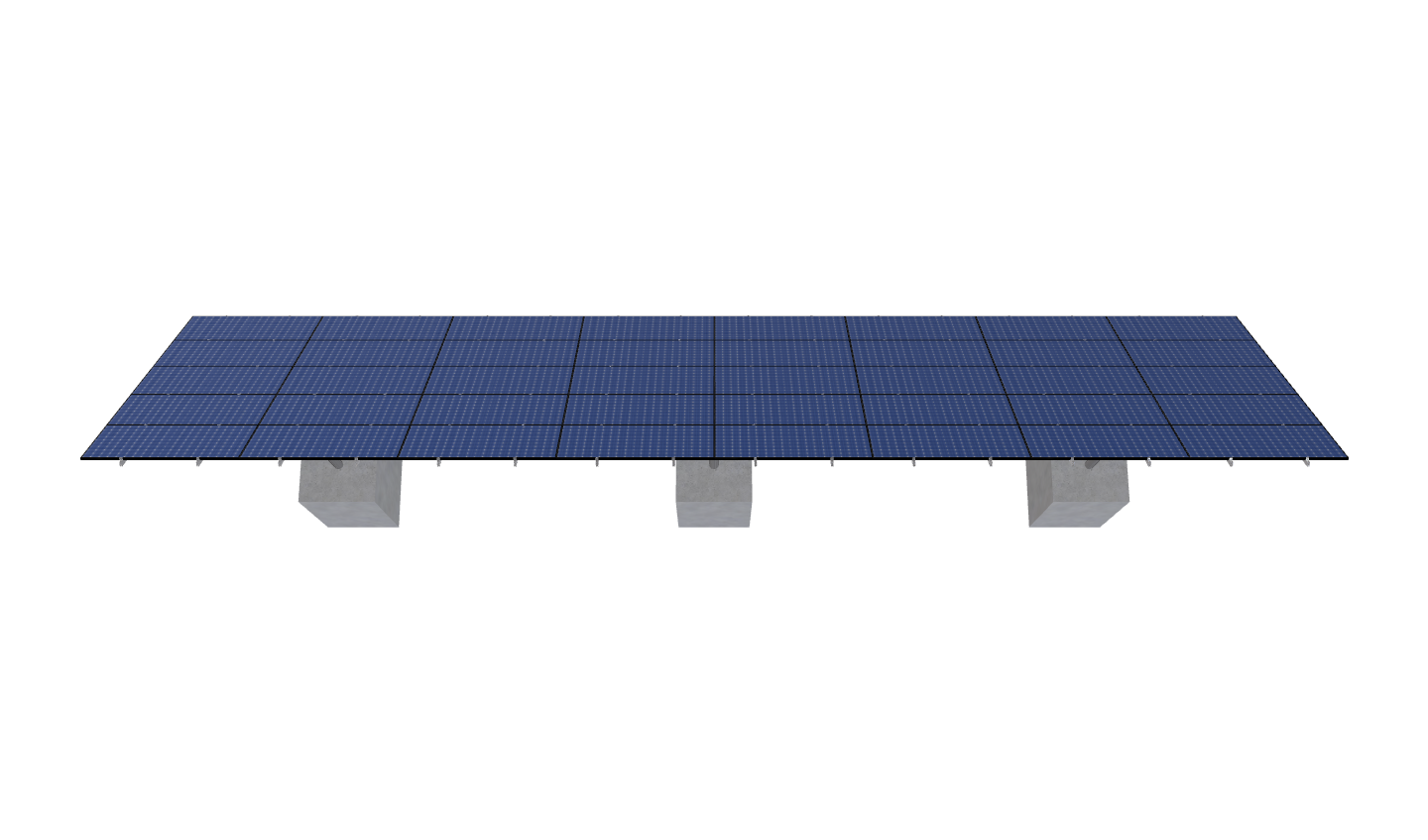

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_BJ7BB5E30HB5
$15,899.27
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3217.17 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-HD-45-L-5HX8W-0DJI |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 13.20 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1130.01 |
| ARRAY WIDTH | 60.13 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 89.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 20.32 |
| PROJECTED PANEL HEIGHT | 14.24 |
| PROJECT ID | MTSOLAR, BJ7BB5E30HB5 |
| SITE ADDRESS | 4680, N, CALHOUN, RD, BROOKFIELD, WI, 53005, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15899.27 |
| TOTAL WEIGHT | 3217.17 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/c85d40ee-2acd-4bbc-9e87-3fa6f7b44c71.pdf |
|
| ID | 4938.00 |
| 3D Solar link |
