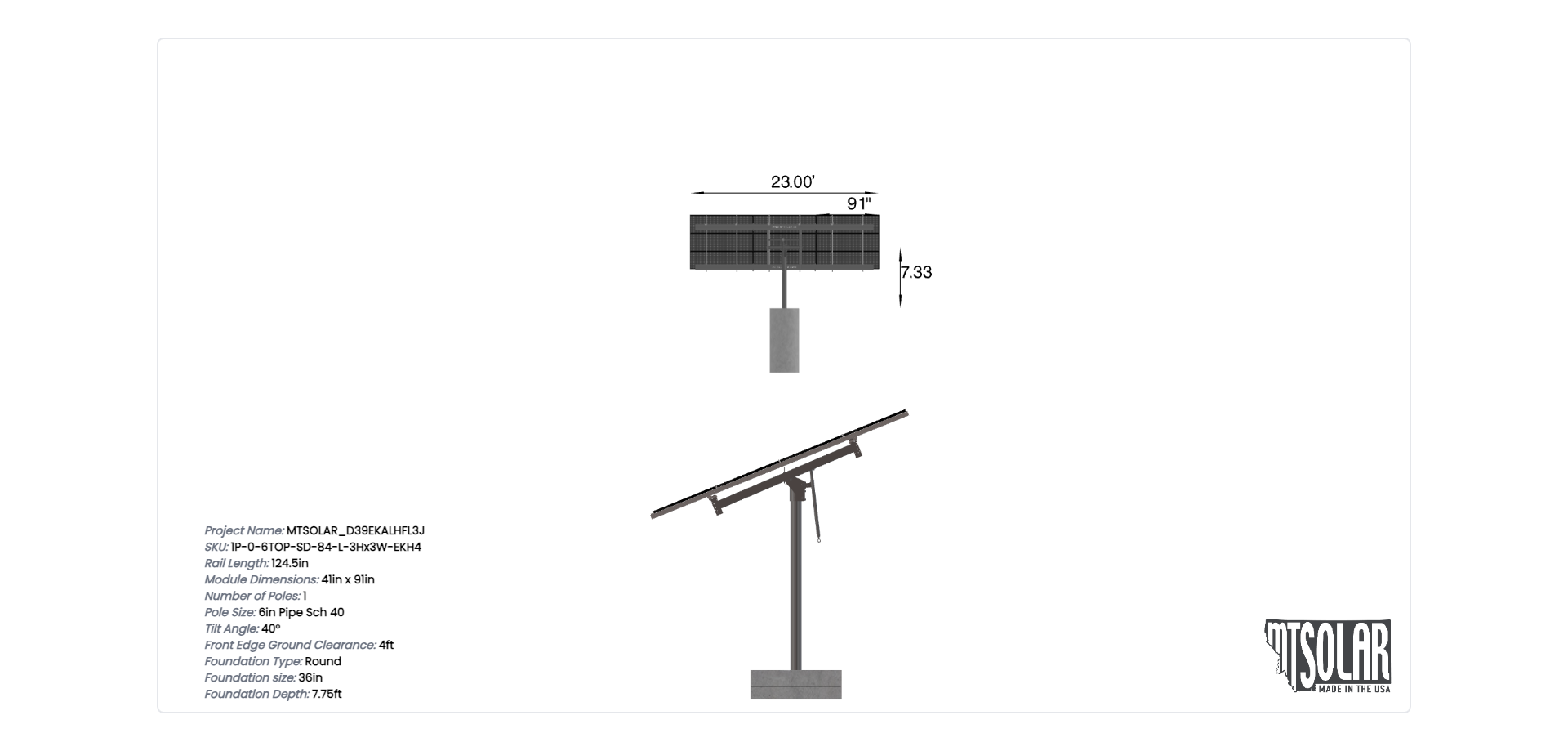

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91 inches by 41 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

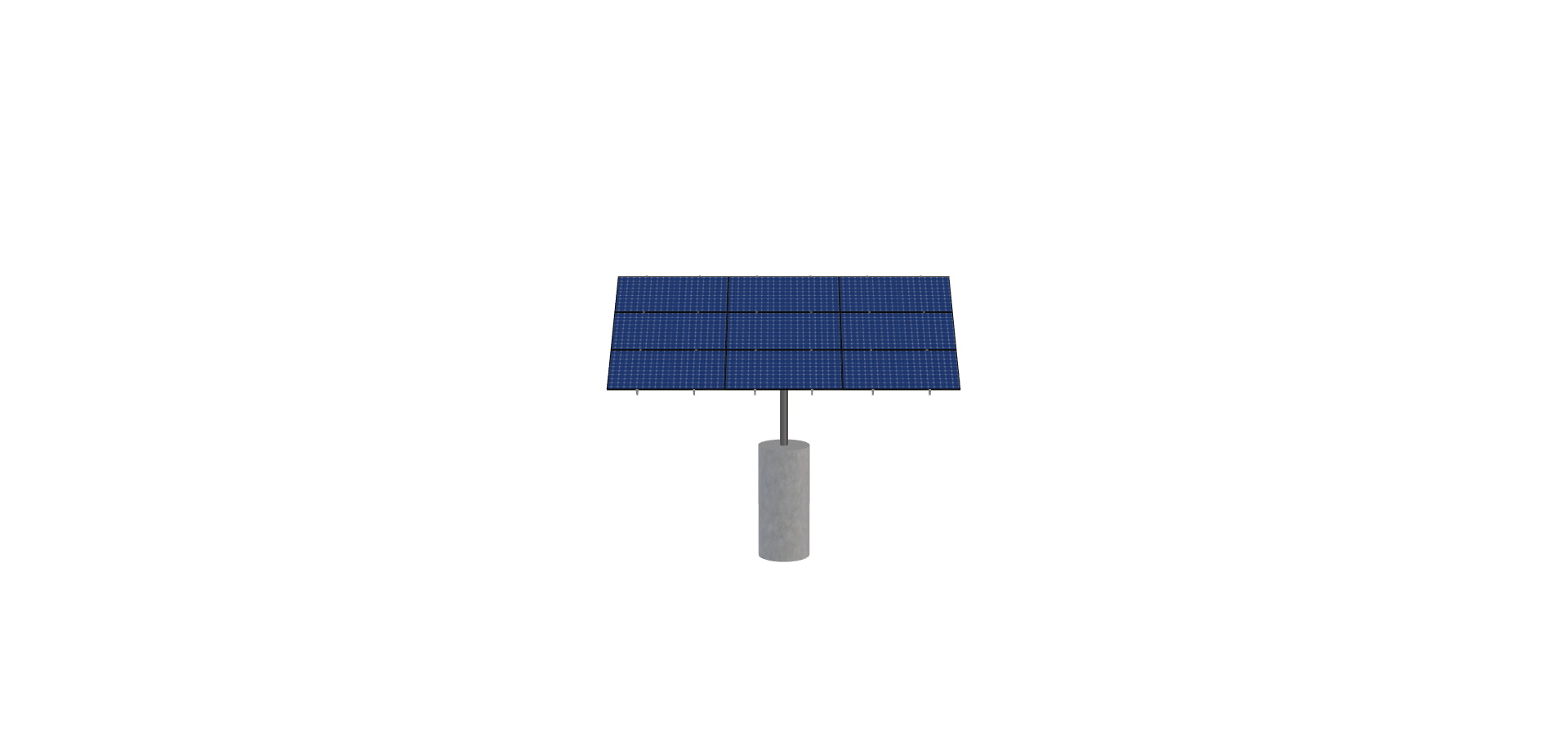

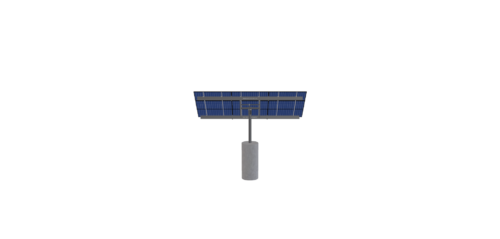

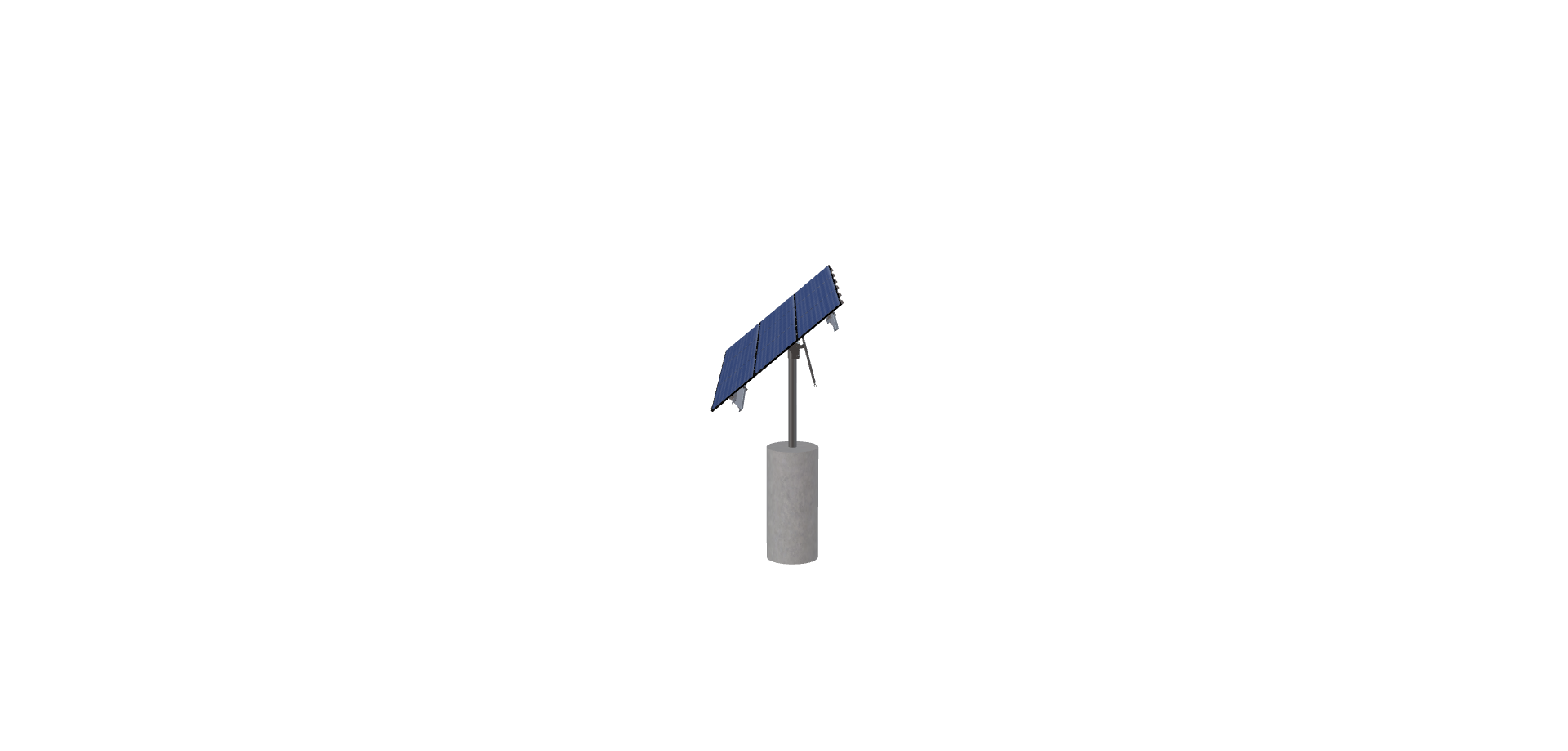

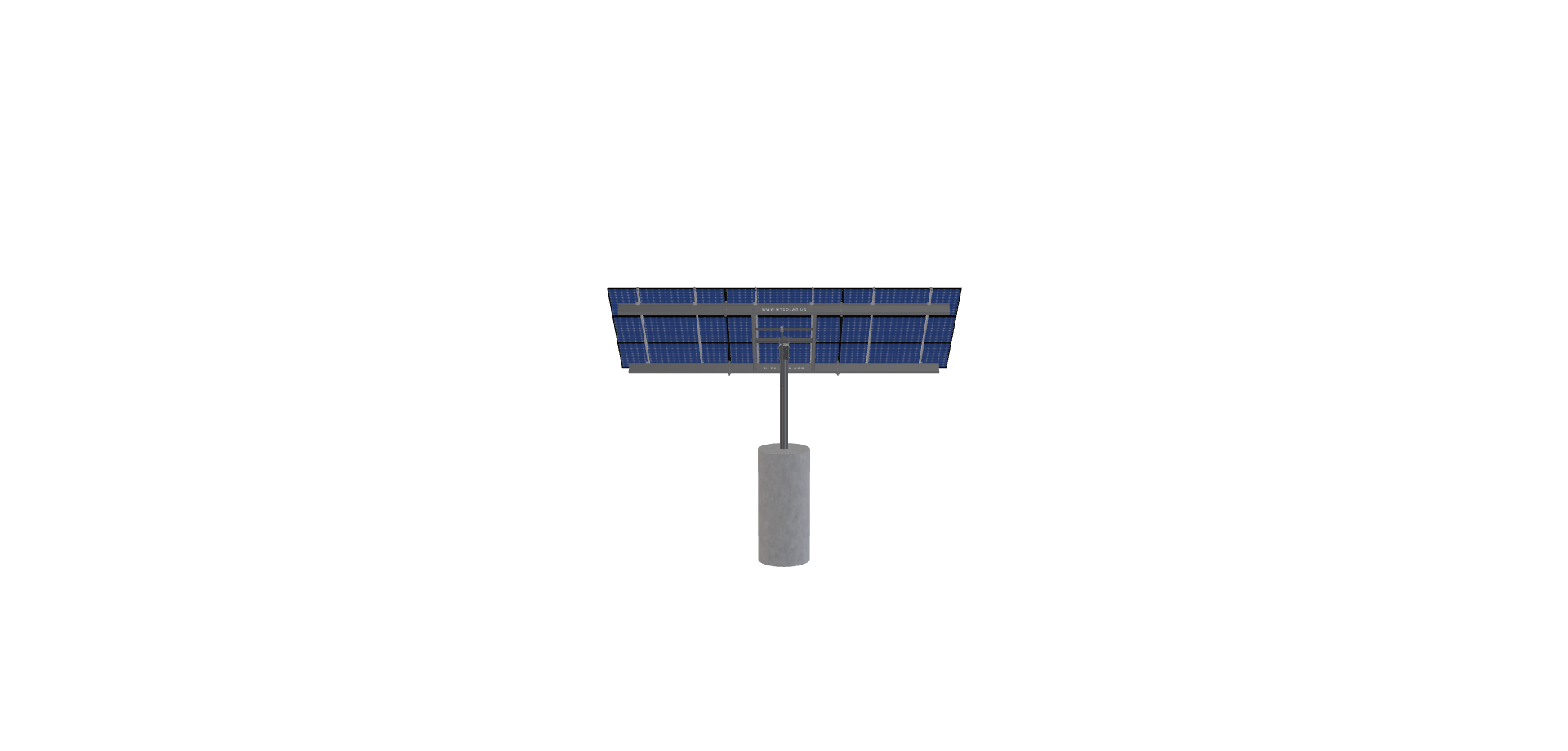

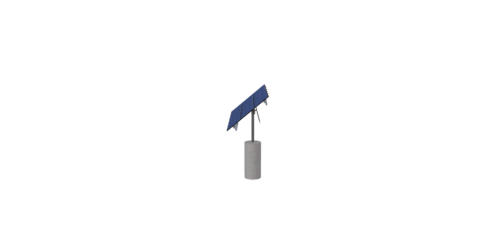

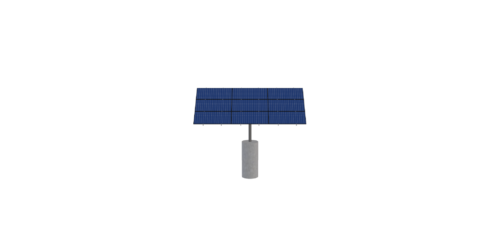

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $3,968.79
Total options:
Order total:
SKU: 1P-0-6TOP-SD-84-L-3Hx3W-EKH4 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91 inches by 41 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 733.88 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-84-L-3HX3W-EKH4

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

7.33

WING SPAN

84.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

40.00

CANTILEVER

258.00

GROUND CLEARANCE

4.00

NO POLES

1.00

MODULE AREA

238.63

ARRAY WIDTH

23.00

ARRAY HEIGHT

10.38

RAIL LENGTH

124.50

MODULE LENGTH

91.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

10.63

PROJECTED PANEL HEIGHT

6.59

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, D39EKALHFL3J

SITE ADDRESS

22, WHITETAIL, DR, RIVERTON, WY, 82501, USA

MODULE WIDTH

41.00

NUMBER ROWS

3.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

3968.79

TOTAL WEIGHT

733.88

TOTAL PALLETS

1.00
