This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.4 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_DG09D6K5FK1G
$8,392.51
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.4 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

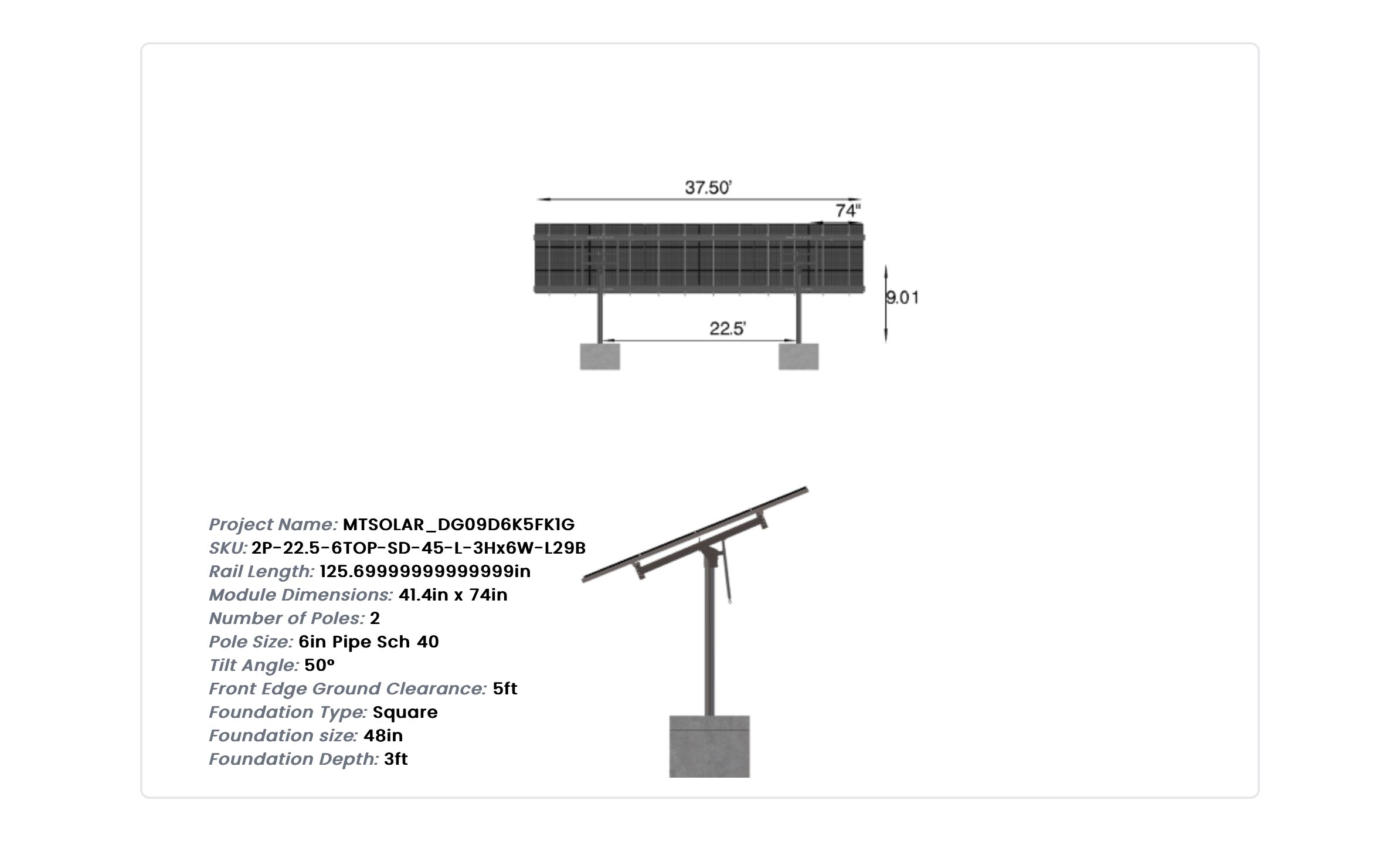

Additional information
| Weight | 1442.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-45-L-3HX6W-L29B |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.01 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 3.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 392.81 |
| ARRAY WIDTH | 37.50 |
| ARRAY HEIGHT | 10.47 |
| RAIL LENGTH | 125.70 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 13.02 |
| PROJECTED PANEL HEIGHT | 8.02 |
| DESIGNER NAME | KEVIN, SMITH |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4068617095.00 |
| PROJECT ID | MTSOLAR, DG09D6K5FK1G |
| SITE ADDRESS | FLUME, GULCH, BUTTE, MT, 59701, USA |
| MODULE INFO | QUELL, Q, PEAK, DUO, G10+, 415 |
| MODULE WIDTH | 41.40 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 30.00 |
| SNOW LOAD OVERRIDE | 107.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8392.51 |
| TOTAL WEIGHT | 1442.52 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b2668b32-c641-43ef-a7fe-dbf739879627.pdf |
|
| ID | 11179.00 |
| 3D Solar link |
