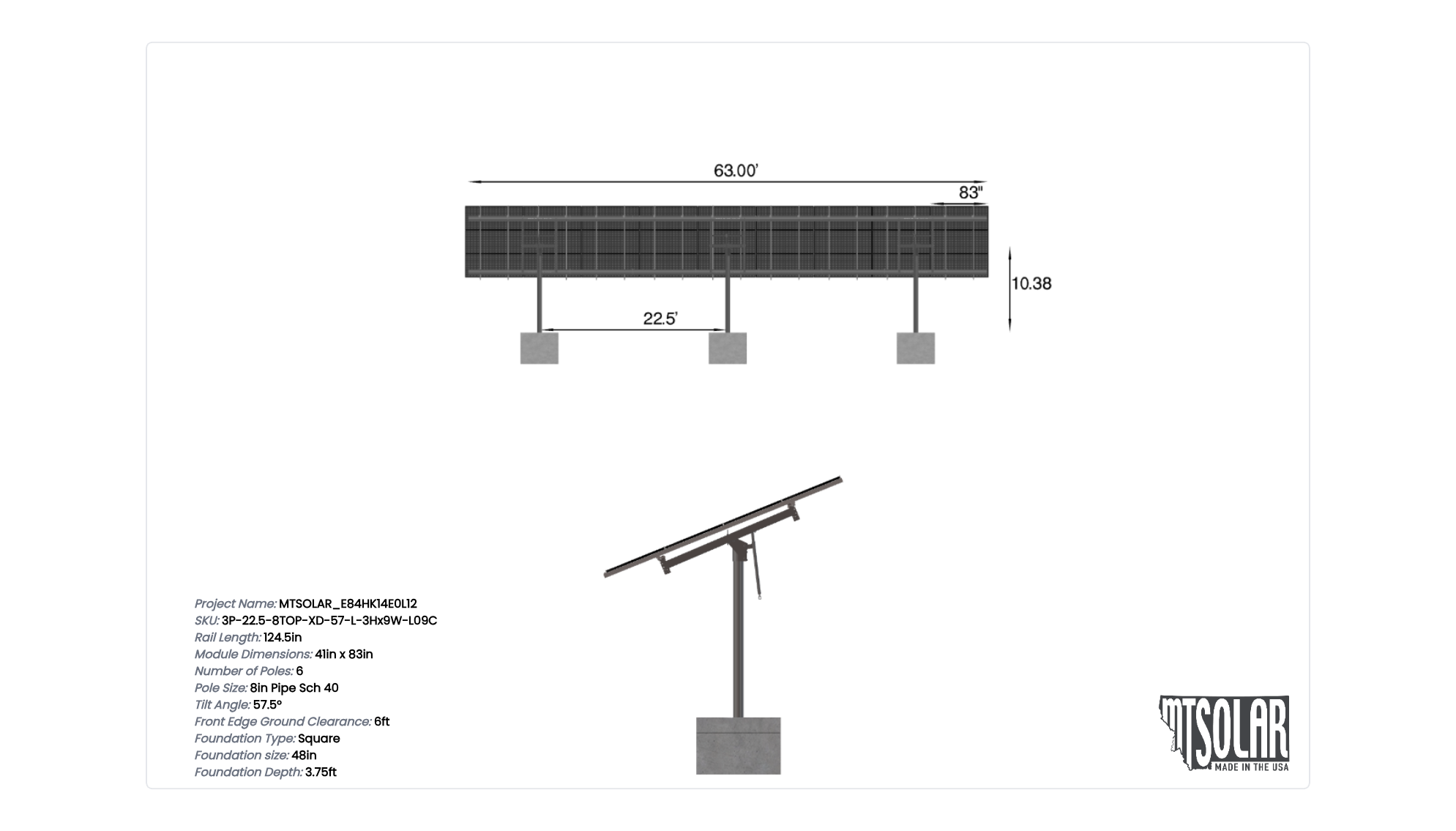

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 41 inches and an array layout of 9 wide by 3 high.
This mount fits on 6 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

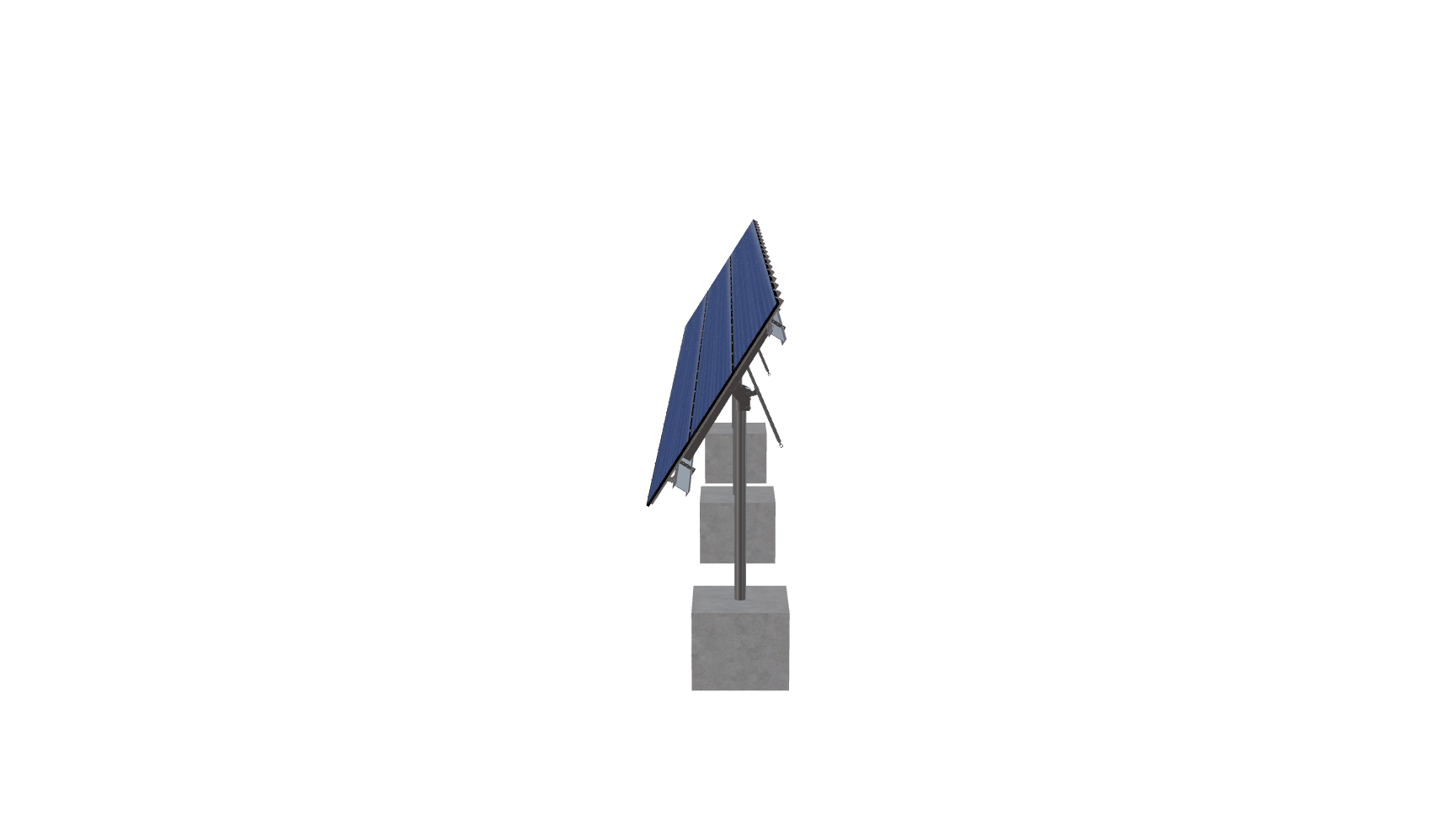

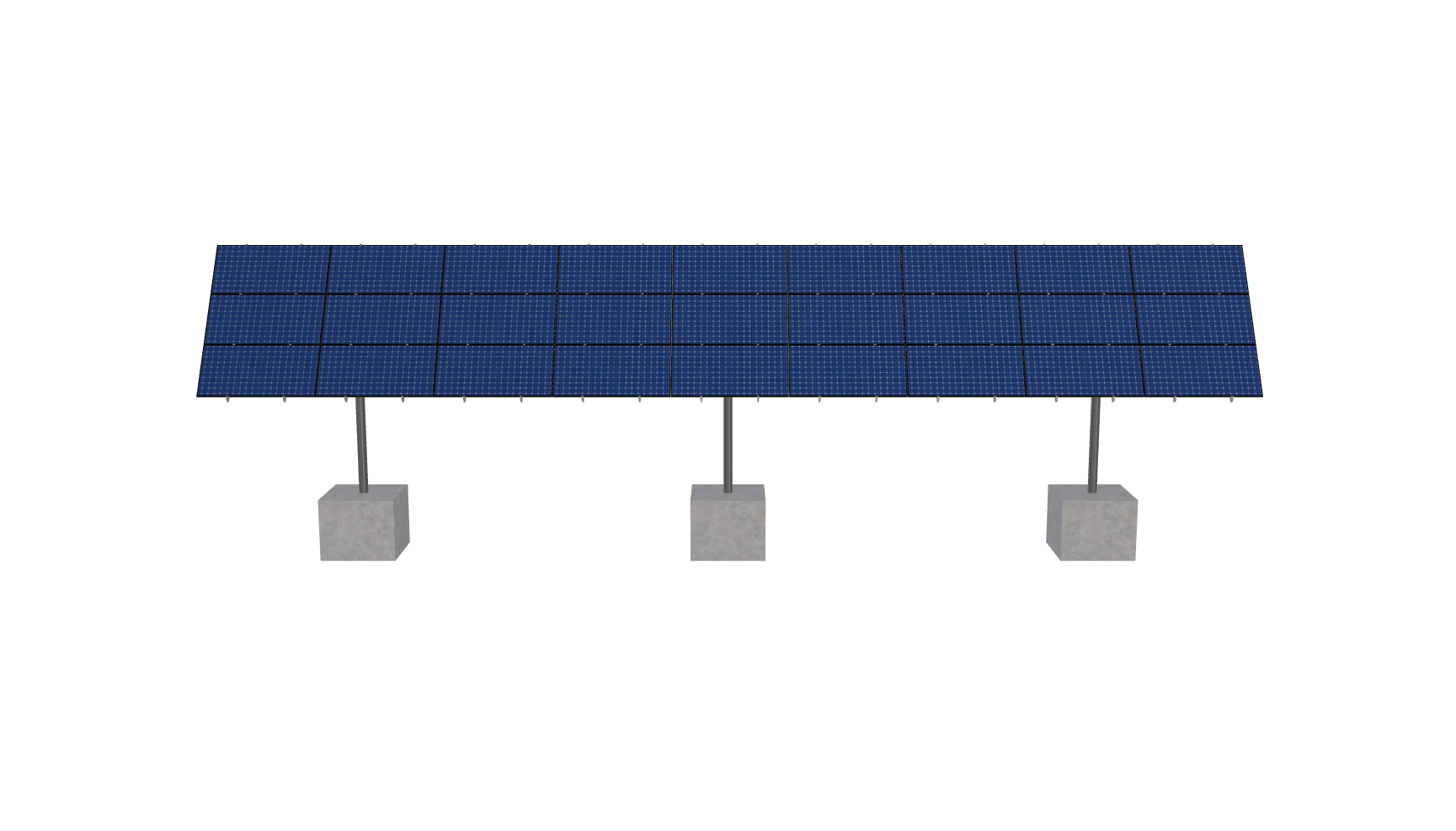

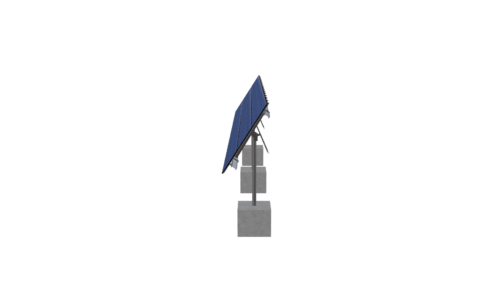

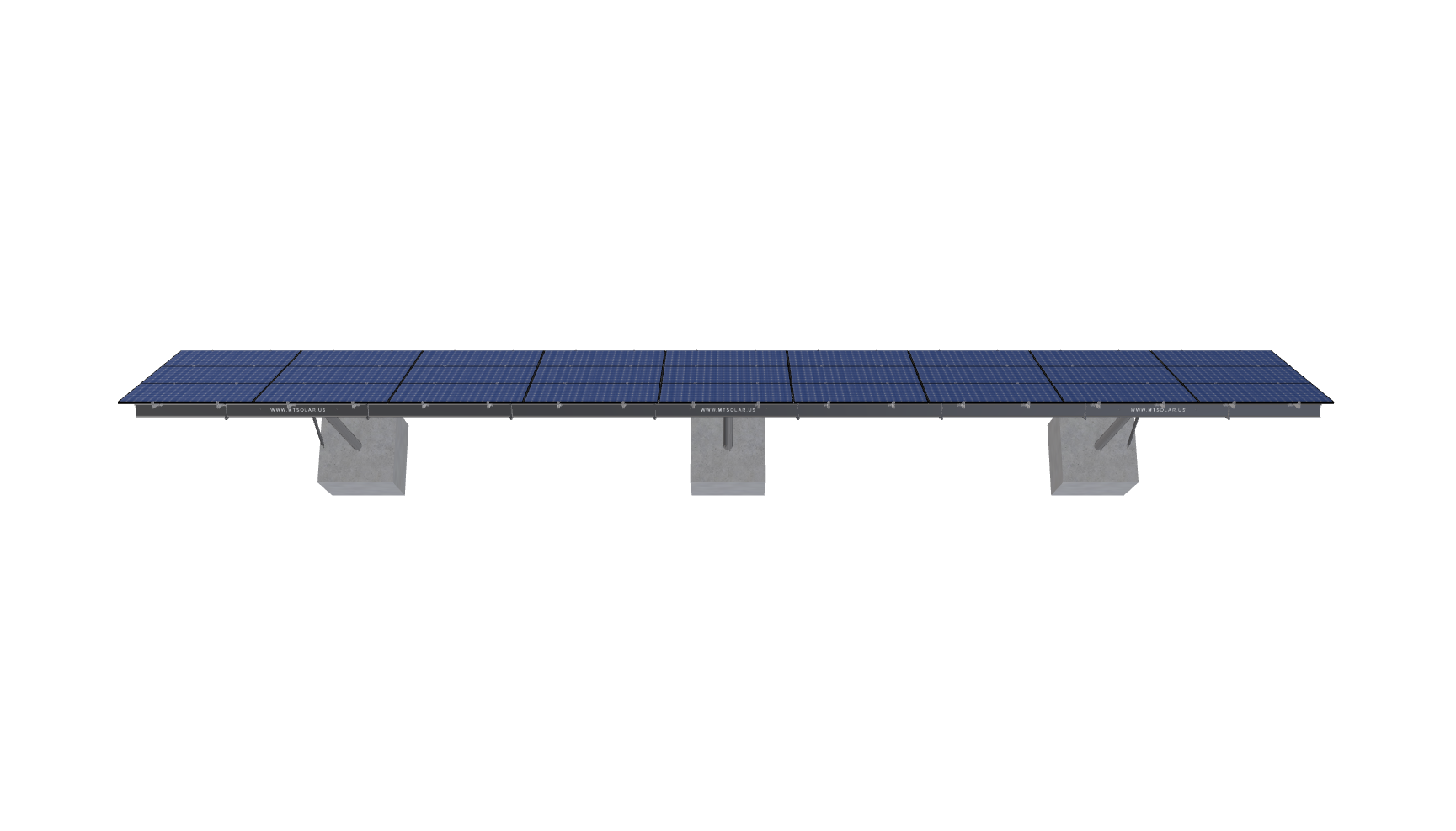

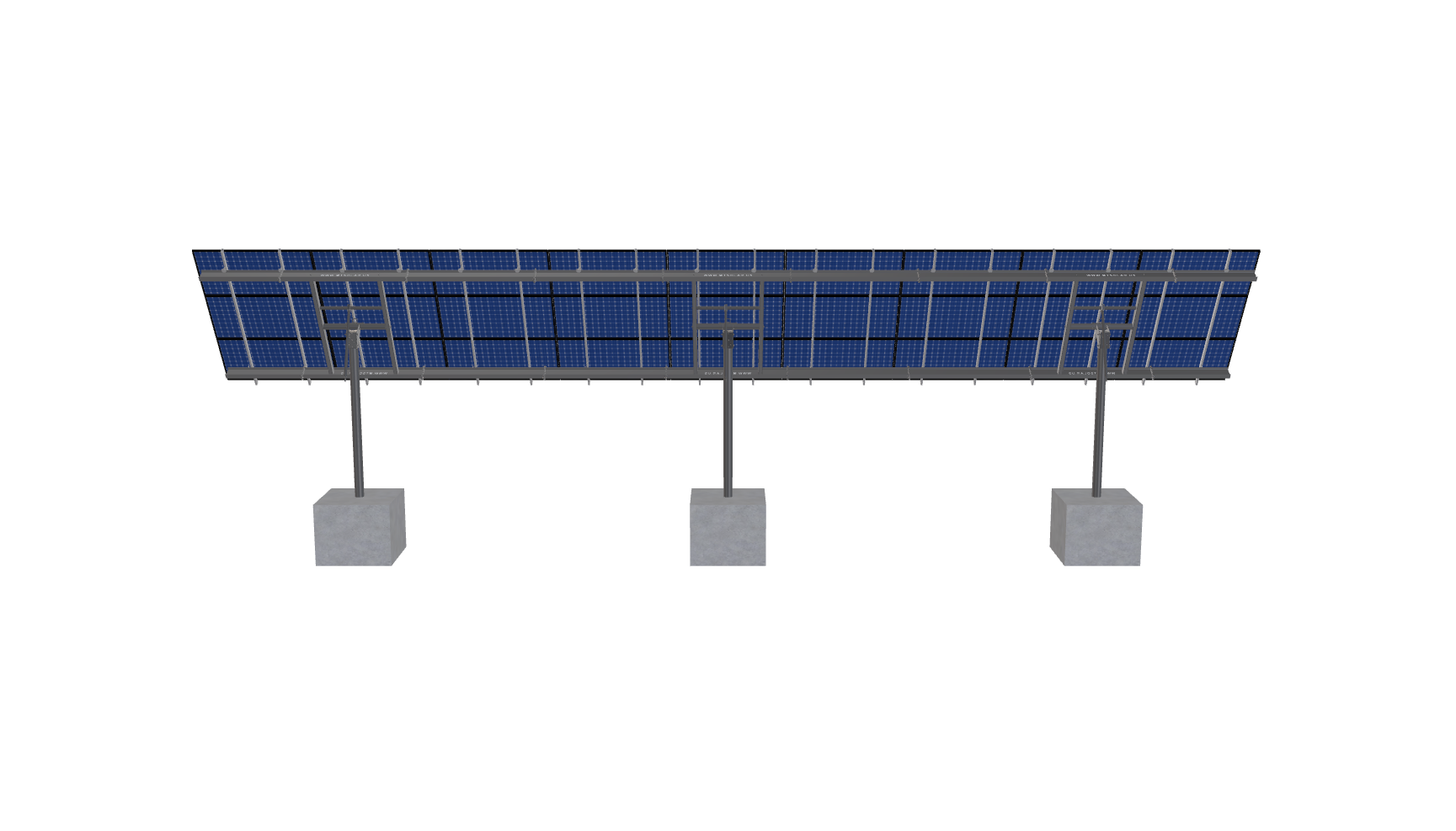

See 3D Model Here
MTSOLAR_E84HK14E0L12
$16,915.61
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 41 inches and an array layout of 9 wide by 3 high.
This mount fits on 6 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3089.13 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-XD-57-L-3HX9W-L09C |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 6.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 10.38 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 3.75 |
| TILT ANGLE | 57.50 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 653.63 |
| ARRAY WIDTH | 63.00 |
| ARRAY HEIGHT | 10.38 |
| RAIL LENGTH | 124.50 |
| MODULE LENGTH | 83.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 14.75 |
| PROJECTED PANEL HEIGHT | 8.75 |
| DESIGNER NAME | DEREK |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 904-806-1436 |
| PROJECT ID | MTSOLAR, E84HK14E0L12 |
| SITE ADDRESS | Q4FP+9H, MERRITT, WA, 98826, USA |
| MODULE INFO | BLUESKY |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 9.00 |
| POLE SPACING OVERRIDE | 60.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 99.00 |
| SNOW LOAD OVERRIDE | 314.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 16915.61 |
| TOTAL WEIGHT | 3089.13 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/ecd34261-2eff-4dfe-b071-11e64b2bc838.pdf |
|
| ID | 11143.00 |
| 3D Solar link |
