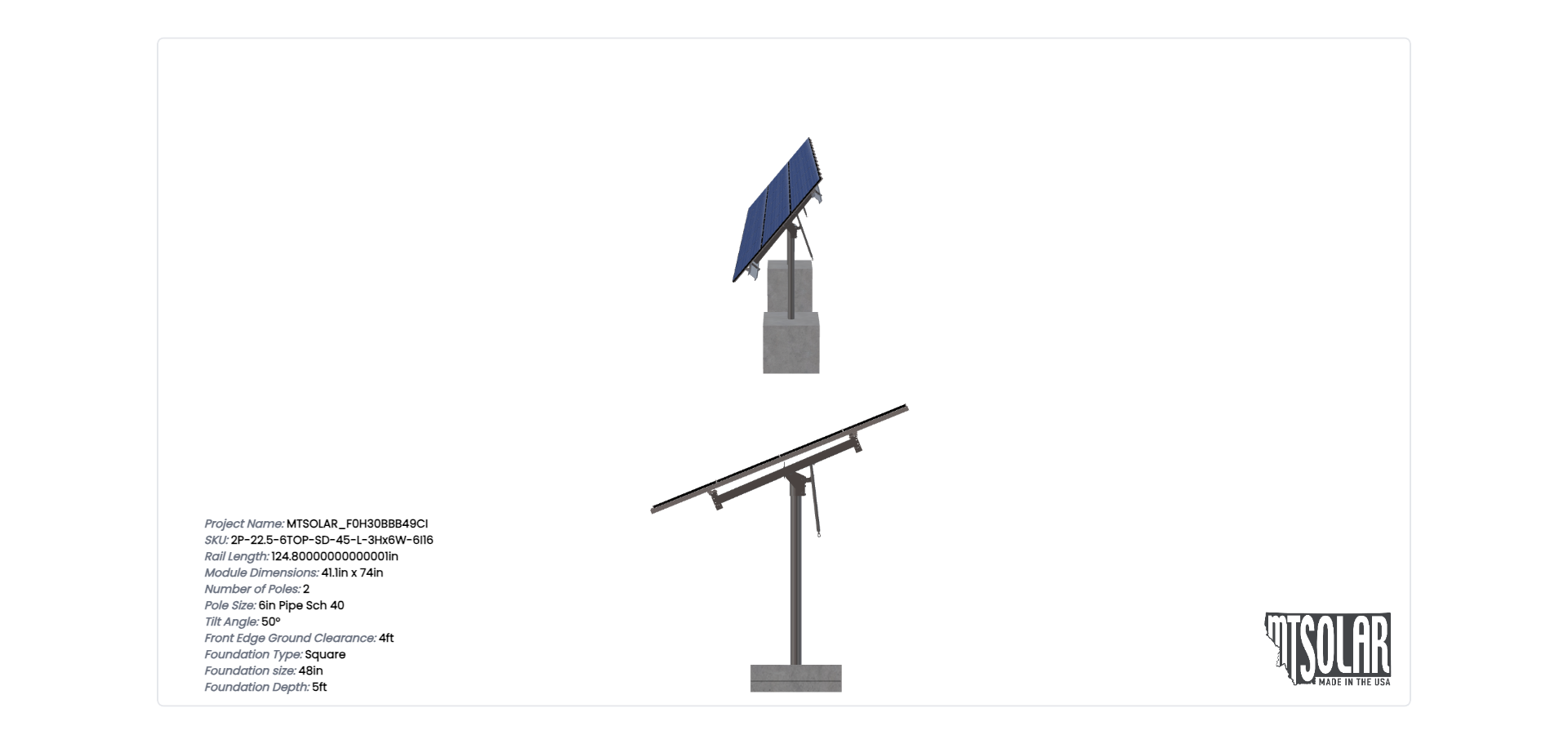

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

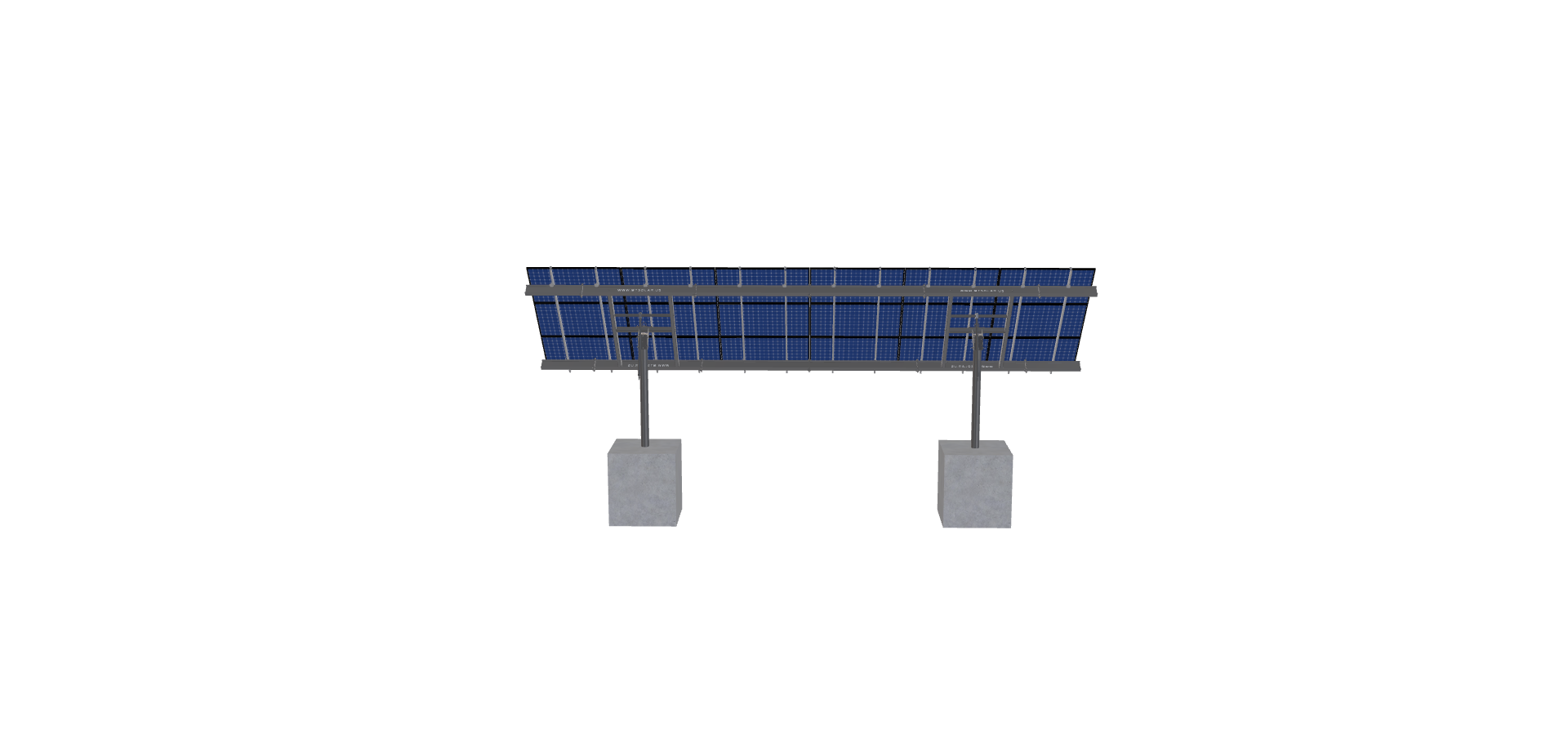

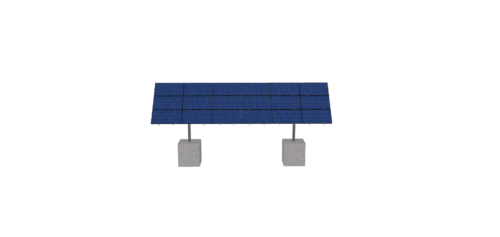

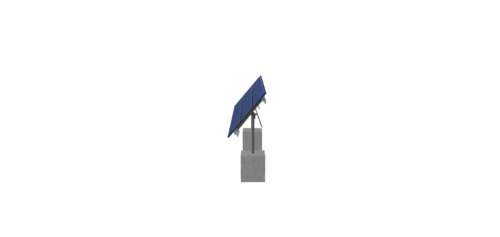

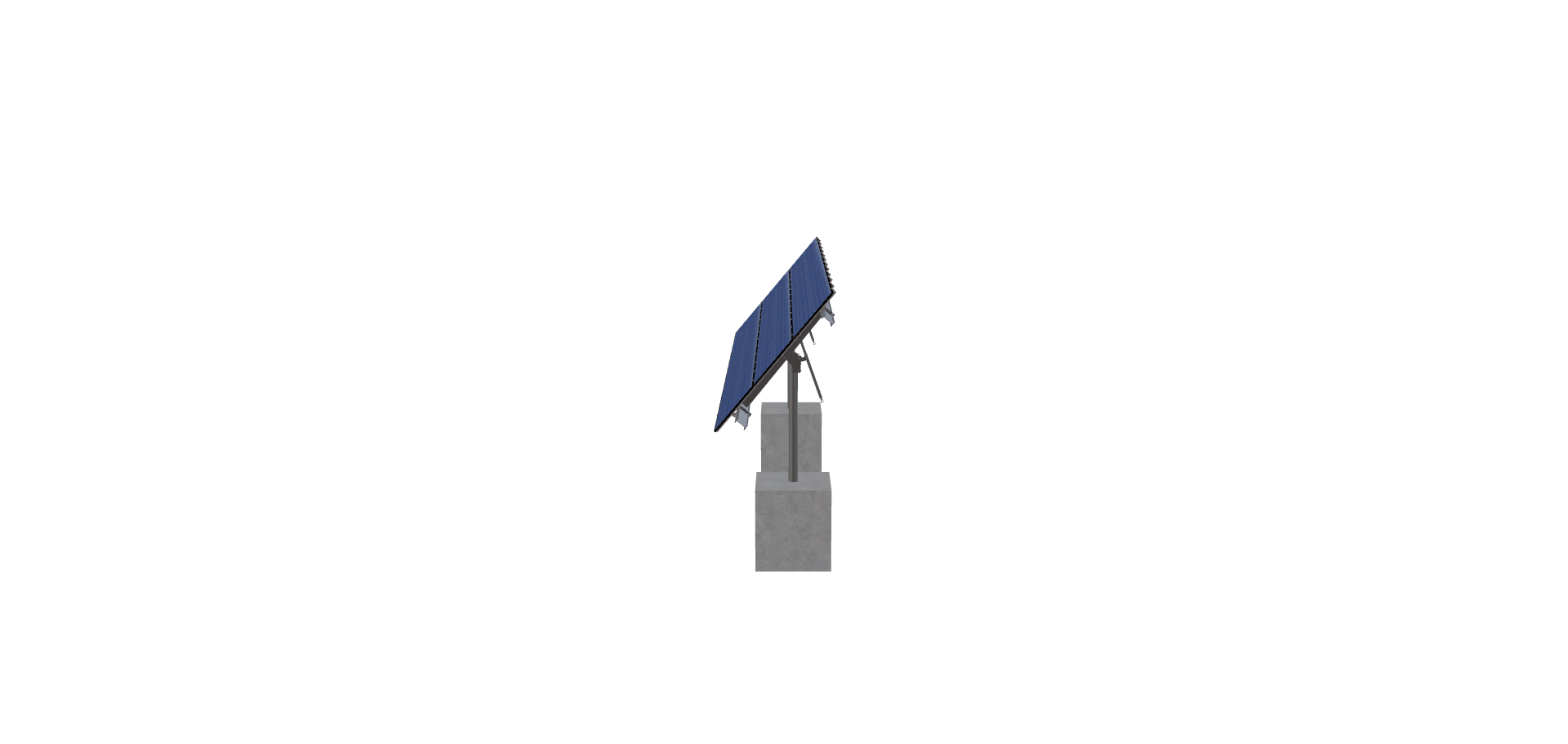

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-22.5-6TOP-SD-45-L-3Hx6W-6I16 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1442.52 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-6TOP-SD-45-L-3HX6W-6I16

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

7.98

WING SPAN

45.00

MAX FOUNDATION DEPTH

5.00

TILT ANGLE

50.00

CANTILEVER

450.00

GROUND CLEARANCE

4.00

NO POLES

2.00

MODULE AREA

390.00

ARRAY WIDTH

37.50

ARRAY HEIGHT

10.40

RAIL LENGTH

124.80

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

37.50

GROUND TO TOP

11.92

PROJECTED PANEL HEIGHT

7.87

PROJECT ID

MTSOLAR, F0H30BBB49CI

SITE ADDRESS

9300, NASH, RD, BOZEMAN, MT, 59715, USA

MODULE WIDTH

41.10

NUMBER ROWS

3.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

101.00

SNOW LOAD OVERRIDE

70.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

8041.48

TOTAL WEIGHT

1442.52

TOTAL PALLETS

2.00
