MTSOLAR_F634K00L06G8

$9,594.45

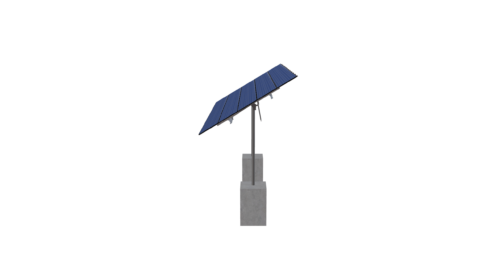

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82 inches by 43 inches and an array layout of 6 wide by 5 high.

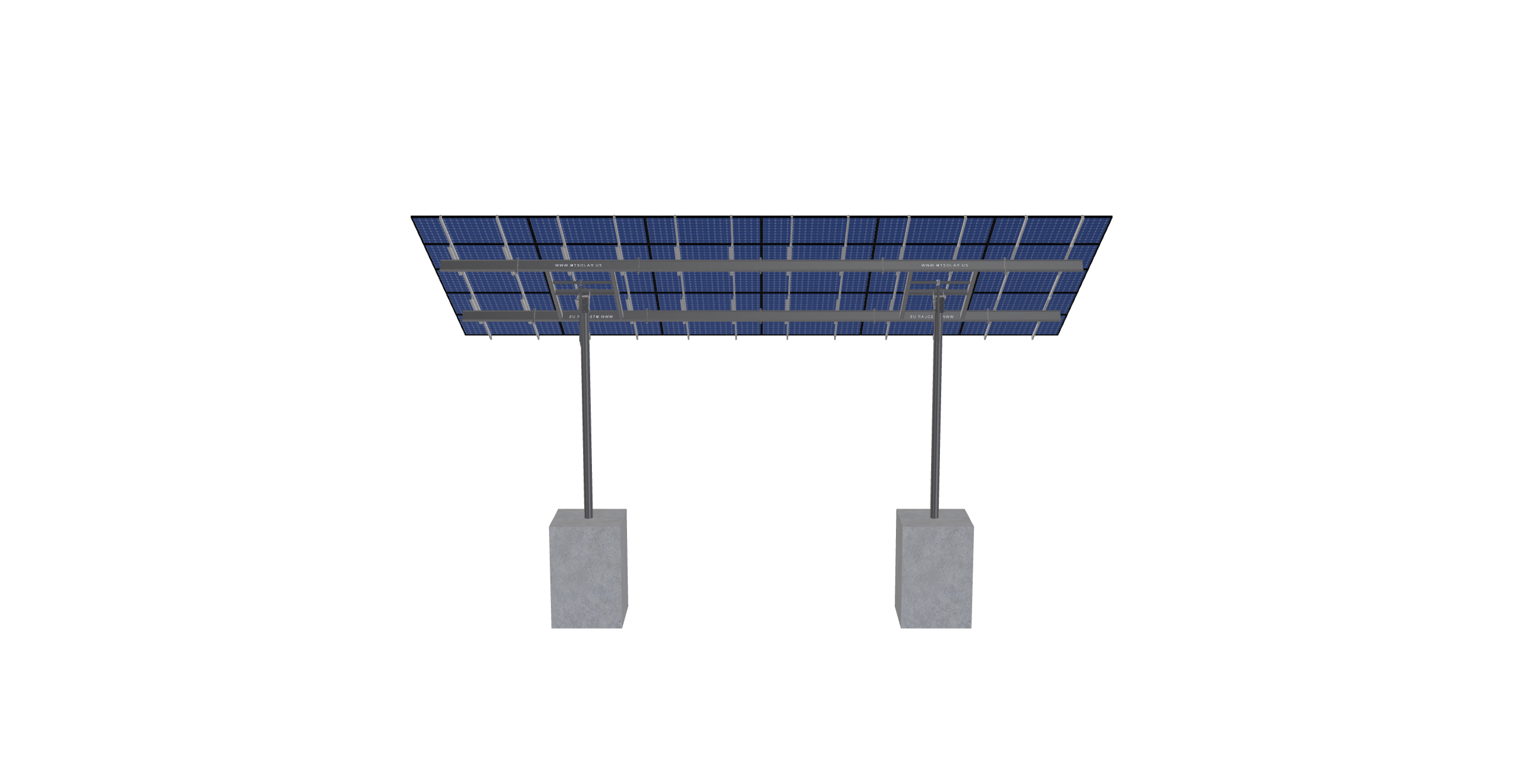

This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

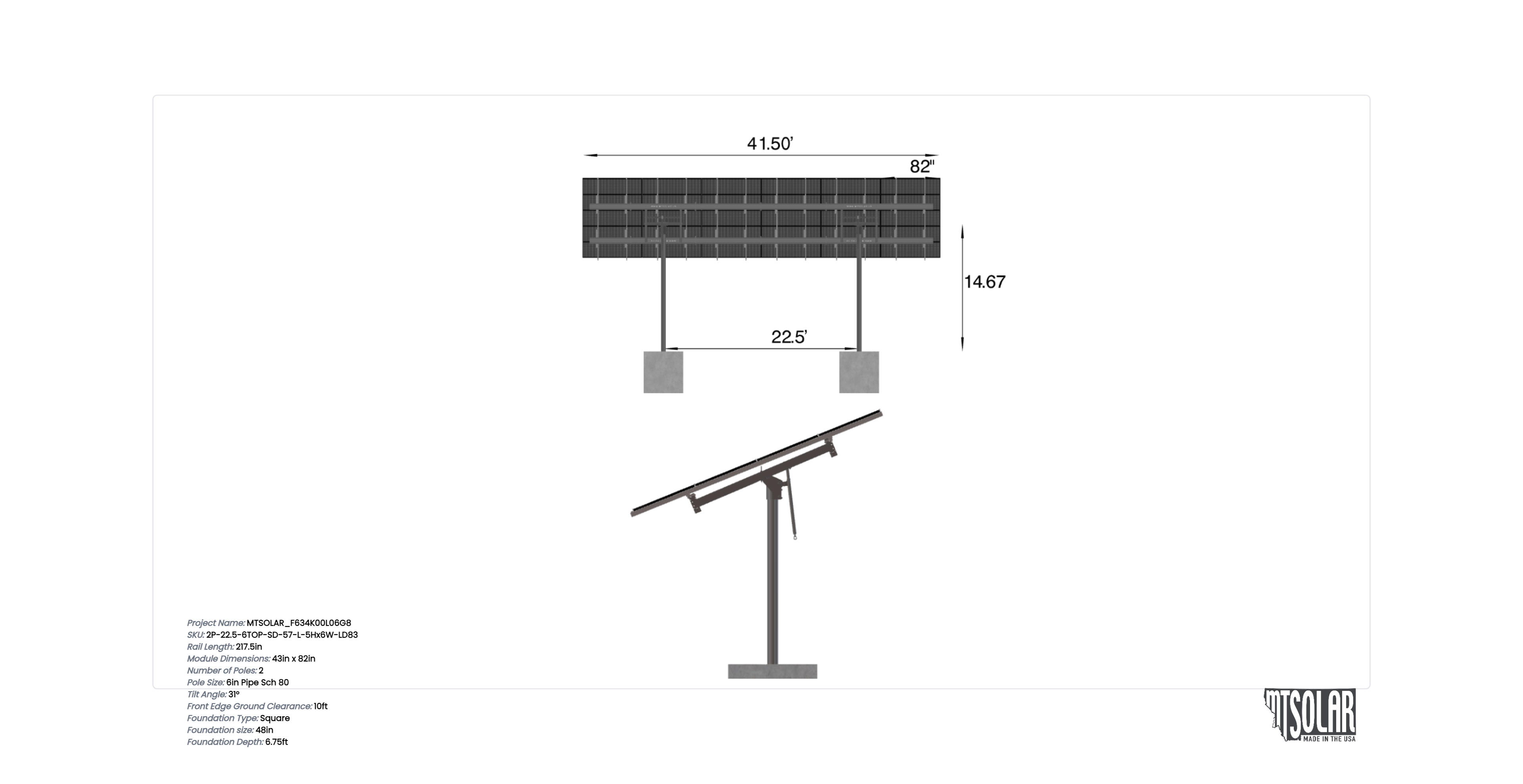

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-22.5-6TOP-SD-57-L-5Hx6W-LD83 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82 inches by 43 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1907.6399999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-6TOP-SD-57-L-5HX6W-LD83

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

14.67

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

31.00

CANTILEVER

474.00

GROUND CLEARANCE

10.00

NO POLES

2.00

MODULE AREA

752.19

ARRAY WIDTH

41.50

ARRAY HEIGHT

18.13

RAIL LENGTH

217.50

MODULE LENGTH

82.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

19.28

PROJECTED PANEL HEIGHT

9.23

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, F634K00L06G8

SITE ADDRESS

3039, MONTEREY, RD, SAN, JOSE, CA, 95111, USA

MODULE WIDTH

43.00

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

9594.45

TOTAL WEIGHT

1907.64

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/f4cb44d4-7354-4790-9548-8855c44405a2.pdf

ID

6102.00
