MTSOLAR_GJ75CK1KIEJK

$3,554.22

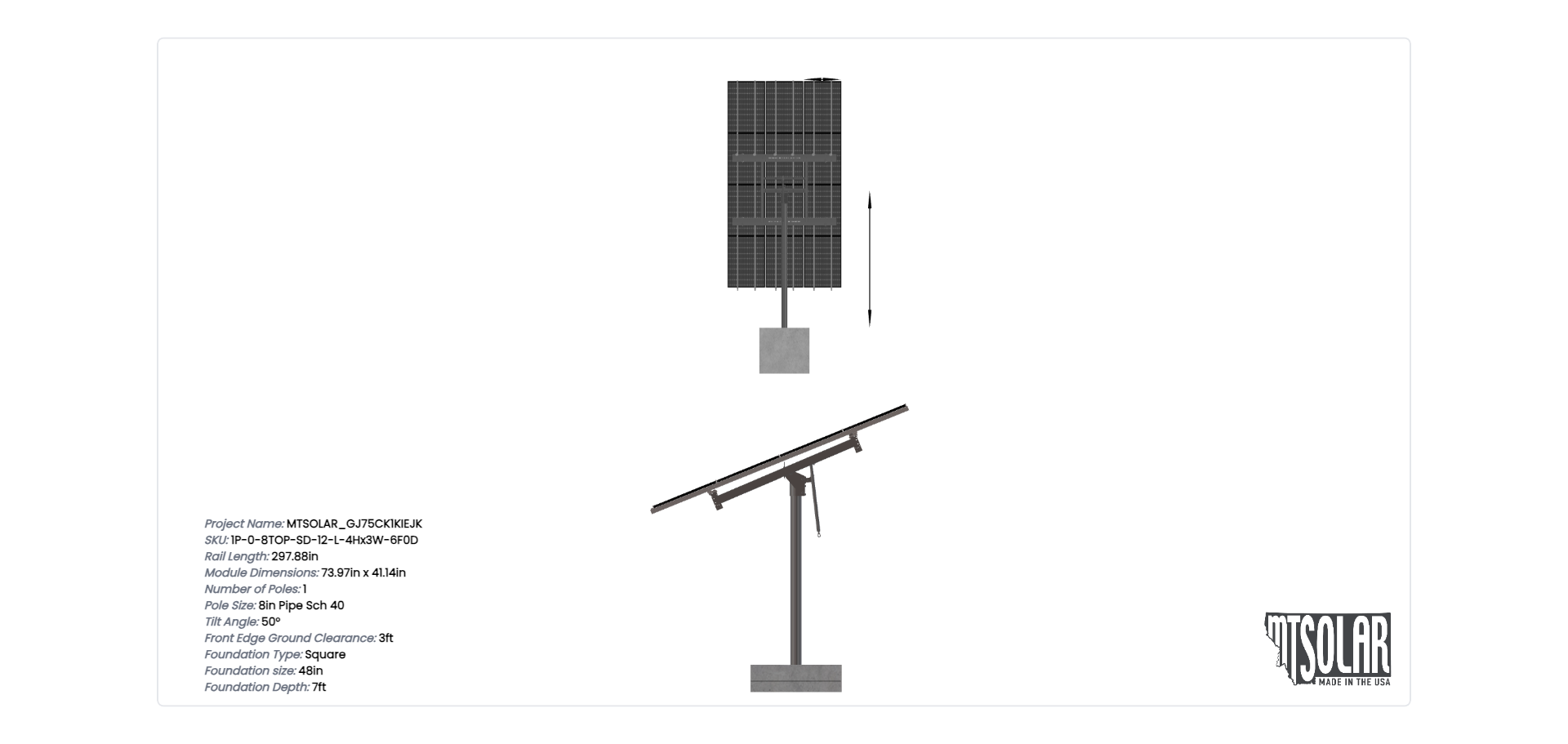

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 41.14 inches by 73.97 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-SD-12-L-4Hx3W-6F0D Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 41.14 inches by 73.97 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 579.66 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-12-L-4HX3W-6F0D

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

12.51

WING SPAN

12.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

50.00

CANTILEVER

114.00

GROUND CLEARANCE

3.00

NO POLES

1.00

MODULE AREA

261.51

ARRAY WIDTH

10.54

ARRAY HEIGHT

24.82

RAIL LENGTH

297.88

MODULE LENGTH

41.14

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

9.50

GROUND TO TOP

21.95

PROJECTED PANEL HEIGHT

18.89

PROJECT ID

MTSOLAR, GJ75CK1KIEJK

SITE ADDRESS

HOWARD, COUNTY, MD, USA

MODULE WIDTH

73.97

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

105.00

SNOW LOAD OVERRIDE

43.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

3554.22

TOTAL WEIGHT

579.66

TOTAL PALLETS

1.00
