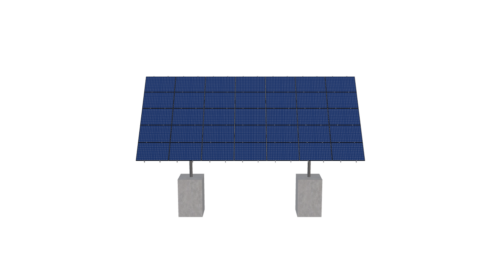

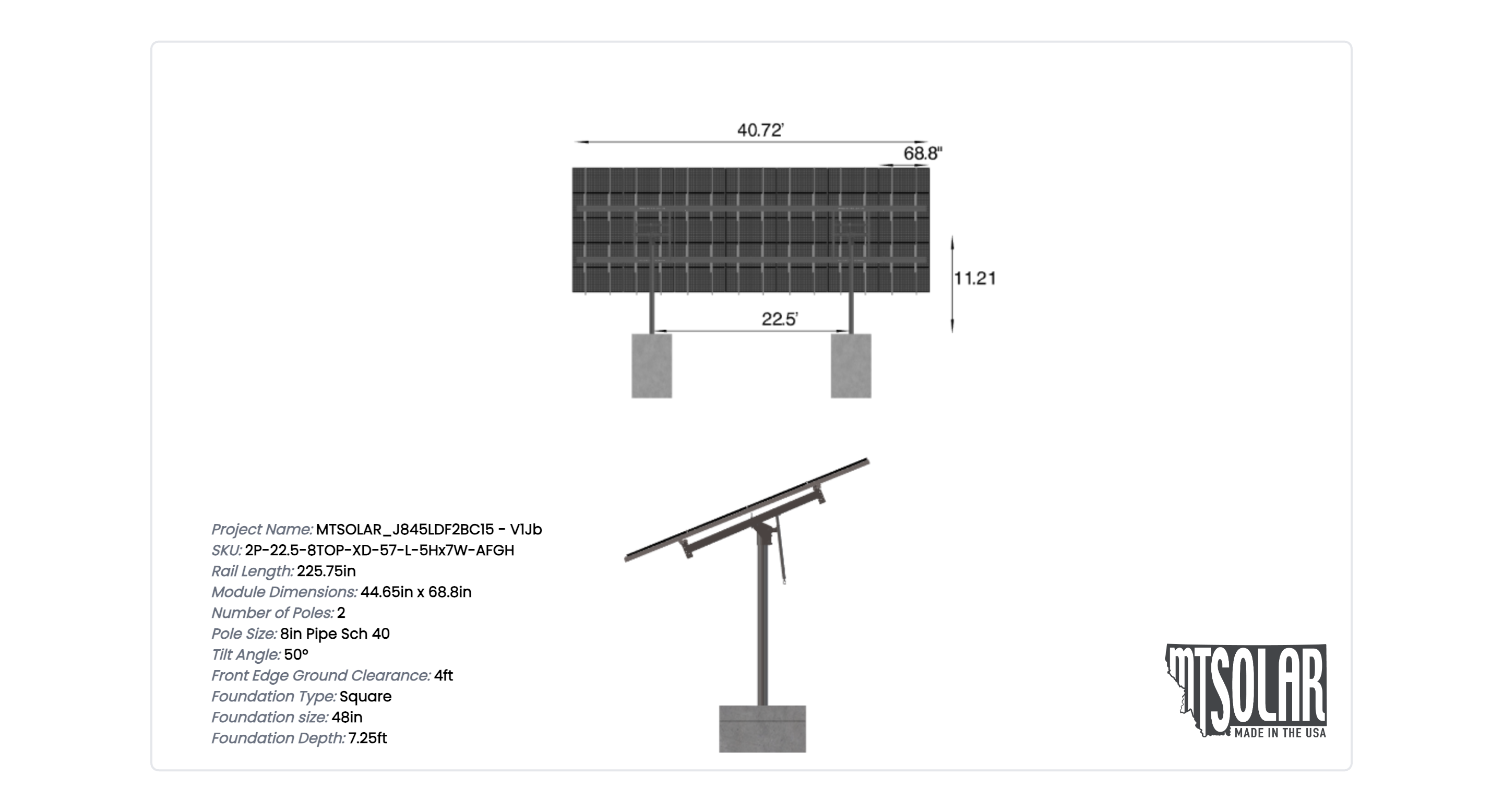

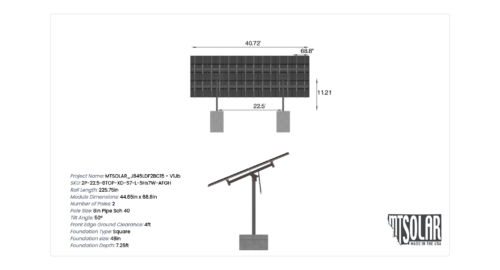

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 44.65 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_J845LDF2BC15 – V1Jb
$13,106.21
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 44.65 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2534.7799999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-XD-57-L-5HX7W-AFGH |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.21 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 765.98 |
| ARRAY WIDTH | 40.72 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 68.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 18.41 |
| PROJECTED PANEL HEIGHT | 14.41 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 80.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, J845LDF2BC15, -, V1JB |
| SITE ADDRESS | 31, FISK, WY, KEENE, NY, 12942, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 12482.10 |
| TOTAL WEIGHT | 2534.78 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/fd9d784b-b517-47af-a7a6-05495e7fcca1.pdf |
|
| ID | 10759.00 |
| 3D Solar link |
