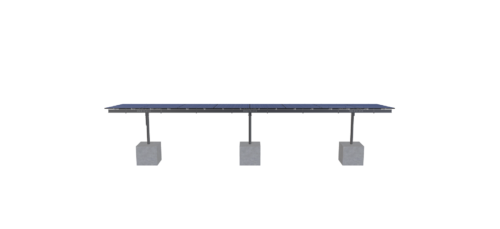

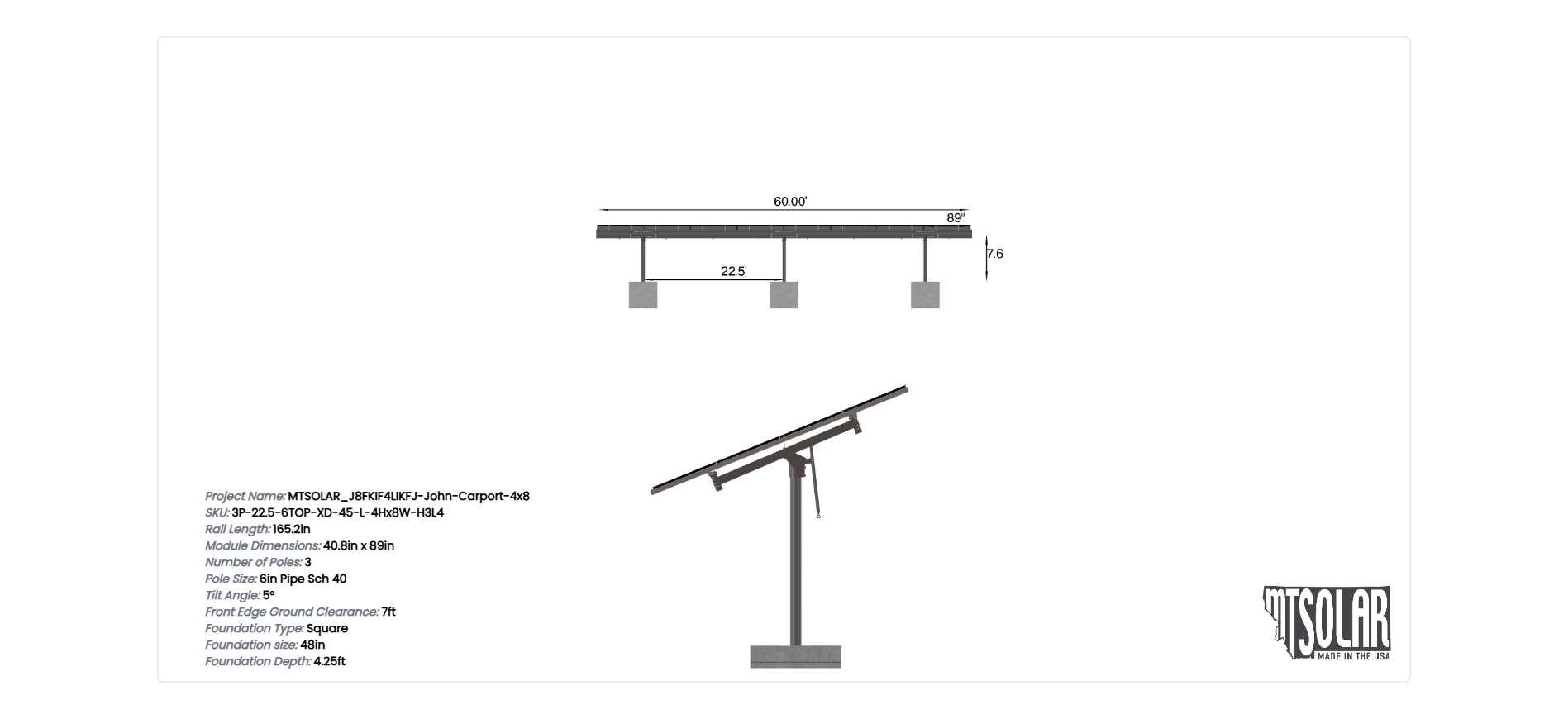

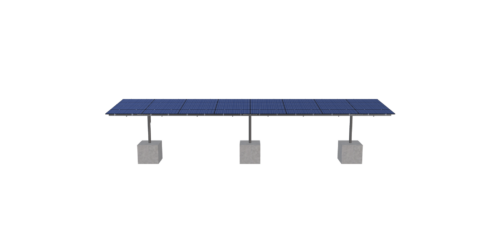

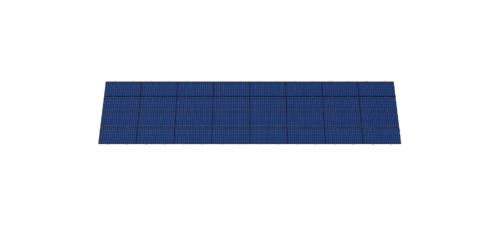

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 40.8 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_J8FKIF4LIKFJ-John-Carport-4×8
$15,945.85
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 40.8 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3024.6099999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-XD-45-L-4HX8W-H3L4 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 7.60 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 4.25 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 3.00 |
| MODULE AREA | 826.00 |
| ARRAY WIDTH | 60.00 |
| ARRAY HEIGHT | 13.77 |
| RAIL LENGTH | 165.20 |
| MODULE LENGTH | 89.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 8.20 |
| PROJECTED PANEL HEIGHT | 1.20 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, J8FKIF4LIKFJ-JOHN-CARPORT-4X8 |
| SITE ADDRESS | SALIDA, CO, 81201, USA |
| MODULE WIDTH | 40.80 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15945.85 |
| TOTAL WEIGHT | 3024.61 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/803693be-e0a4-41df-8942-4c1e78dcedc7.pdf |
|
| ID | 8306.00 |
| 3D Solar link |
