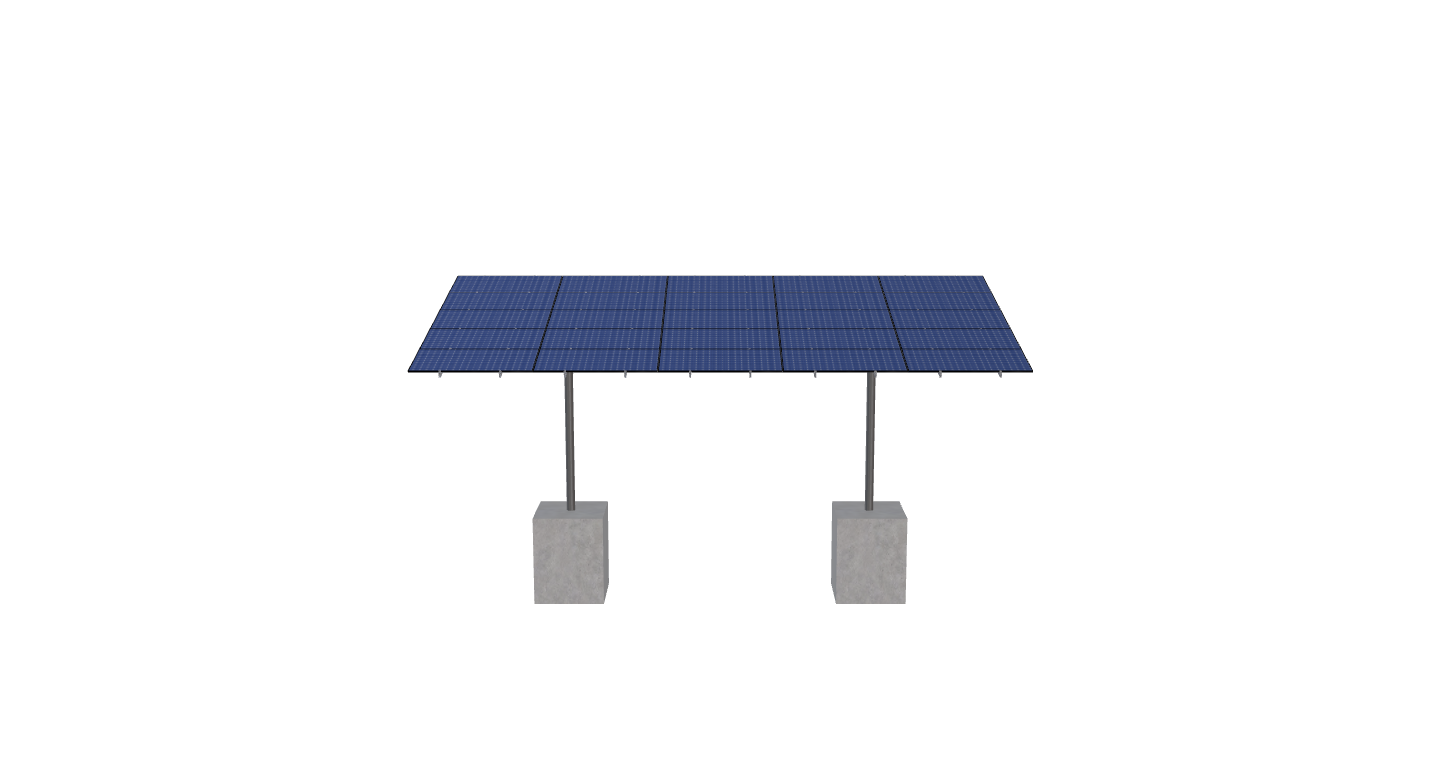

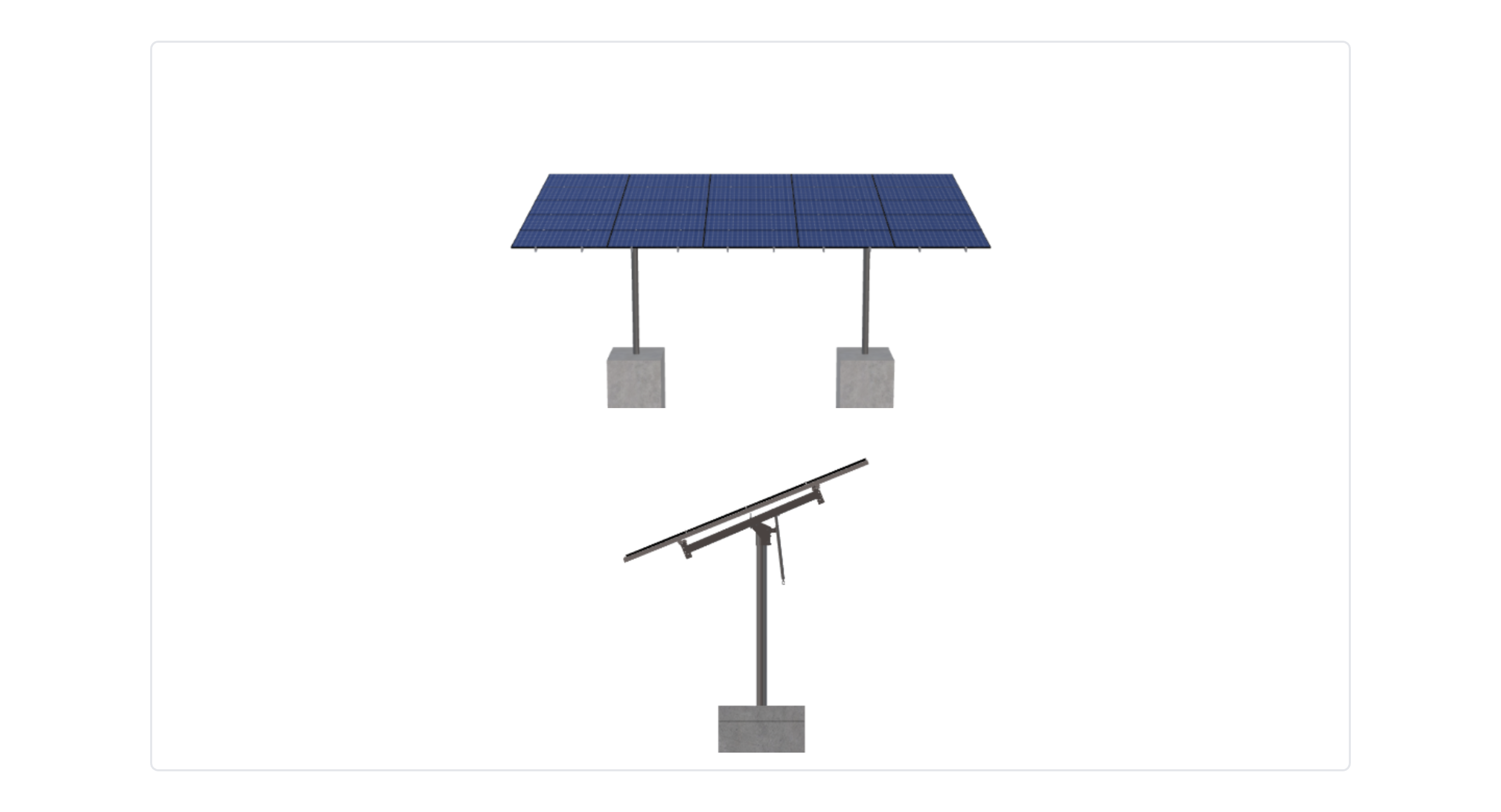

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.72 inches by 44.64 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_JH1L1LL08KFC-RevA-Jb
$11,089.14
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.72 inches by 44.64 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2235.8999999999996 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-XD-57-L-5HX5W-31G6 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.96 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 12.00 |
| CANTILEVER | 441.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 2.00 |
| MODULE AREA | 695.28 |
| ARRAY WIDTH | 36.97 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.70 |
| MODULE LENGTH | 87.72 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 36.75 |
| GROUND TO TOP | 13.89 |
| PROJECTED PANEL HEIGHT | 3.87 |
| PROJECT ID | MTSOLAR, JH1L1LL08KFC-REVA-JB |
| SITE ADDRESS | 75, GARDNER, RD, BROOKLINE, MA, 02445, USA |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 11089.14 |
| TOTAL WEIGHT | 2235.90 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b7704eca-b757-42ea-a694-c63090f259f6.pdf |
|
| ID | 5849.00 |
| 3D Solar link |
