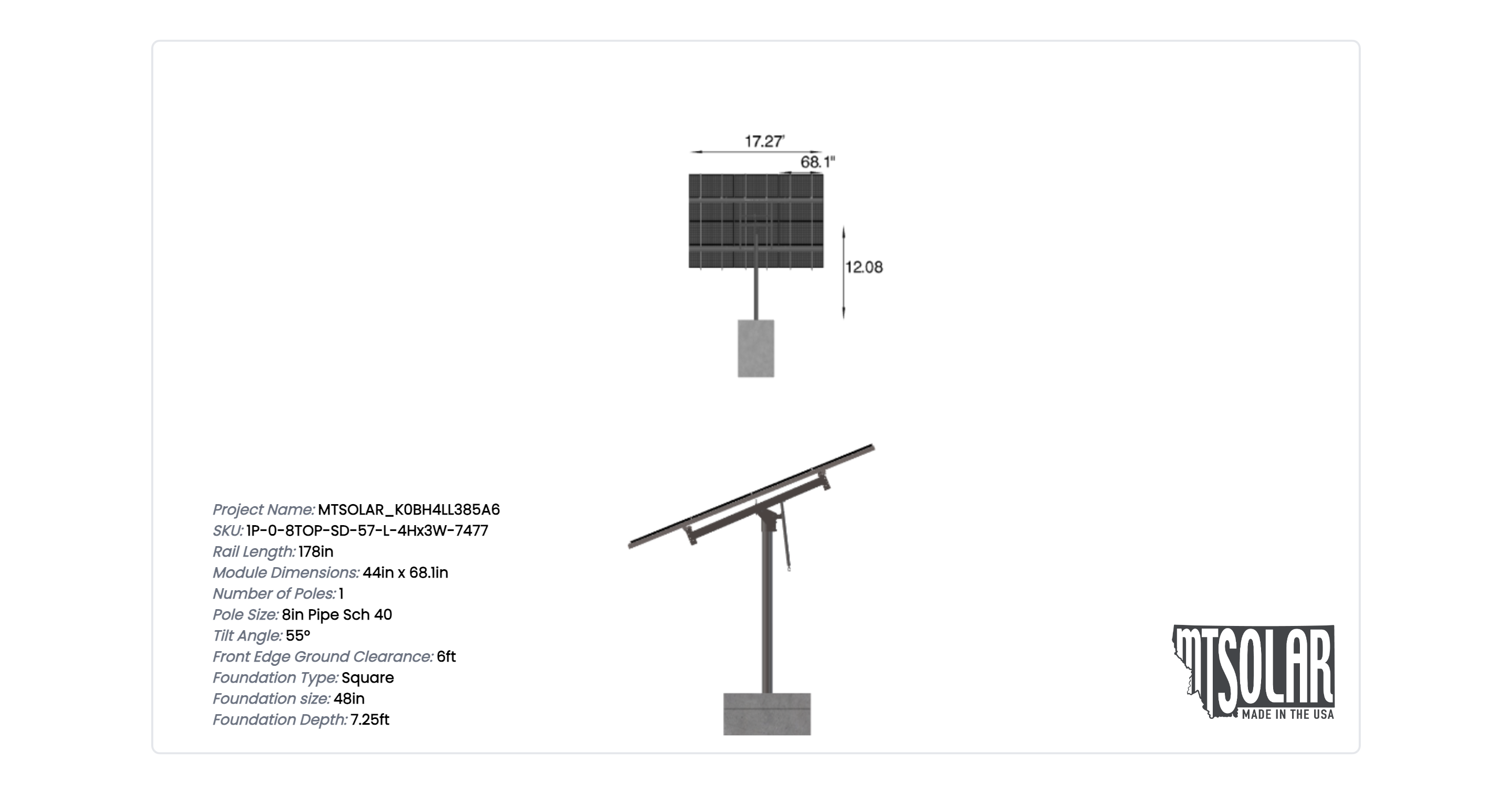

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.1 inches by 44 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

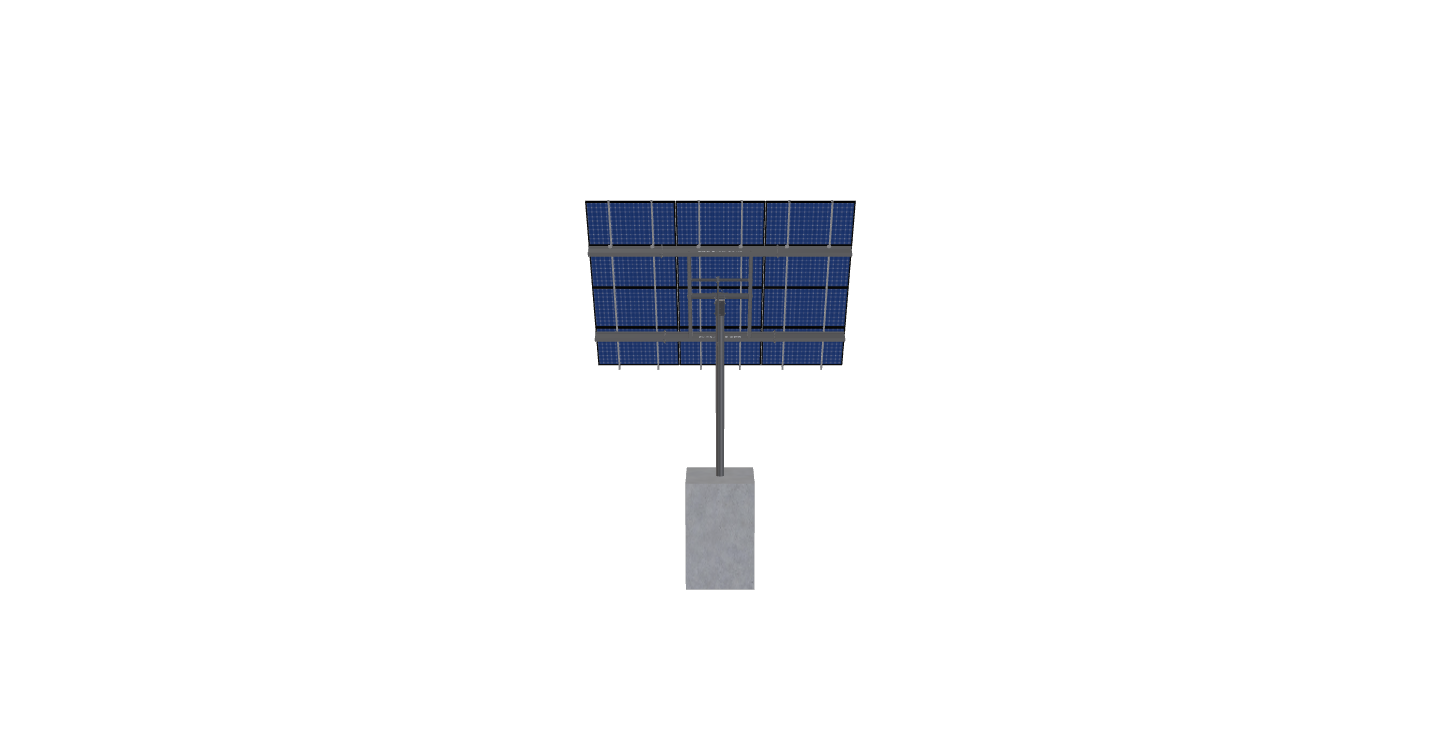

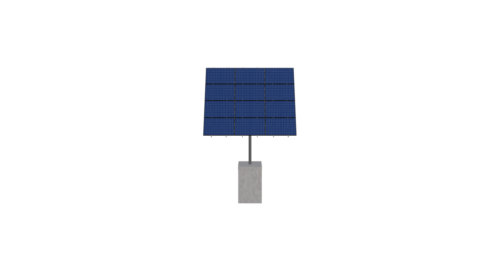

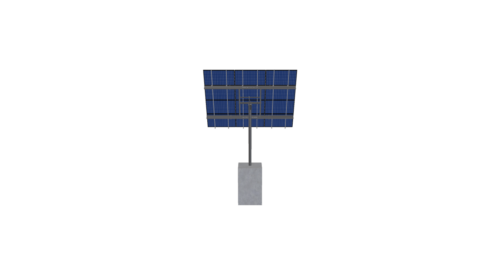

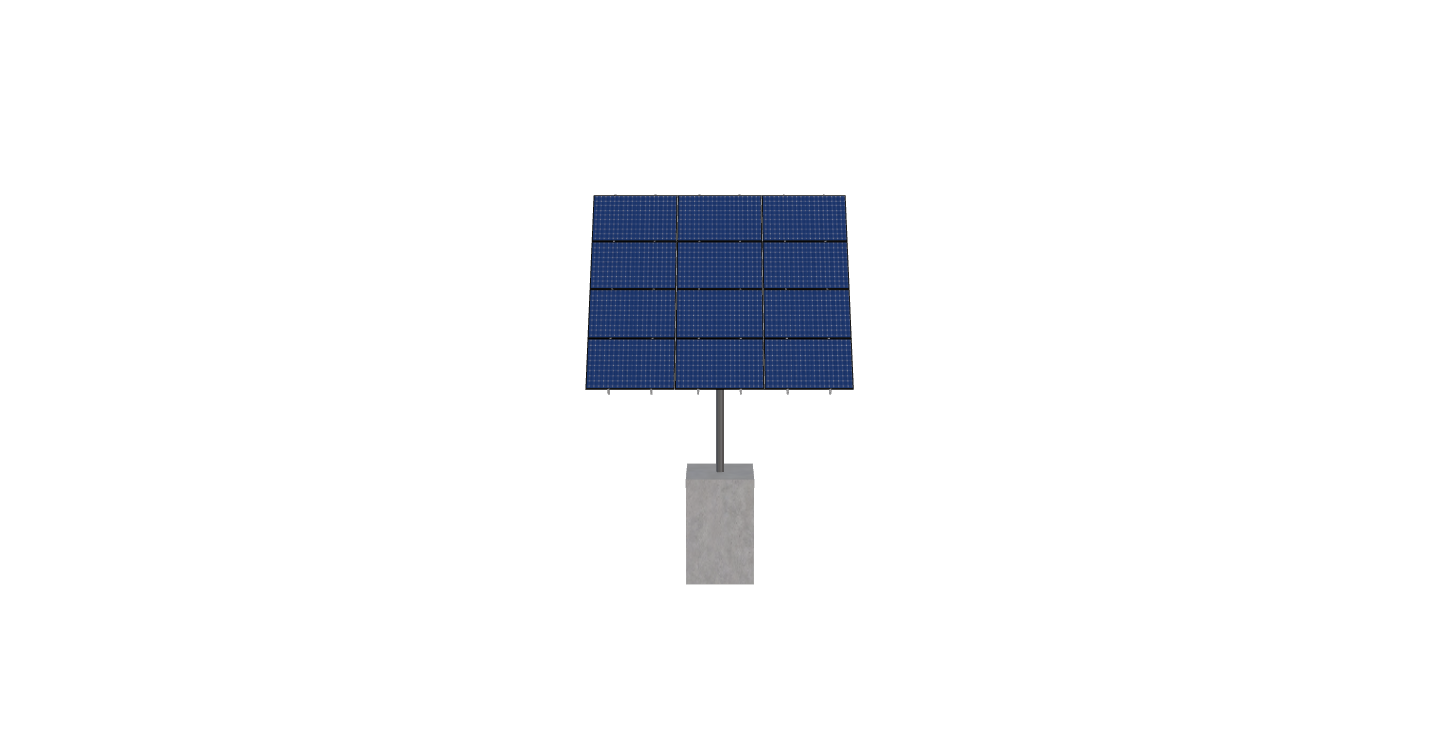

See 3D Model Here
MTSOLAR_K0BH4LL385A6
$4,074.11
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.1 inches by 44 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 714.66 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-8TOP-SD-57-L-4HX3W-7477 |
DUTY SIZE | SD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 12.08 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 7.25 |
TILT ANGLE | 55.00 |
CANTILEVER | 204.00 |
GROUND CLEARANCE | 6.00 |
NO POLES | 1.00 |
MODULE AREA | 256.25 |
ARRAY WIDTH | 17.27 |
ARRAY HEIGHT | 14.83 |
RAIL LENGTH | 178.00 |
MODULE LENGTH | 68.10 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 17.00 |
GROUND TO TOP | 18.08 |
PROJECTED PANEL HEIGHT | 12.01 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | MTSOLAR, K0BH4LL385A6 |
SITE ADDRESS | SKWENTNA, AK, 99667, USA |
MODULE WIDTH | 44.00 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 3.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 4074.11 |
TOTAL WEIGHT | 714.66 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/52a2cc9c-571e-4cef-a5c6-ecfeaf2209b9.pdf |
|
ID | 6261.00 |
3D Solar link |
