MTSOLAR_K7EEKH713HIB-RevA-JB

$11,742.19

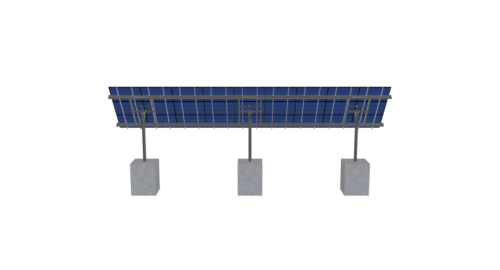

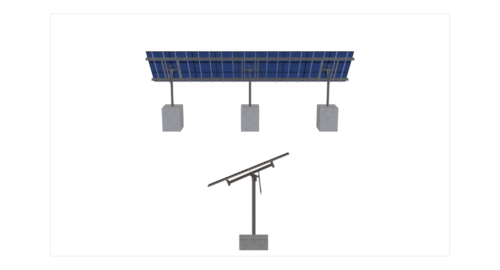

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67 inches by 45 inches and an array layout of 9 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-19.75-6TOP-SD-24-L-3Hx9W-LB8D Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67 inches by 45 inches and an array layout of 9 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2081.2799999999997 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-6TOP-SD-24-L-3HX9W-LB8D

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

9.36

WING SPAN

24.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

50.00

CANTILEVER

612.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

580.13

ARRAY WIDTH

51.00

ARRAY HEIGHT

11.38

RAIL LENGTH

136.50

MODULE LENGTH

67.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

51.00

GROUND TO TOP

13.67

PROJECTED PANEL HEIGHT

8.62

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

57.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, K7EEKH713HIB-REVA-JB

SITE ADDRESS

159, LINCOLN, ST, LANDER, WY, 82520, USA

MODULE WIDTH

45.00

NUMBER ROWS

3.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

11742.19

TOTAL WEIGHT

2081.28

TOTAL PALLETS

3.00
