MTSOLAR_K7FG8AEJ1I02

$19,563.77

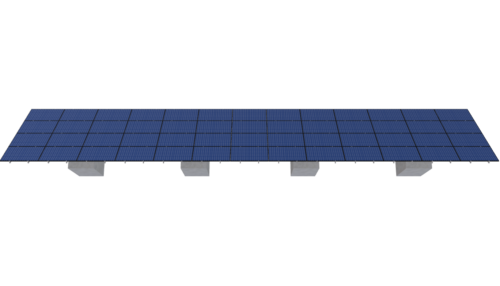

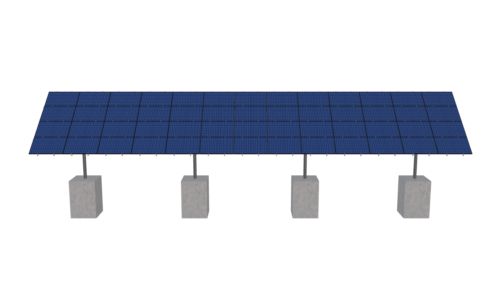

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 13 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-19.75-8TOP-HD-45-L-4Hx13W-5HD9 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 13 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3586.0400000000004 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-8TOP-HD-45-L-4HX13W-5HD9

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

9.84

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

40.00

CANTILEVER

891.00

GROUND CLEARANCE

5.00

NO POLES

4.00

MODULE AREA

1121.73

ARRAY WIDTH

74.53

ARRAY HEIGHT

15.05

RAIL LENGTH

180.60

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

74.25

GROUND TO TOP

14.62

PROJECTED PANEL HEIGHT

9.57

PROJECT ID

MTSOLAR, K7FG8AEJ1I02

SITE ADDRESS

1128, CO, RD, 65, EVERGREEN, CO, 80439, USA

MODULE WIDTH

44.65

NUMBER ROWS

4.00

NUMBER COLUMNS

13.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

130.00

SNOW LOAD OVERRIDE

42.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

19563.77

TOTAL WEIGHT

3586.04

TOTAL PALLETS

4.00
