This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_KLDB6JAJI0F4
$15,128.60
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2825.63 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

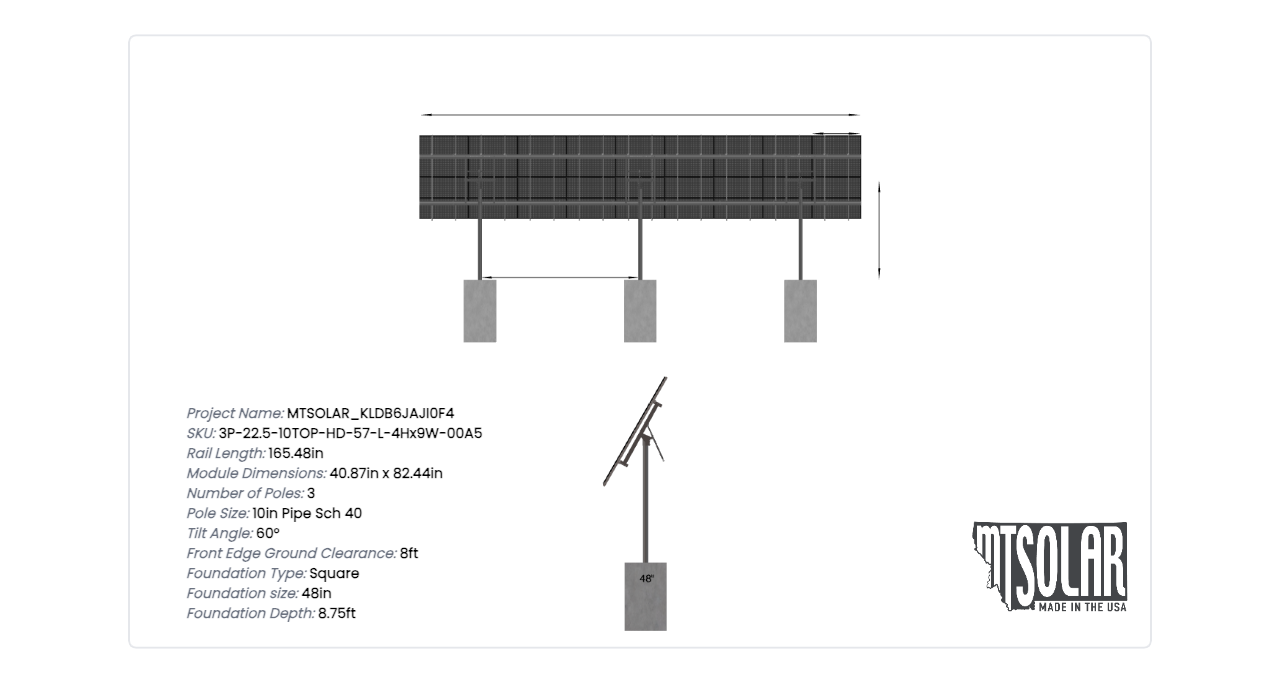

| SKU CODE | 3P-22.5-10TOP-HD-57-L-4HX9W-00A5 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 13.97 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 862.98 |
| ARRAY WIDTH | 62.58 |
| ARRAY HEIGHT | 13.79 |
| RAIL LENGTH | 165.48 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 19.87 |
| PROJECTED PANEL HEIGHT | 11.80 |
| PROJECT ID | MTSOLAR, KLDB6JAJI0F4 |
| SITE ADDRESS | 11, DOAK, RD, GOLDENDALE, WA, 98620, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 85.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15128.60 |
| TOTAL WEIGHT | 2825.63 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/42e7f66f-bbc2-44db-84c3-140ac55aa90e.pdf |
|
| ID | 4923.00 |
| 3D Solar link |
